• Replaces Honeywell V4043H: Like for like swap for a V4043H or V4043H1056 zone valve, matching its dimensions, spindle pattern and wiring
• S Plan single zone control: Two port design switches one heating or hot water circuit, with one valve per zone in a standard S Plan layout
• Powerhead included: Supplied complete with the motorised actuator fitted, so the valve arrives ready to wire in without buying a head separately

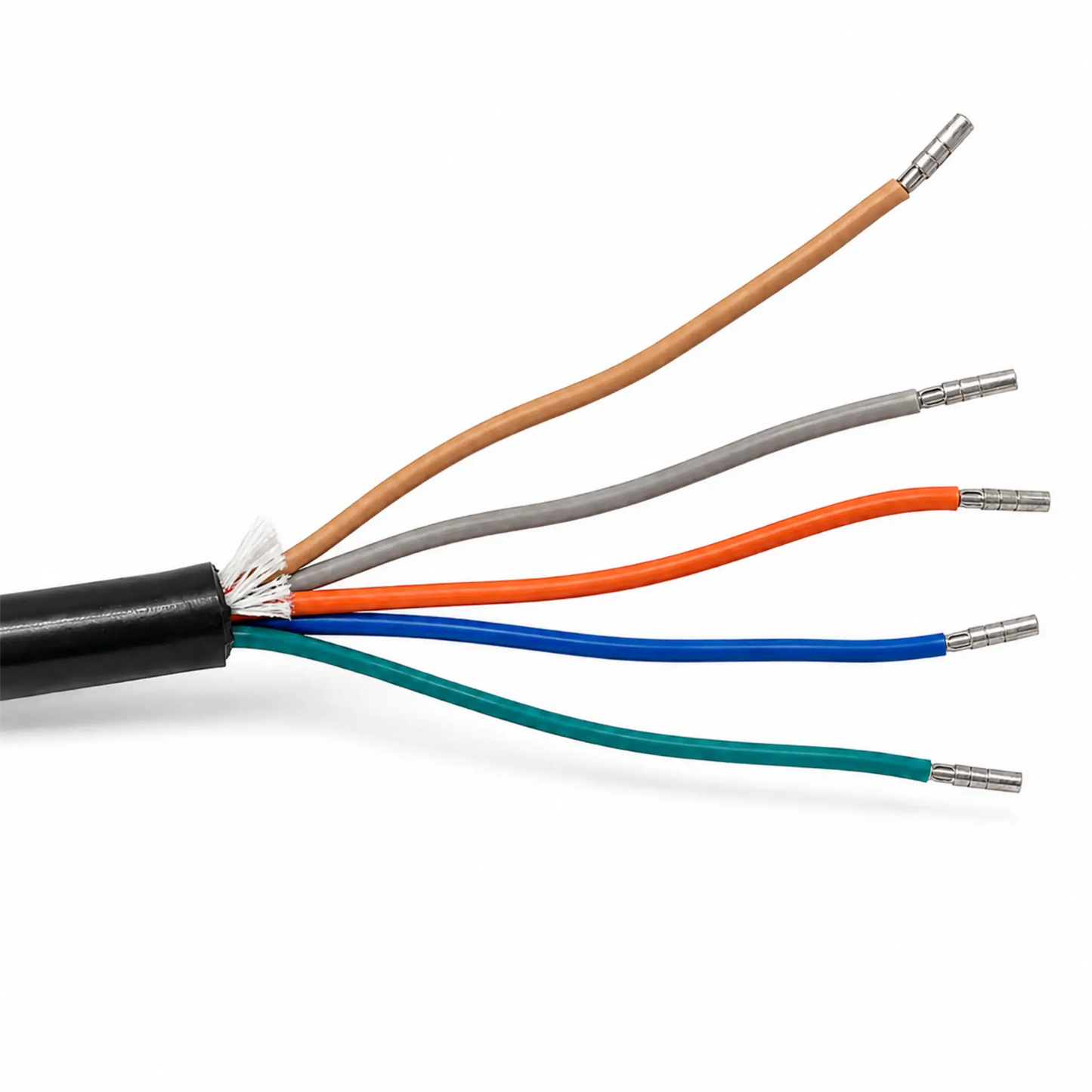

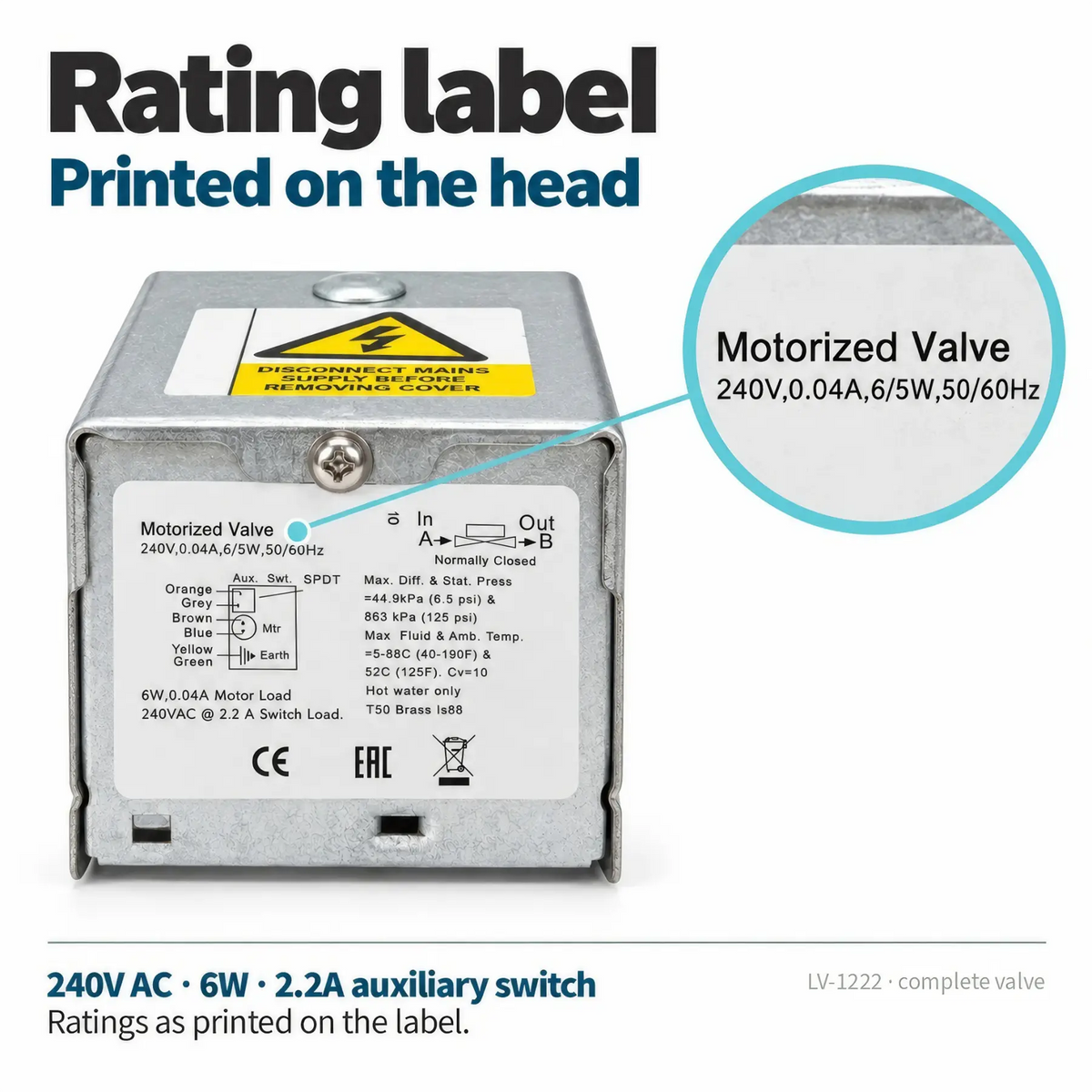

• Boiler and pump switching: Runs from a 230 V AC supply and carries an auxiliary switch that fires the boiler and pump once the valve is fully open
• Manual lever: Holds the valve open by hand for filling, venting or commissioning, then releases back to automatic operation
• Spring return: Drives the valve closed as soon as the actuator is de-energised, so the circuit shuts off when the call for heat ends

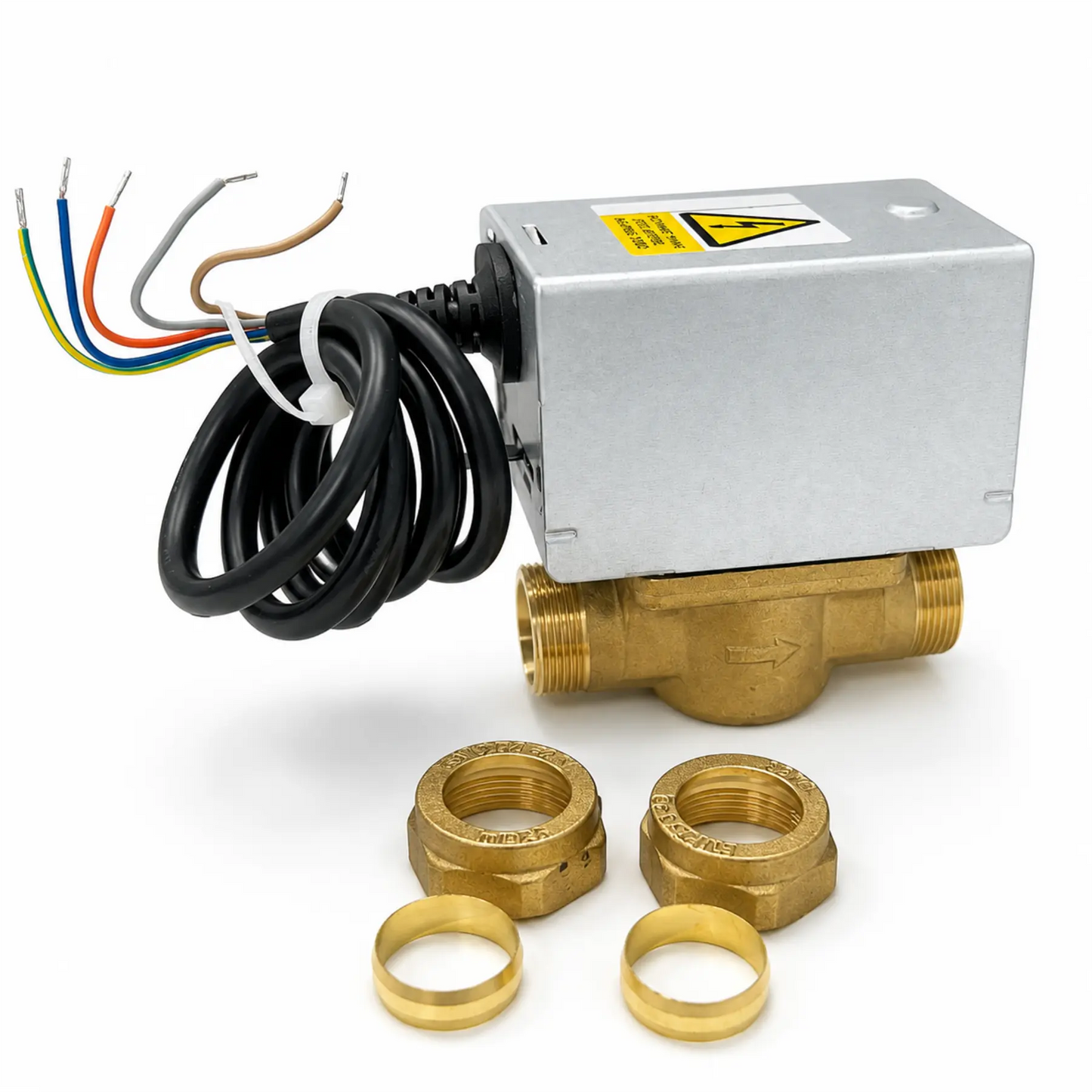

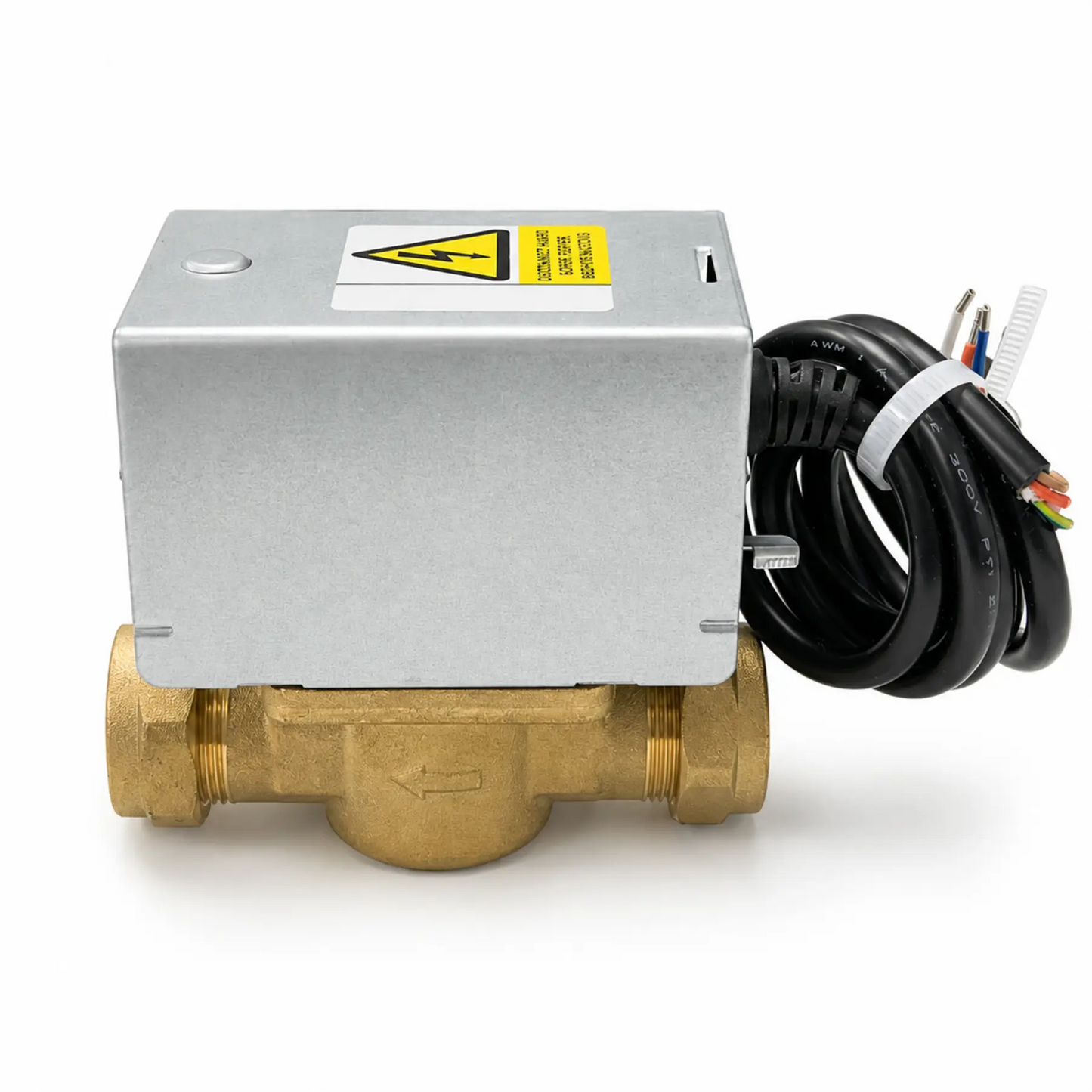

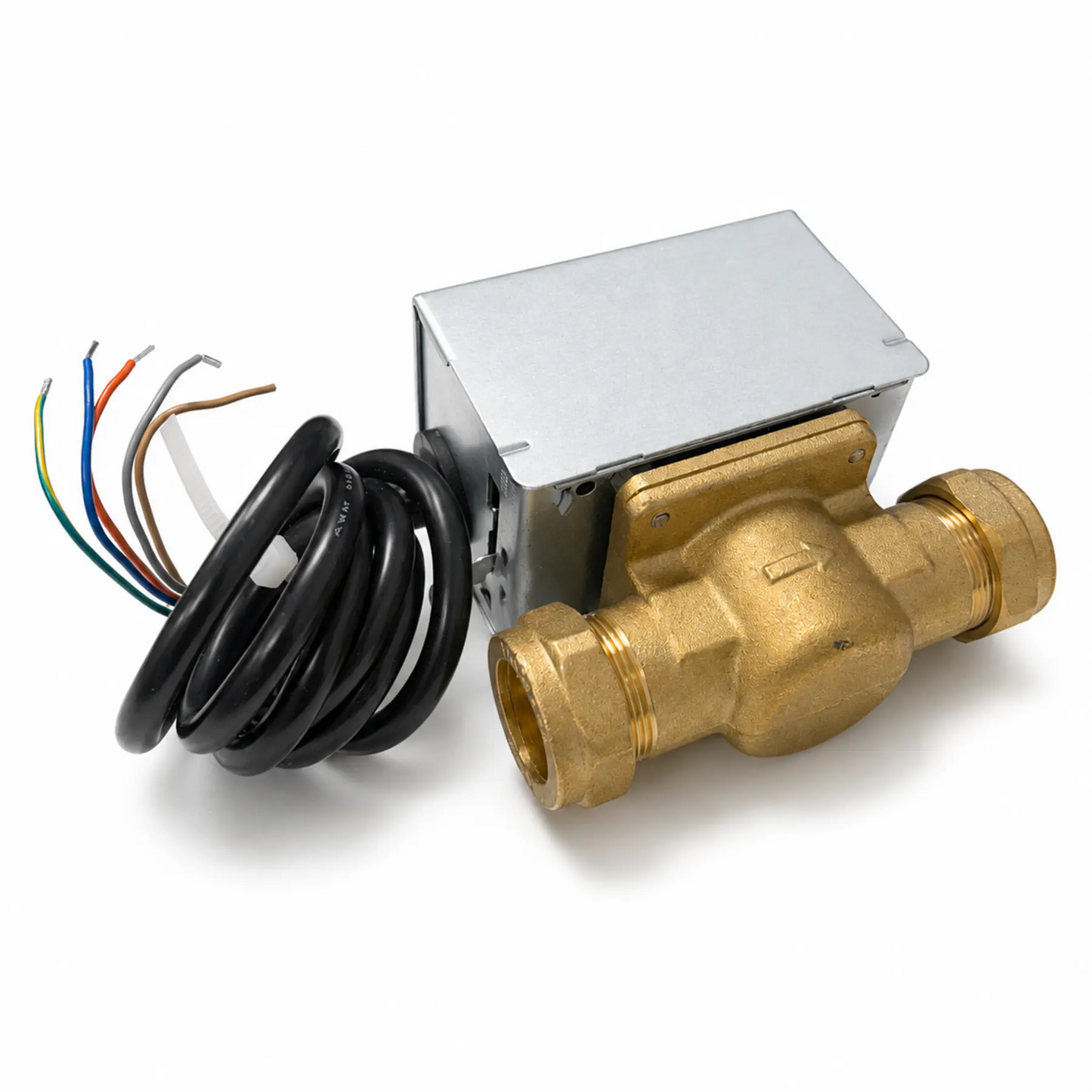

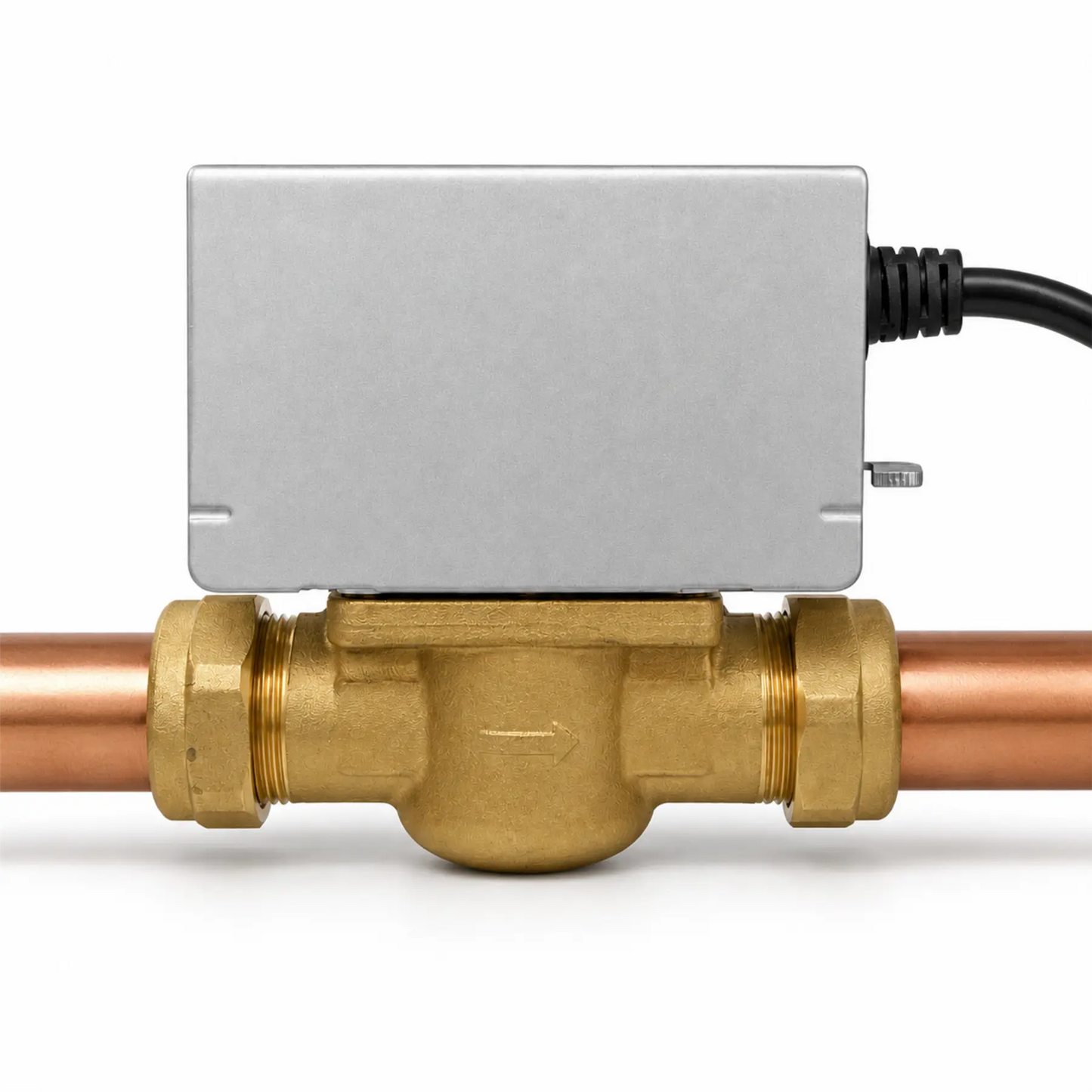

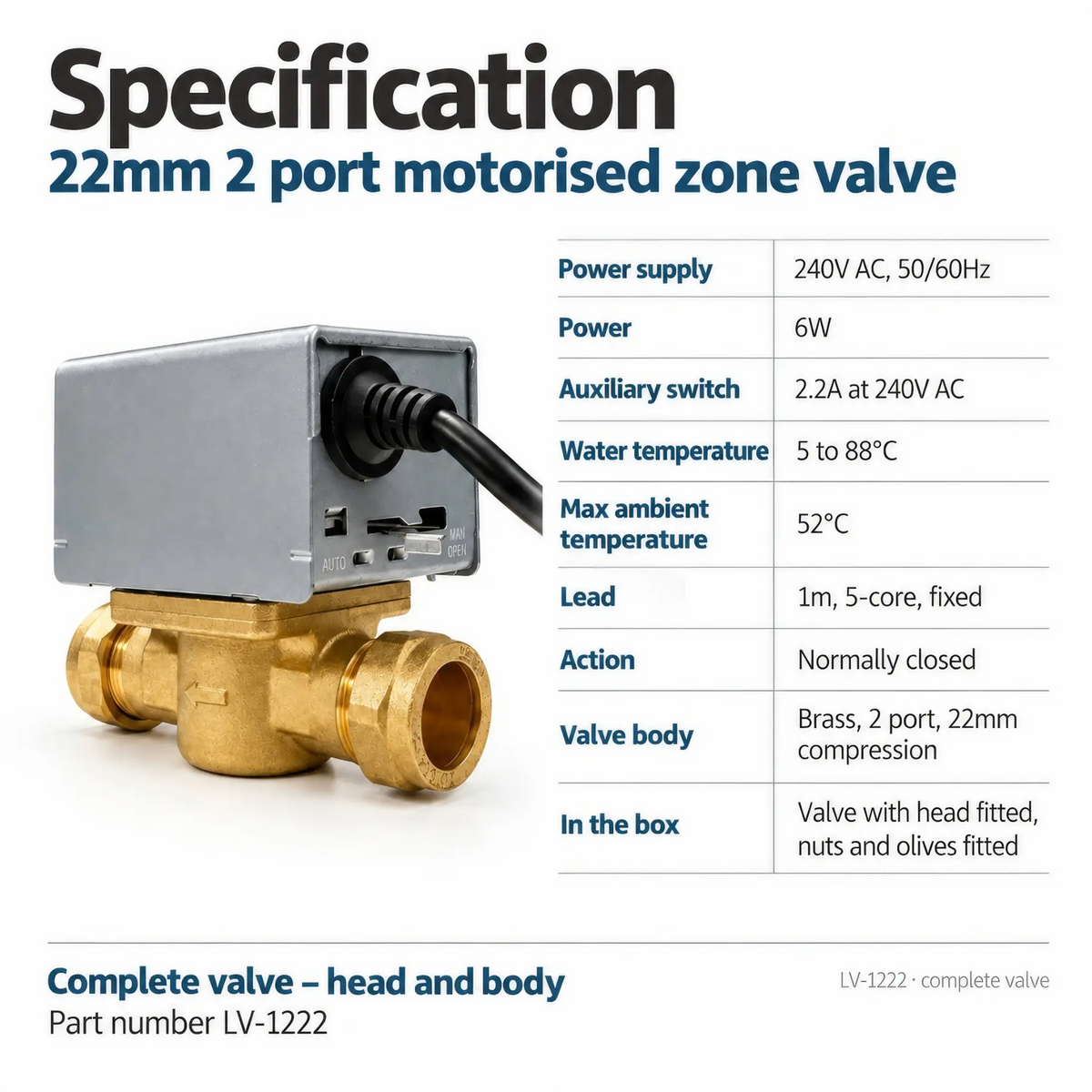

The LavaTherm 2 Port Motorised Zone Valve is a 22 mm two port valve for controlling a single heating or hot water circuit in a domestic wet central heating system. It is the standard building block of an S Plan layout, where one valve serves the radiator circuit and a second serves the hot water cylinder, each opened independently by its own room thermostat or cylinder stat.

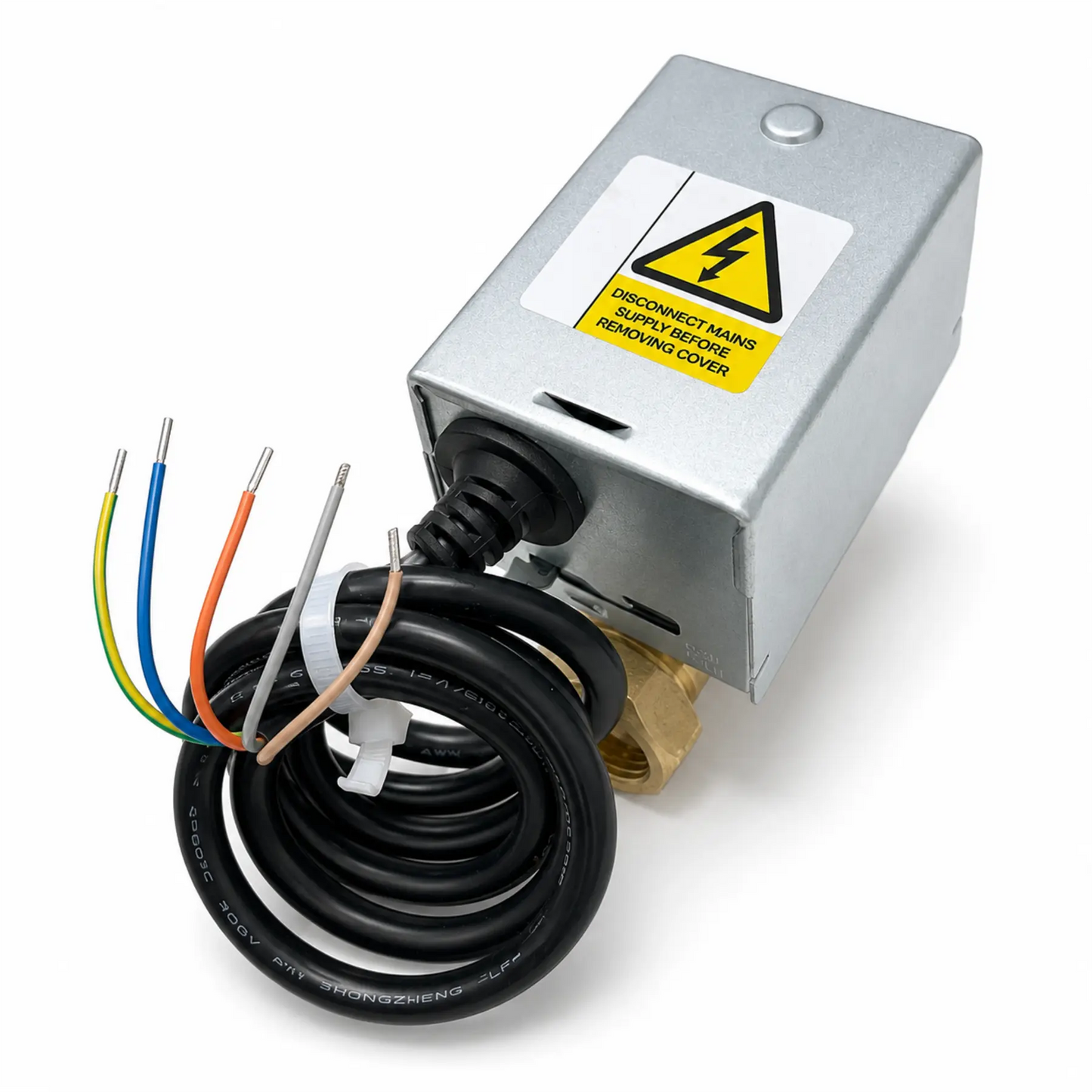

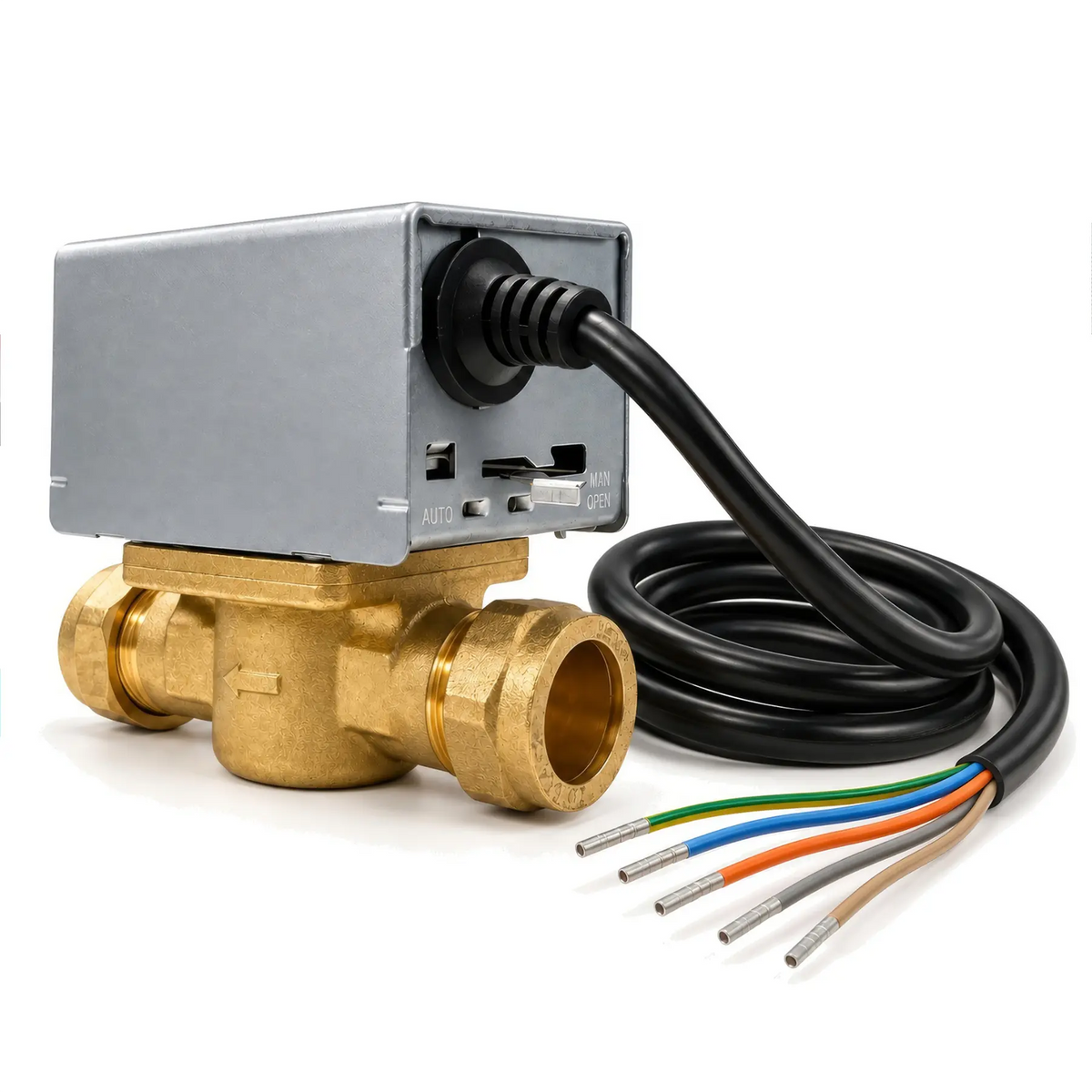

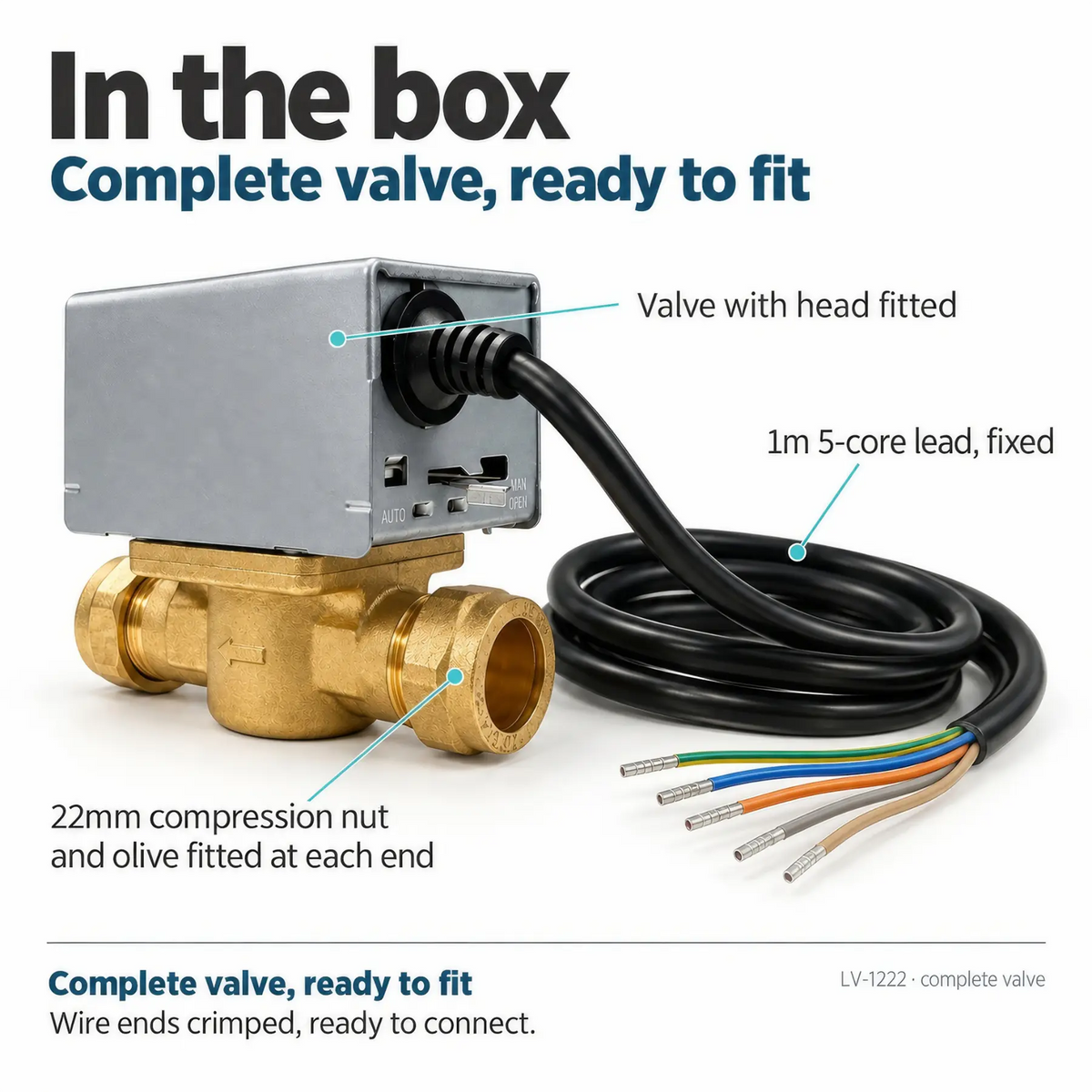

The valve is supplied complete with its 230 V AC motorised actuator head already fitted, so there is no need to buy a head separately. When the actuator is energised the motor drives the valve open against a return spring. Once the valve reaches the fully open position an auxiliary switch makes, passing a switched live on to fire the boiler and run the pump. When the call for heat is satisfied the actuator is de-energised and the spring returns the valve to the closed position, isolating the circuit.

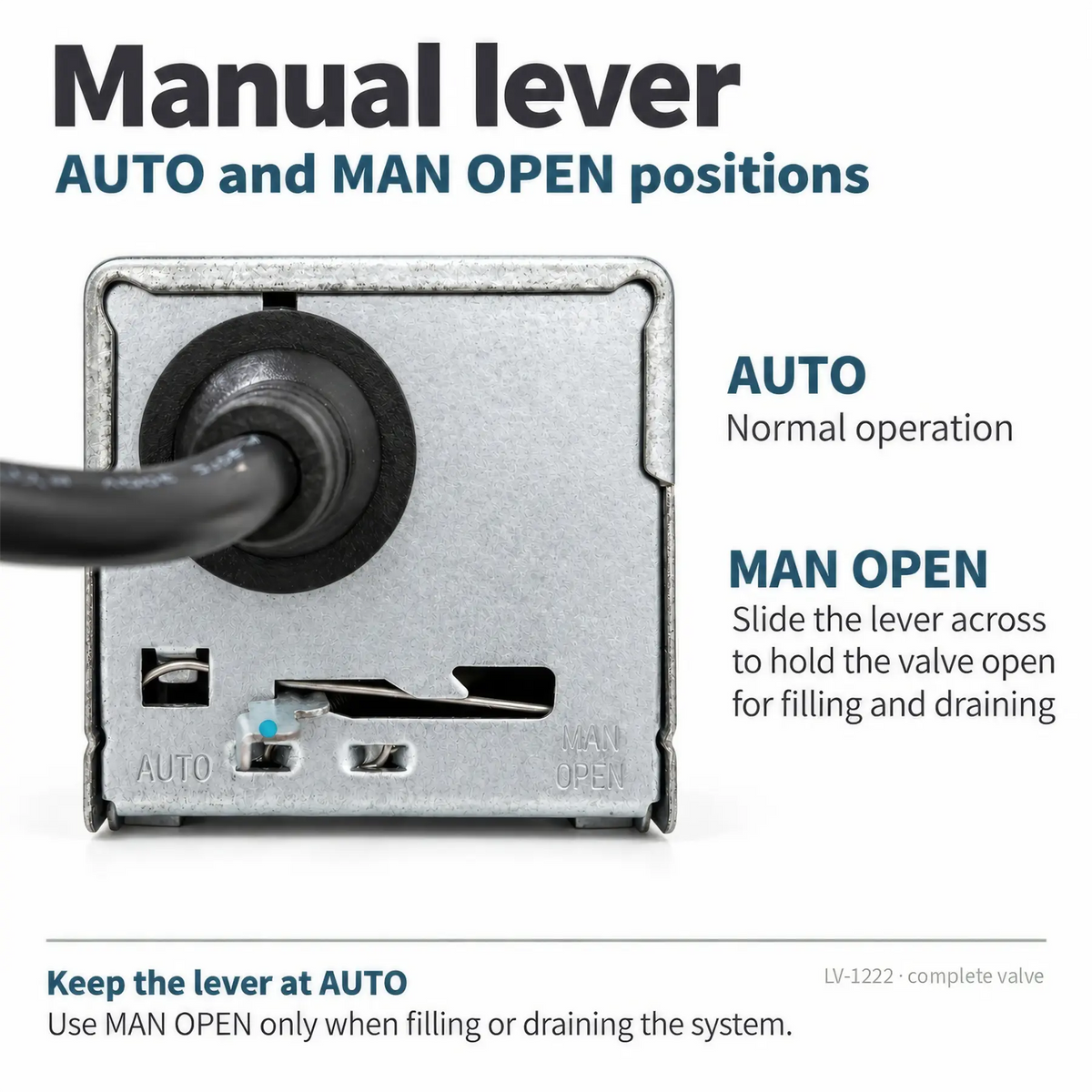

A manual lever on the head allows the valve to be held open by hand for filling, venting or commissioning, releasing back to automatic operation afterwards.

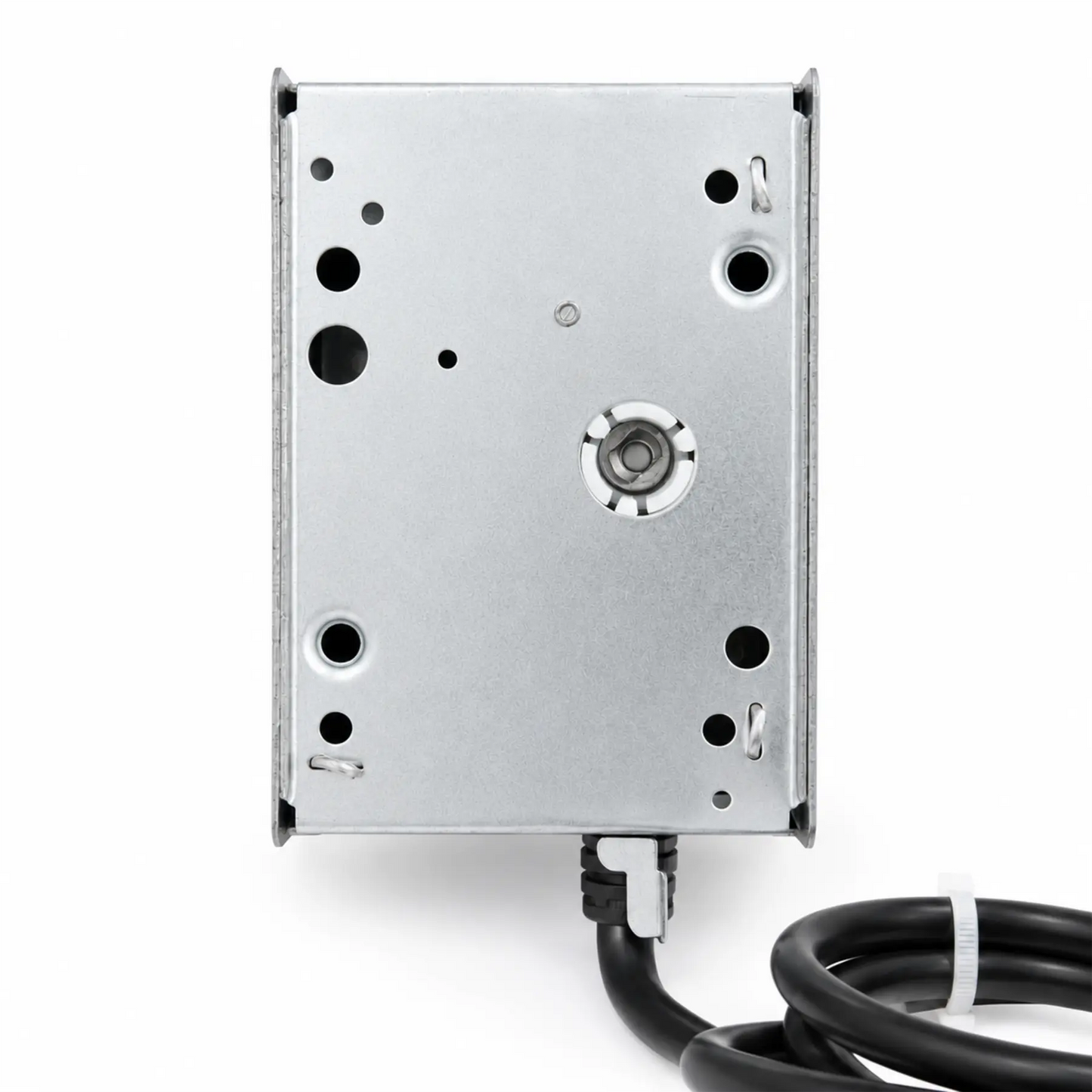

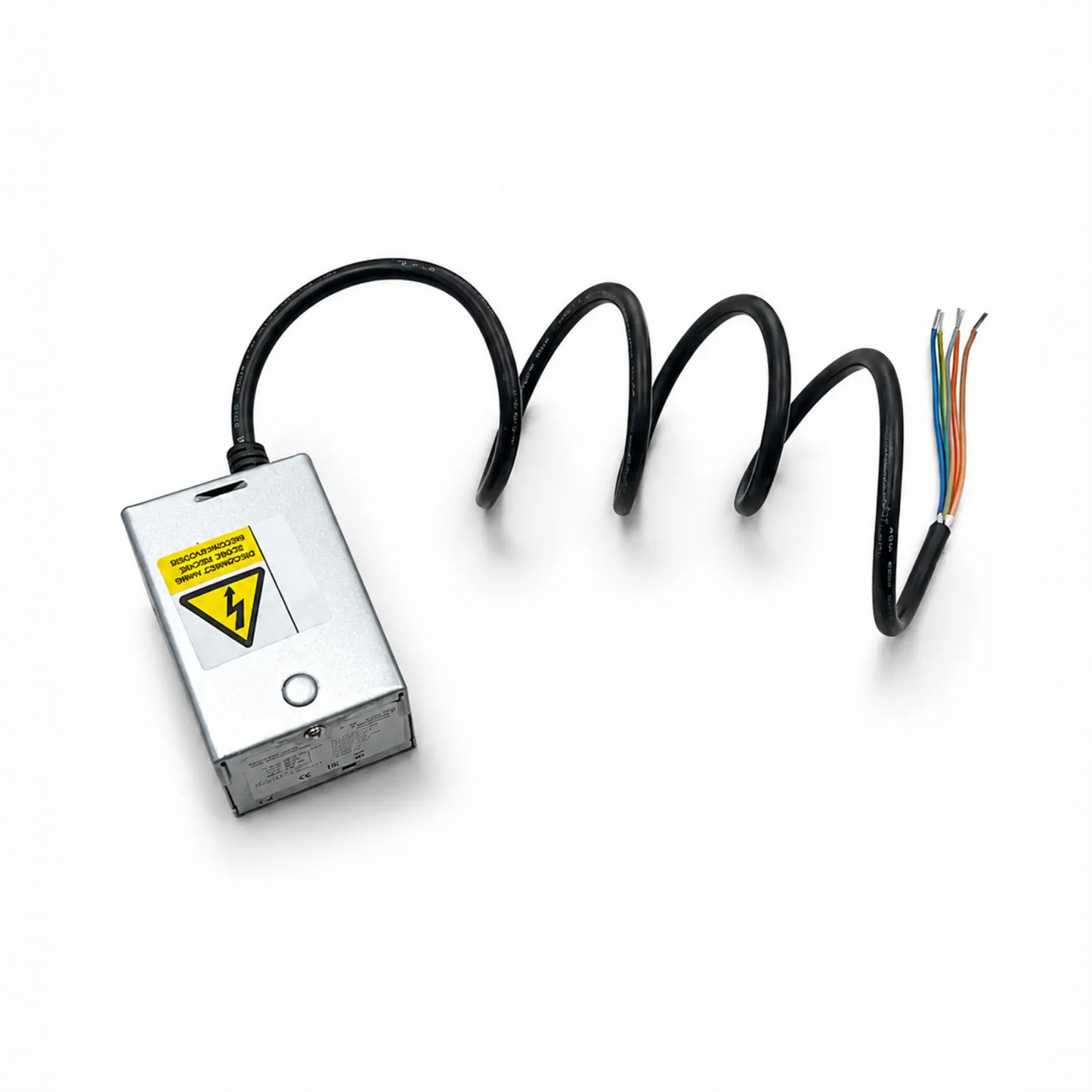

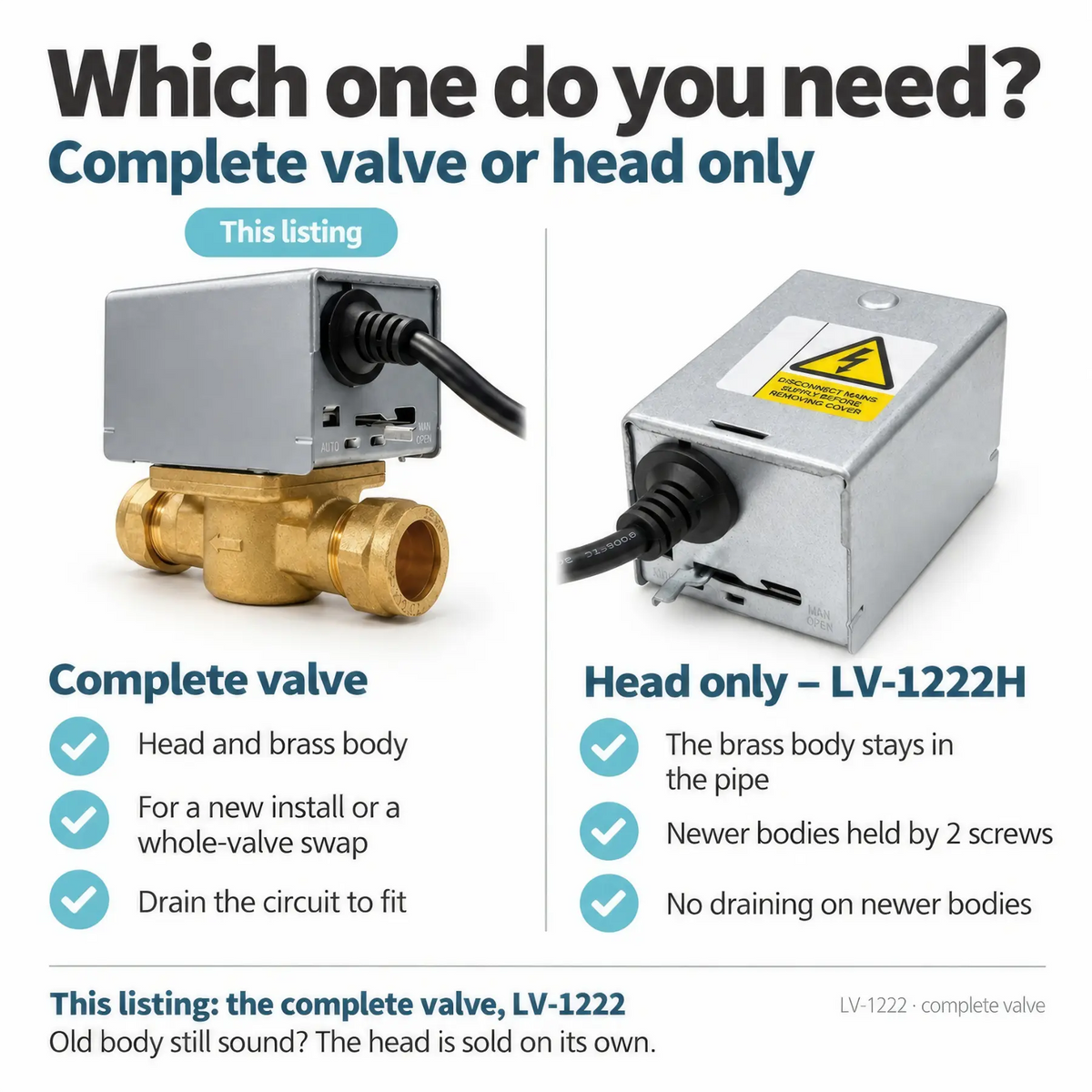

The actuator head is a separate assembly held on the valve body by two screws. If the head ever fails it can be replaced on its own, without draining the system down or disturbing the soldered or compression joints in the pipework. Replacement LavaTherm actuator heads are available separately.

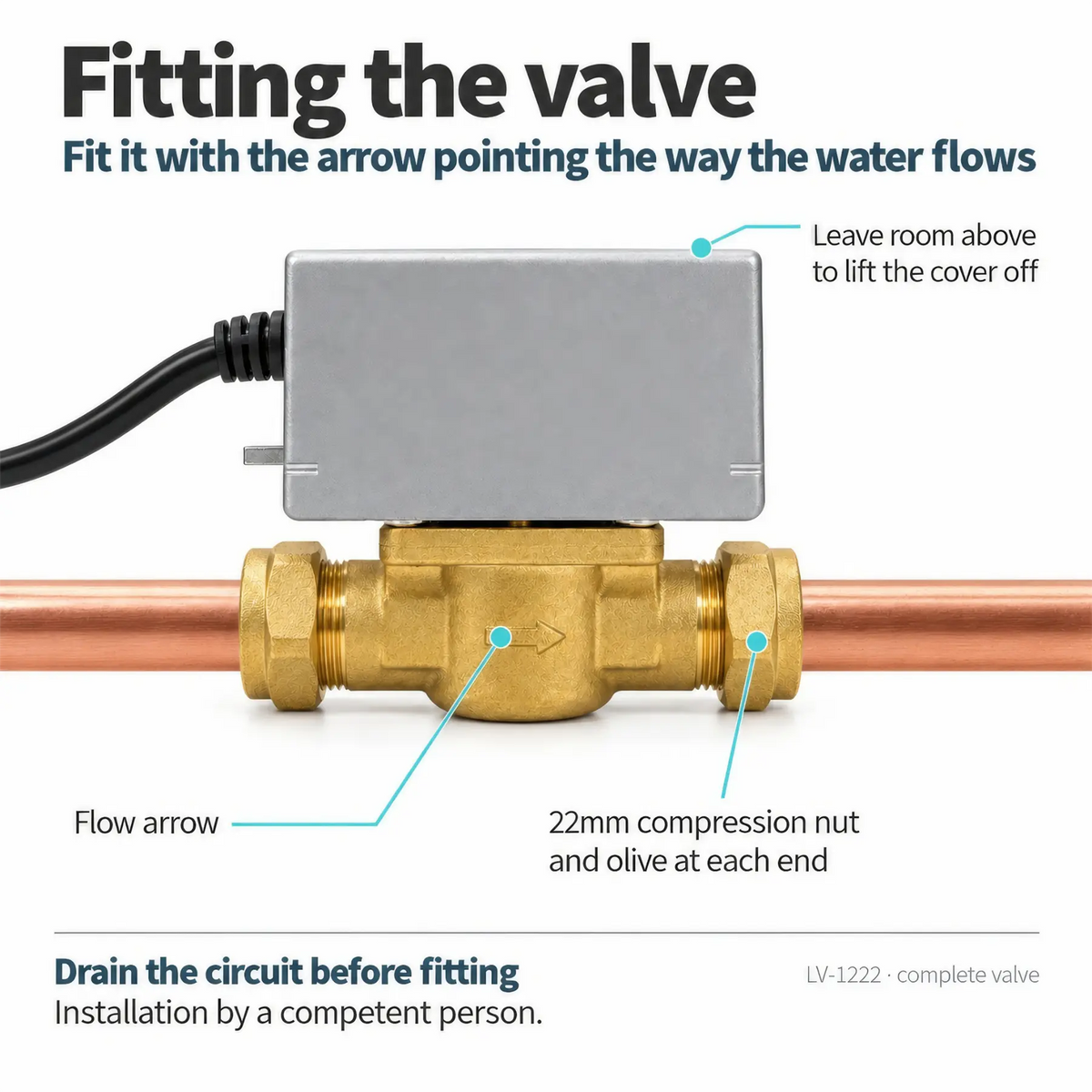

Suitable for installation by a competent heating engineer. All electrical work must be carried out in accordance with current wiring regulations.

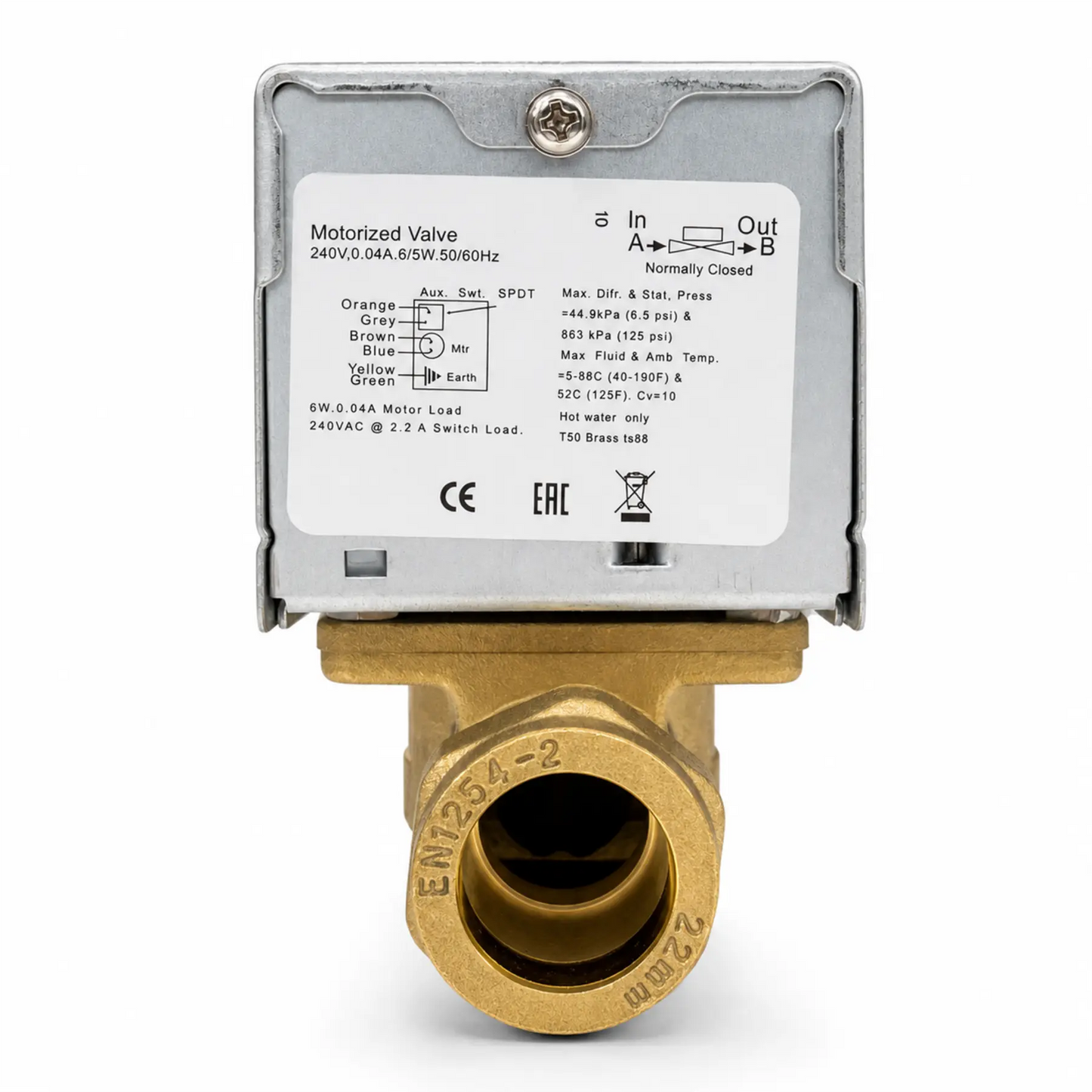

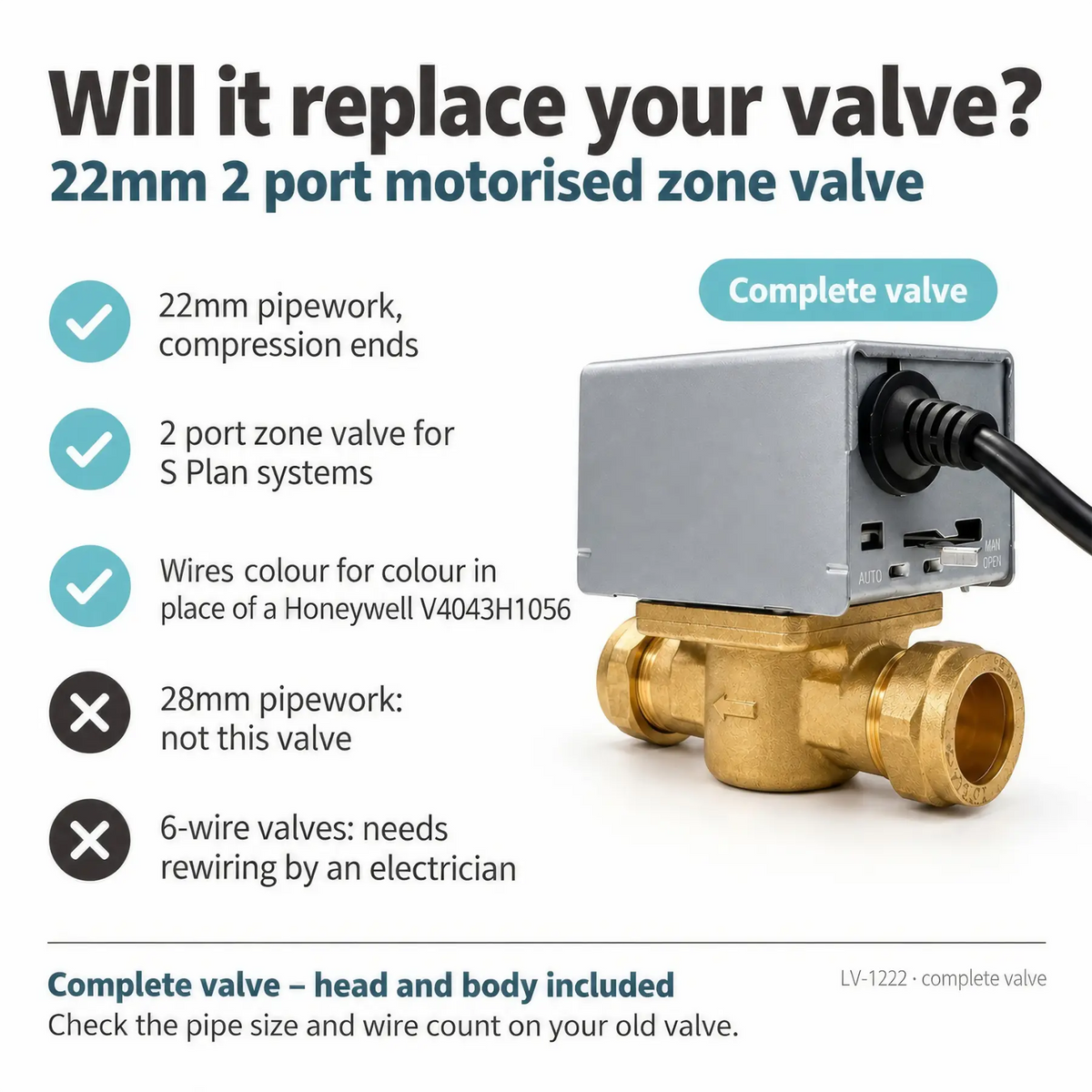

This valve is a like for like replacement for a Honeywell V4043H two port zone valve. It matches the original on body dimensions, spindle pattern and wiring, so it fits the same position in the pipework and connects to the same wiring centre terminals.

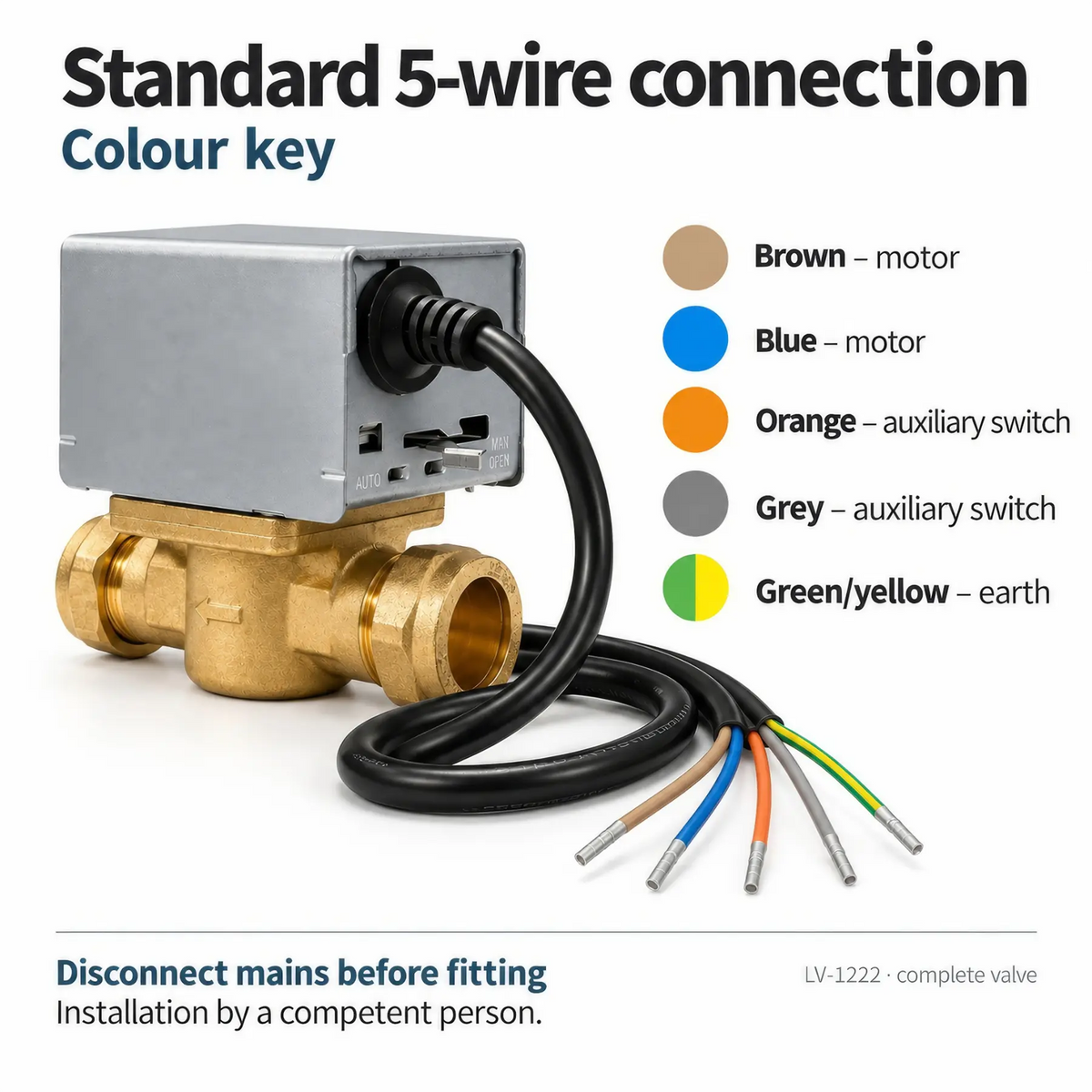

Because the valve wires terminal for terminal into a standard S Plan wiring centre and matches the V4043H footprint, it fits straight into the space and wiring left by the old valve, keeping the repair quick and predictable.
