• Eight-Zone Hydronic Control: Supports direct connection of up to 8 independent 230V on/off thermostats, each switching a dedicated output rated 230V 3A; accommodates up to 4 thermal actuators per zone, providing flexible manifold design for large-scale underfloor heating systems
• Centralised Pump, Valve, and Boiler Integration: Includes switched 230V outputs for manifold circulation pump and 2-port UFH valve (each 3A max), plus a volt-free relay output (LS/LR/E) for boiler enable, ensuring full compatibility with modern system boilers and pump interlock logic
• Dual Time Channel Bus: Two 230V time channel inputs allow grouped scheduling via external programmers (e.g. Heatmiser TM4), enabling parallel time control for different sets of zones or heating areas
• Zone 8 Radiator/Towel Rail Isolation: Dedicated slide switch allows Zone 8 to operate in radiator mode enabling boiler call independently of UFH pump and valves. Suitable for mixed underfloor/radiator configurations and towel rail integration
• Diagnostic and Safety Features: Neon status indicators for all zones and outputs facilitate rapid commissioning and troubleshooting; enclosure includes internal 5A anti-surge fuse, all outputs rated 3A, and clear terminal labelling to meet professional installation standards
• Professional Build, Mounting, and Compliance: DIN rail or surface mountable, compact IP20 enclosure (384 × 148 × 60 mm); designed for use with Heatmiser and compatible third-party 230V thermostats and actuators. All installation to be carried out by a qualified electrician in accordance with BS7671 and manufacturer��s instructions

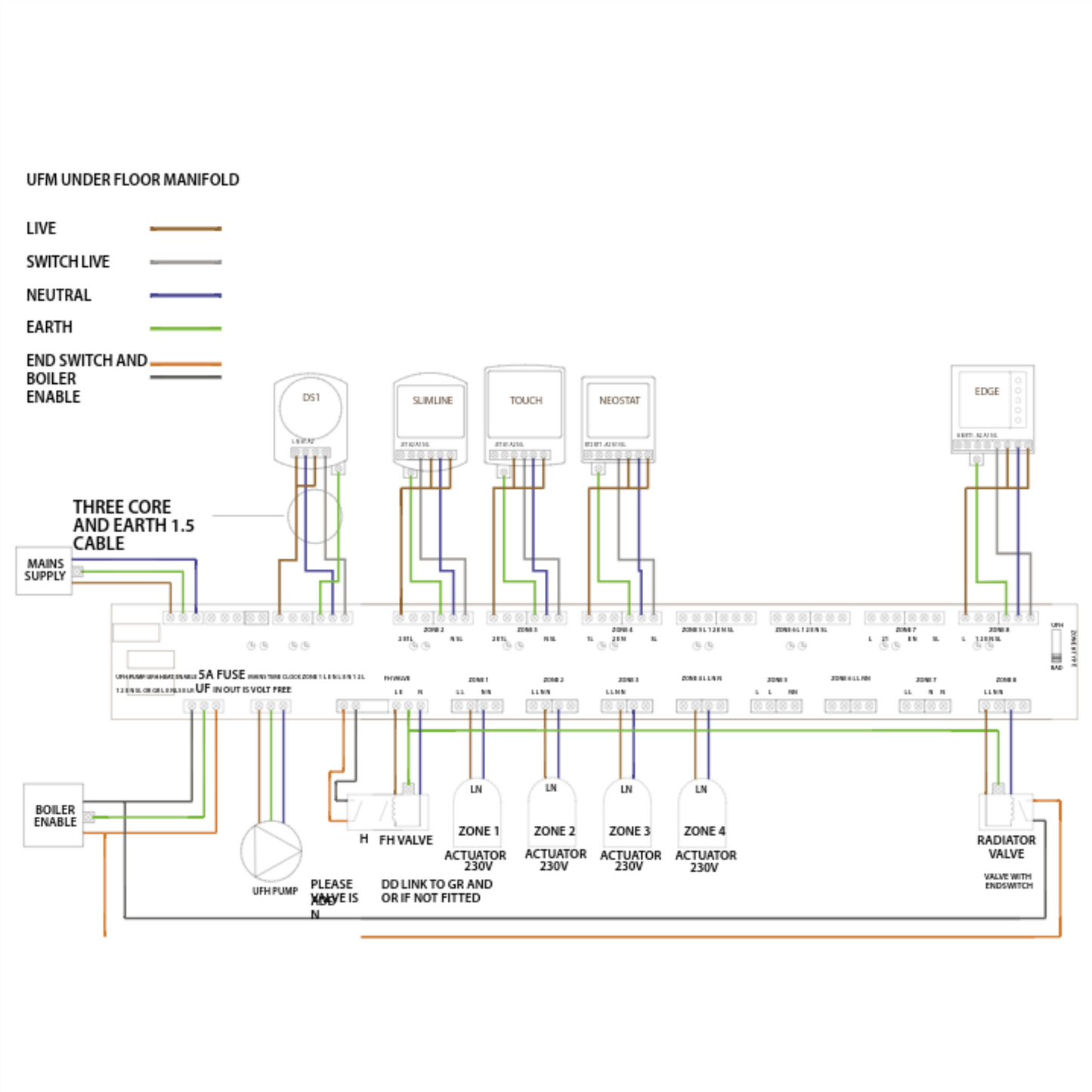

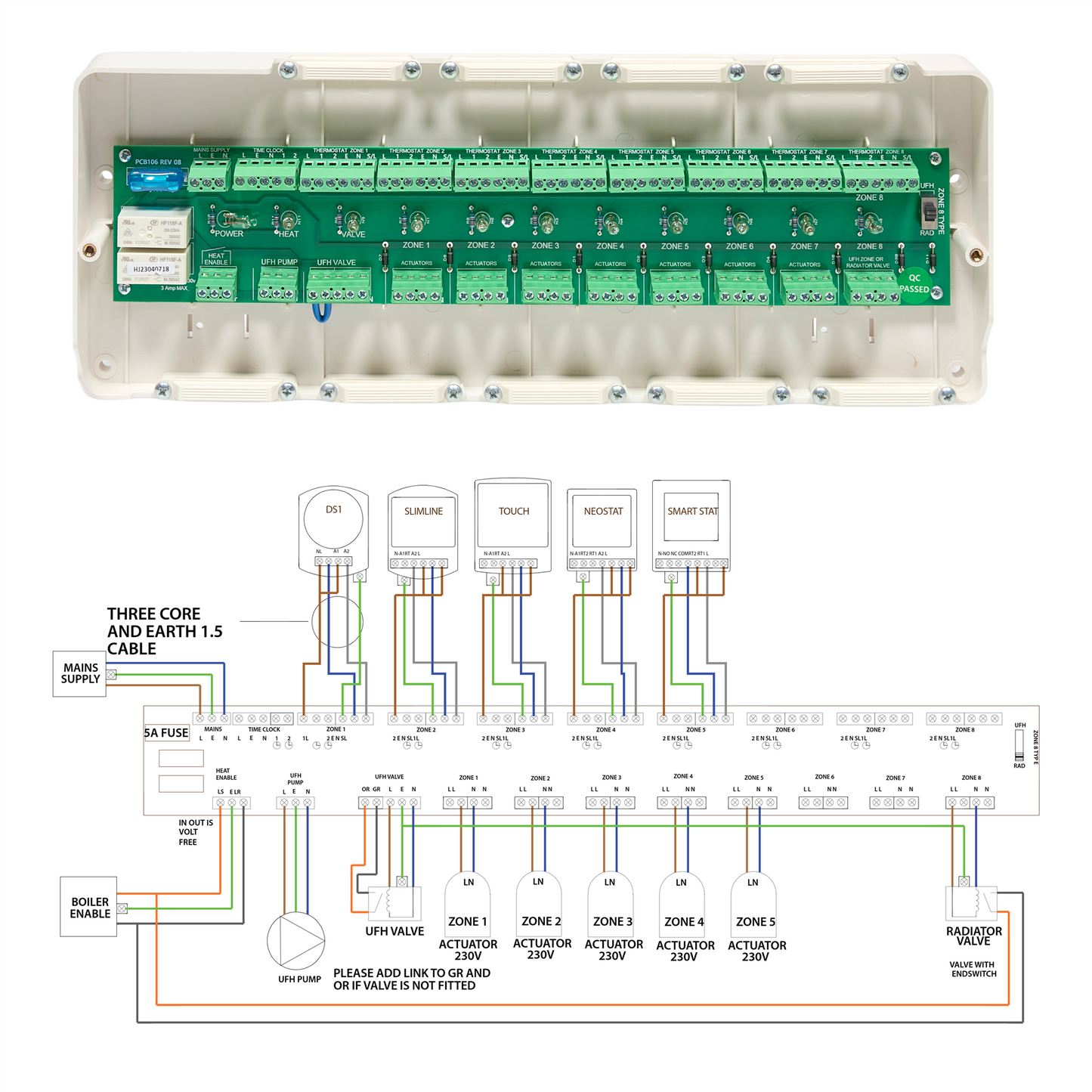

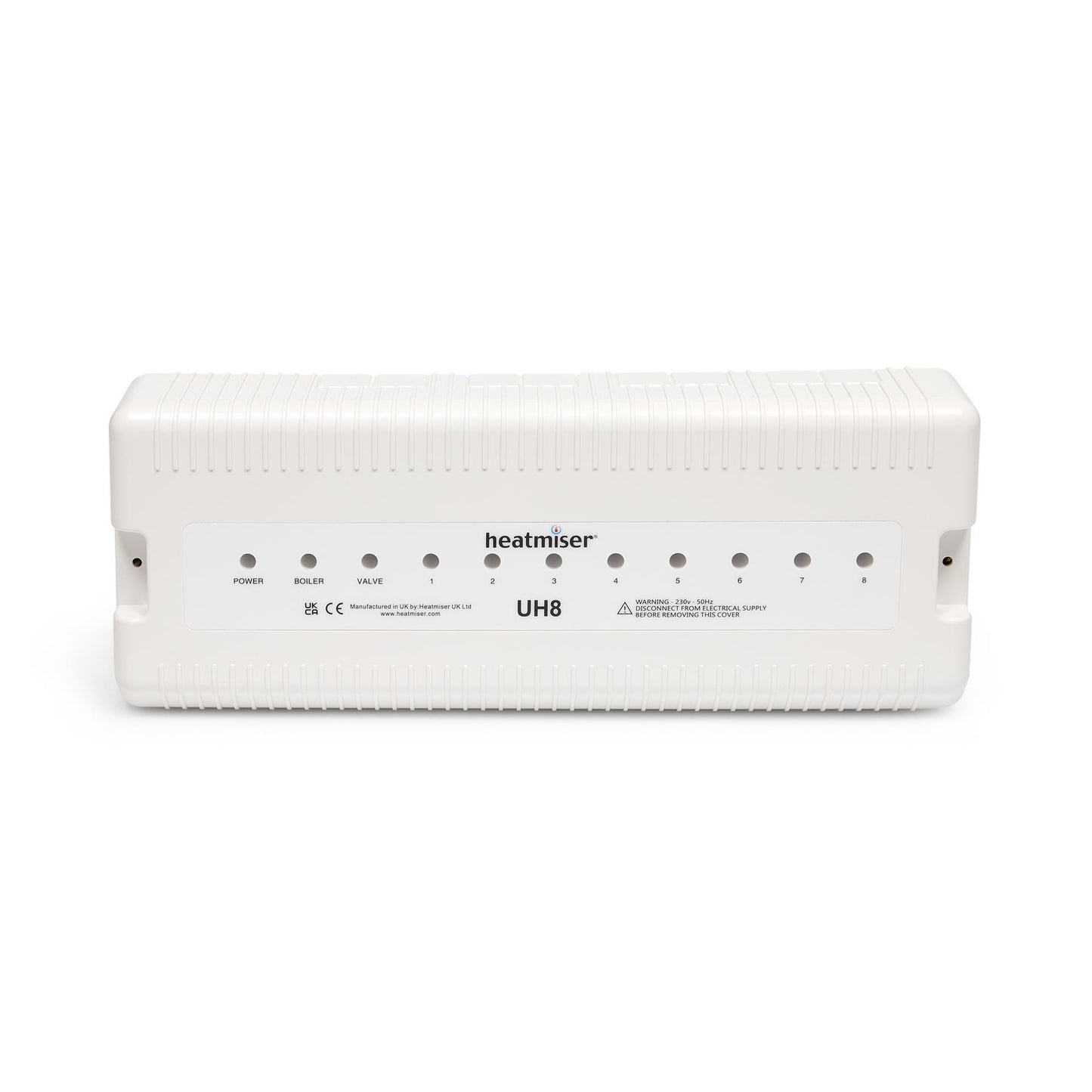

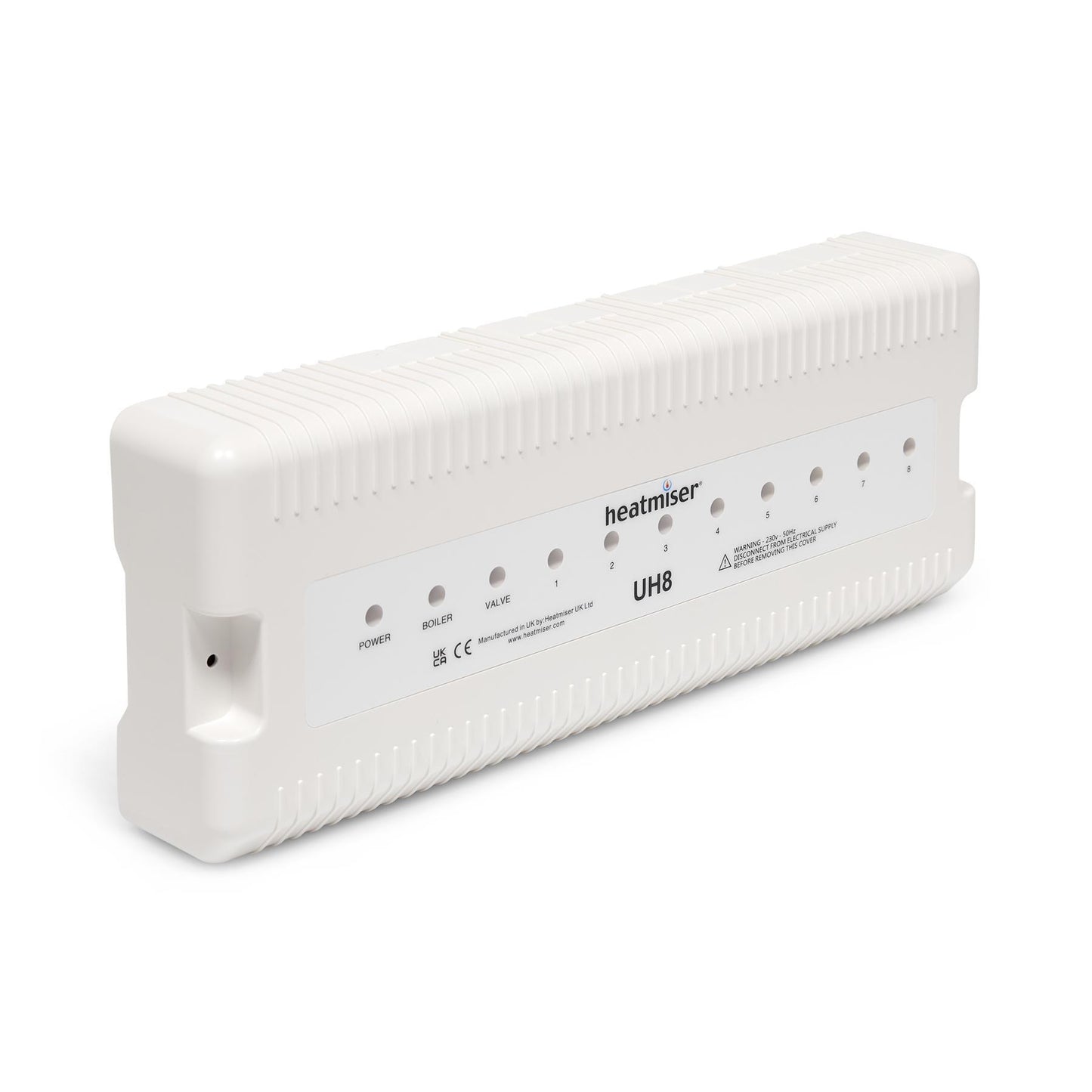

The Heatmiser UH8 230V 8-Zone Wiring Centre is an advanced control panel engineered for hydronic underfloor heating systems and mixed heating installations in residential and commercial environments. Designed for professional installers, the UH8 centralises and simplifies the wiring for up to eight independent 230V thermostat zones, providing a structured and highly reliable interface between multiple room thermostats, thermal actuators, manifold circulation pump, manifold valve, and boiler or heat source.

All eight zones are independently switched, with each output rated at 230V 3A (supporting up to four thermal actuators per zone) and protected by an internal 5A anti-surge fuse. The UH8 includes dedicated relay outputs for the underfloor heating pump and manifold valve (each 230V 3A), as well as a volt-free boiler enable relay (LS/LR/E) for safe and universal integration with most system boilers or other heat sources.

For advanced scheduling and grouped control, the UH8 supports dual 230V time channel bus integration—allowing installers to connect up to two independent timeclock programs (e.g. Heatmiser TM4 or similar) for flexible group scheduling of different heating zones. A unique hardware slide switch allows Zone 8 to operate in either standard underfloor heating mode or as a radiator/towel rail zone, enabling the boiler call without energising the UFH manifold pump or valve—making the UH8 suitable for mixed heating environments.

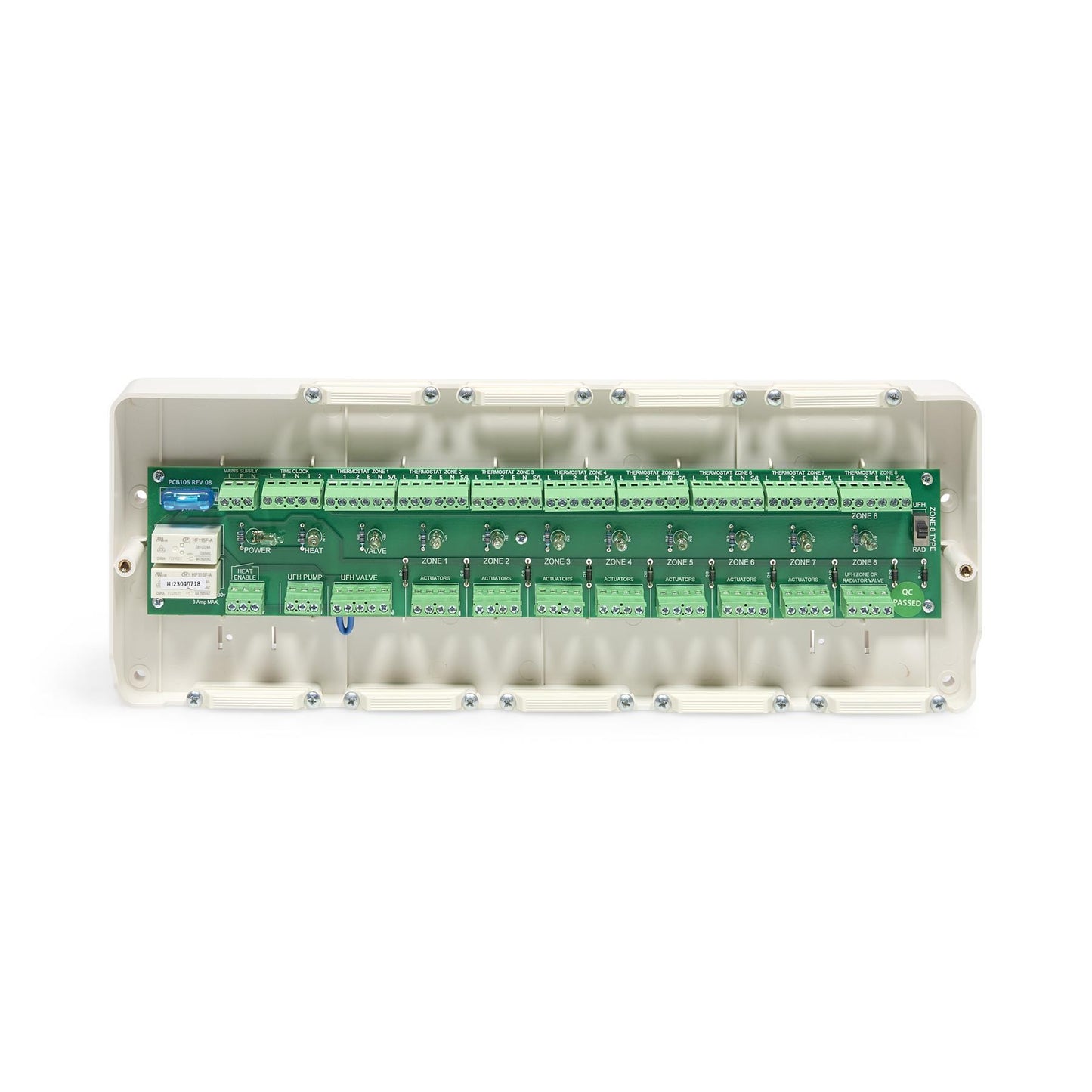

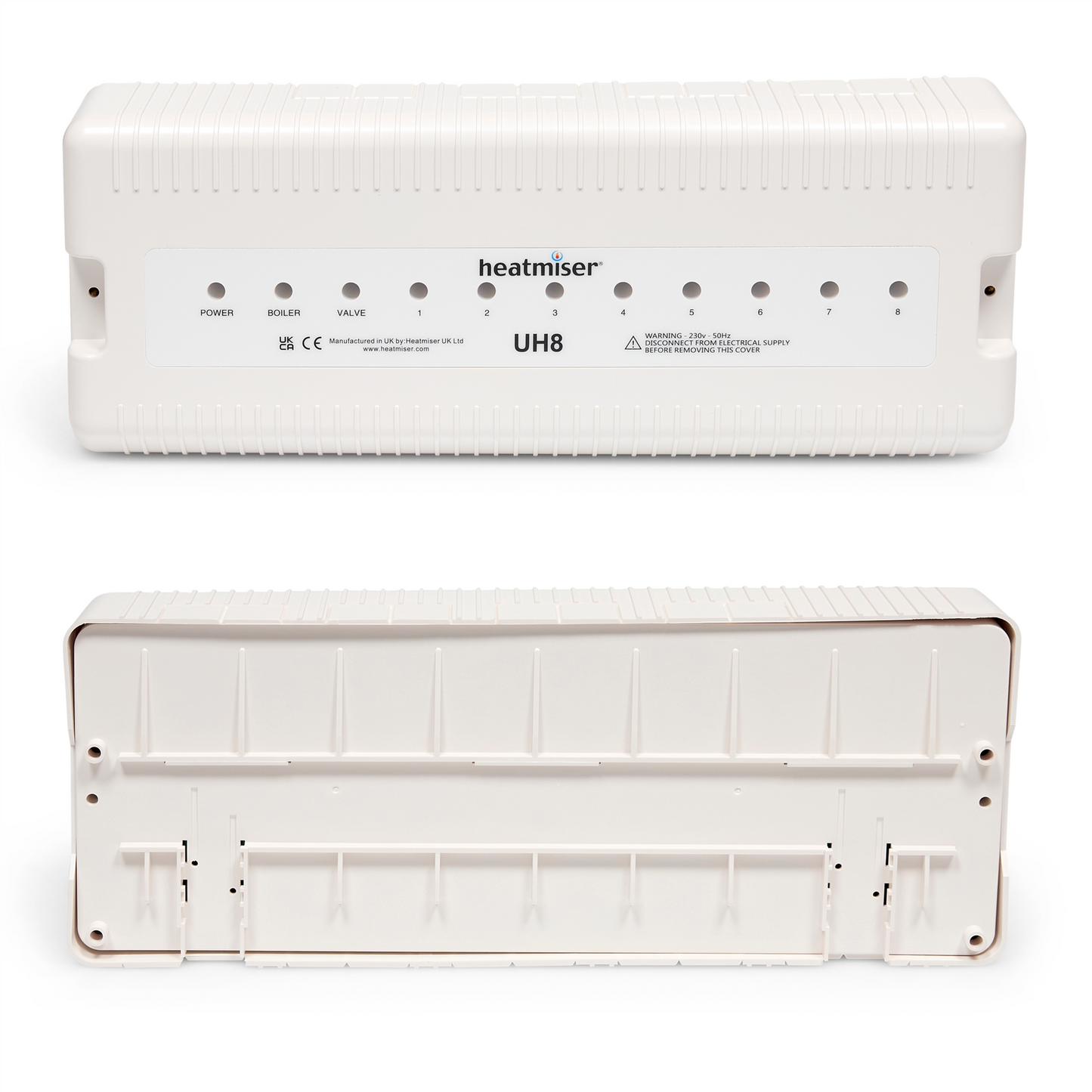

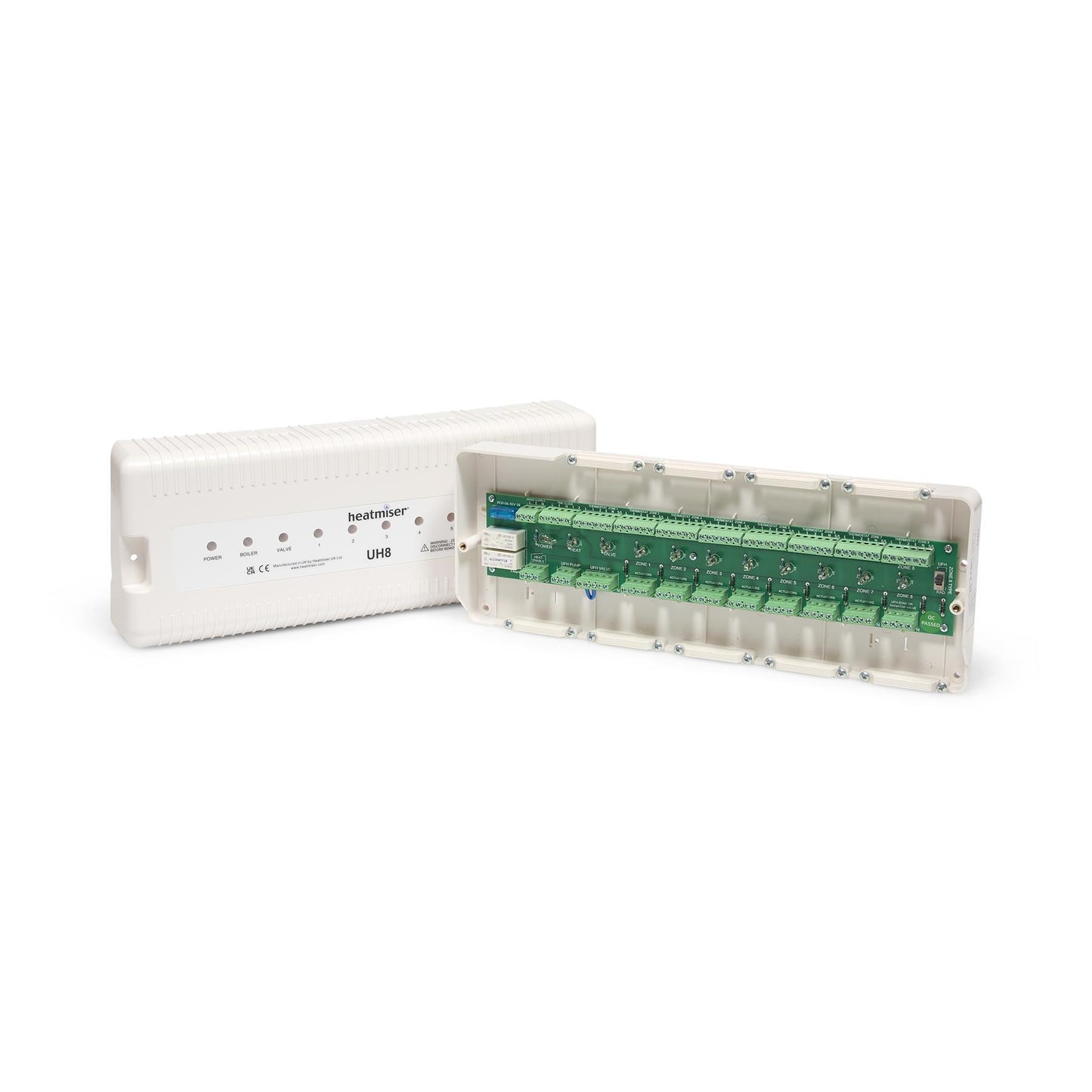

Comprehensive diagnostic neon indicators provide real-time visual status for every zone, pump, valve, boiler, and supply, streamlining commissioning, troubleshooting, and service. The robust, IP20-rated enclosure (384 × 148 × 60 mm) is supplied with DIN rail and surface mounting options, full terminal labeling, and clear installation guidance for rapid, compliant installation.

The UH8 is fully compatible with Heatmiser Slimline, NeoStat, DS-SB, and most third-party 230V on/off thermostats and standard UFH actuators. It is not suitable for electric underfloor heating mats, wireless or 12V thermostats.

Professional installation is required. All wiring must be performed by a qualified electrician in compliance with BS7671 and local/national regulations.
