• Press Tool Required - Not Push Fit: This is an M Profile press fit fitting. You need a compatible press gun and the correct jaw size for each port to compress all three connections. Use the jaw size matching the largest port first.

• Reduced Branch Size - Sized L x C(Branch) x R: The centre branch outlet is a smaller diameter than the two main run ends. The size is quoted Left x Centre x Right - for example 22 x 15 x 22 means a 22mm main run with a 15mm branch outlet.

• WRAS, DVGW and BSI Approved: Certified for hot and cold water, vented and unvented heating systems, and chilled water. Rated to 16 bar from -24 deg.C to 110 deg.C. Compatible with BS EN 1057 R250 and R290 copper tube.

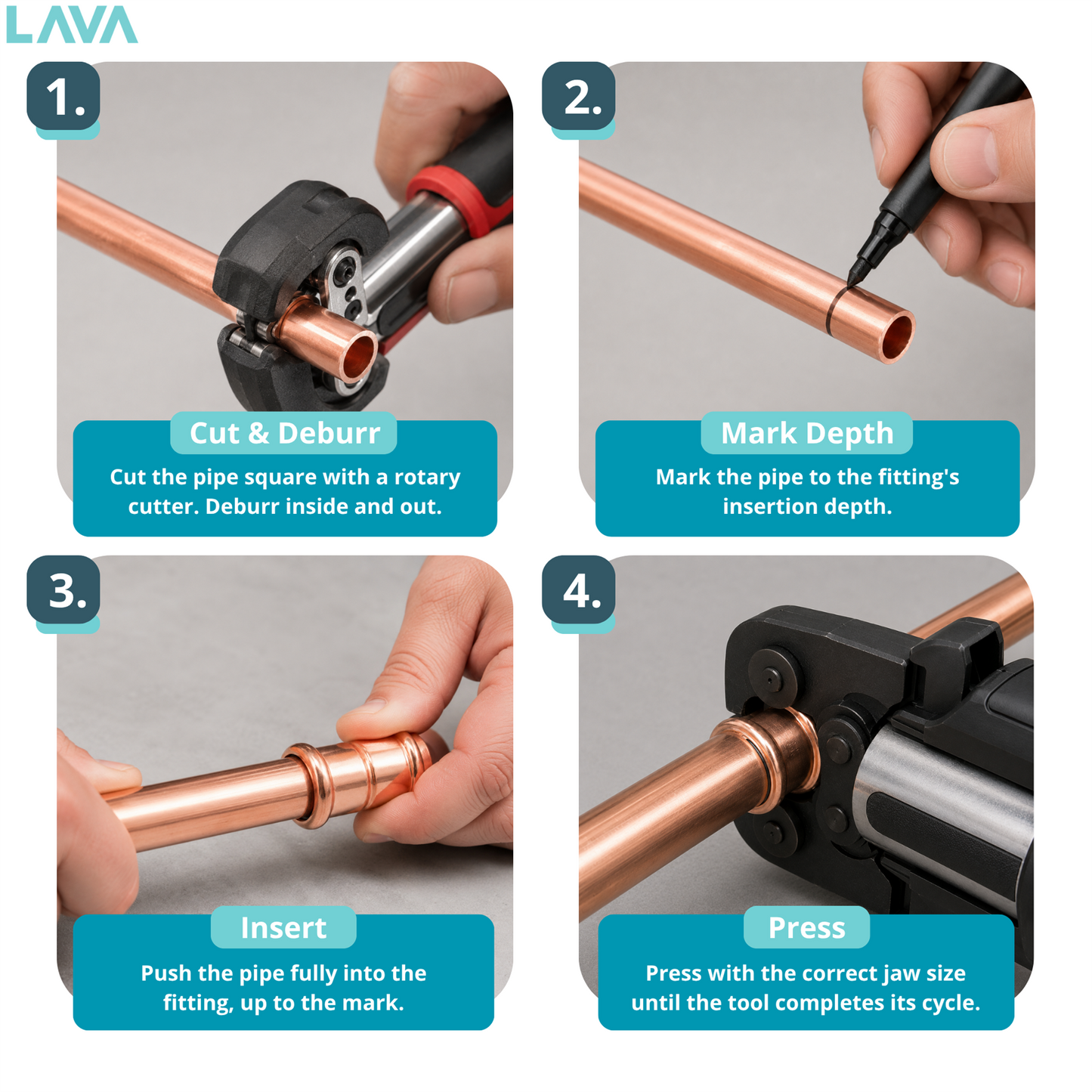

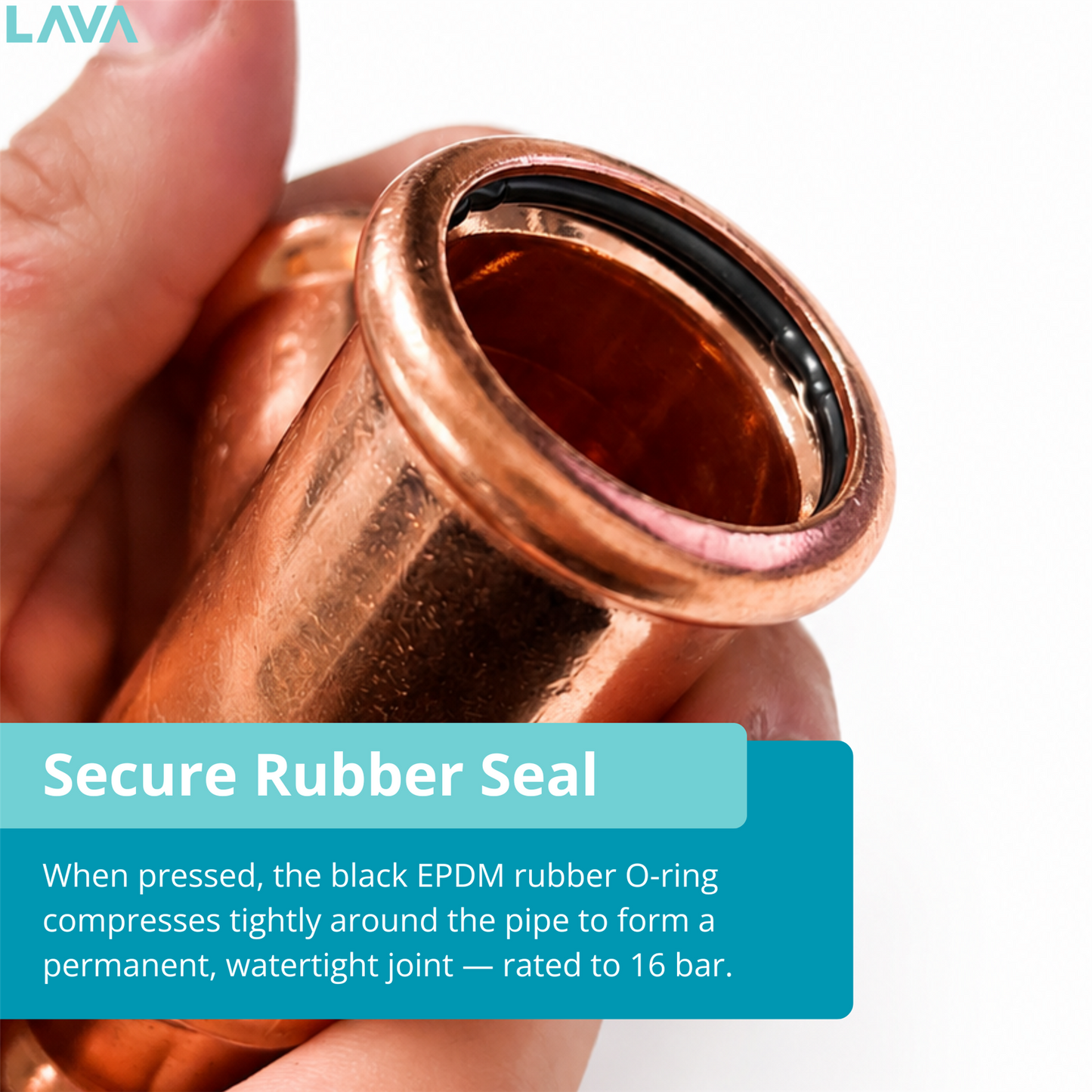

• EPDM O-Ring on All Three Ports: Each connection has its own black EPDM sealing element. Deburr all pipe ends and insert to the correct depth before pressing each port separately.

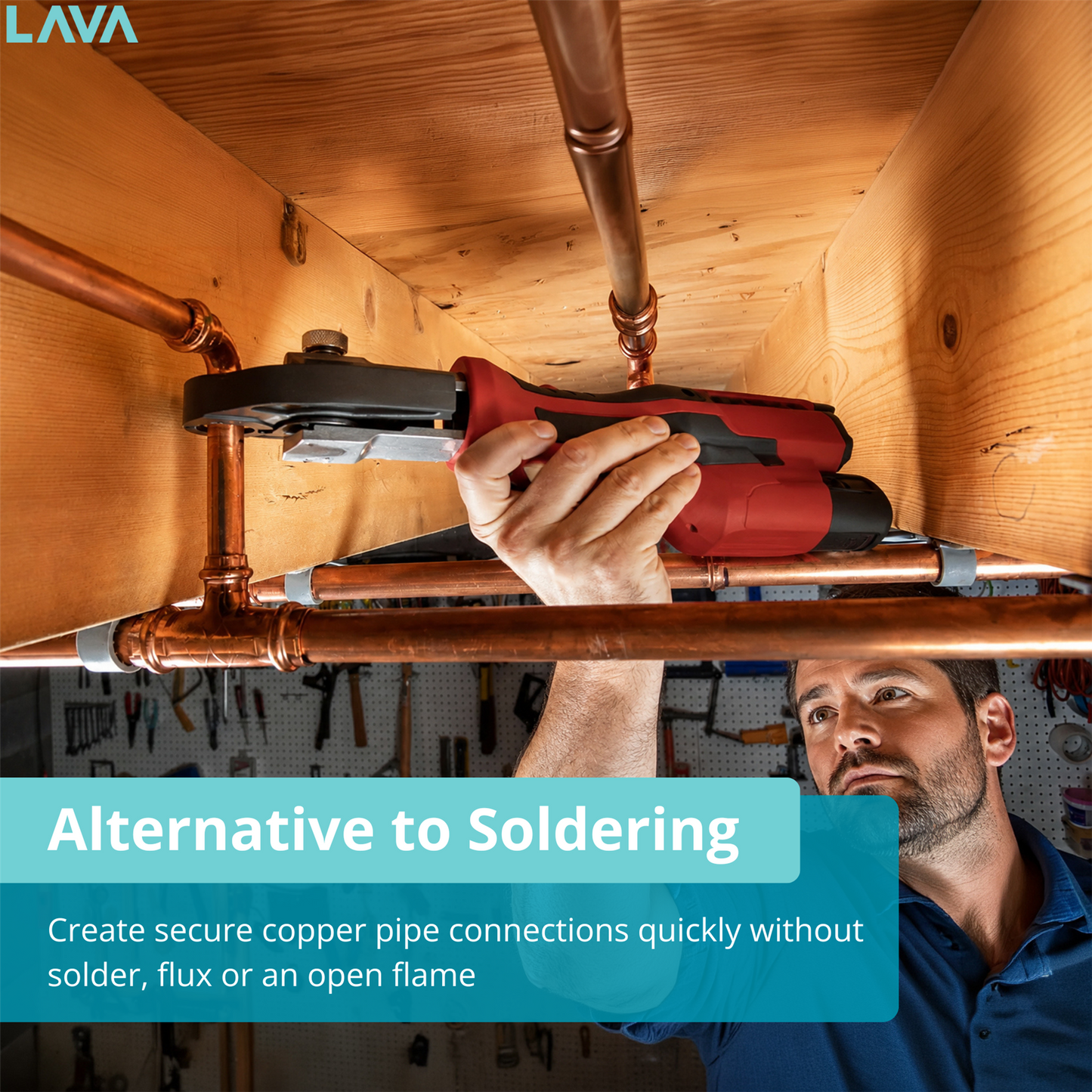

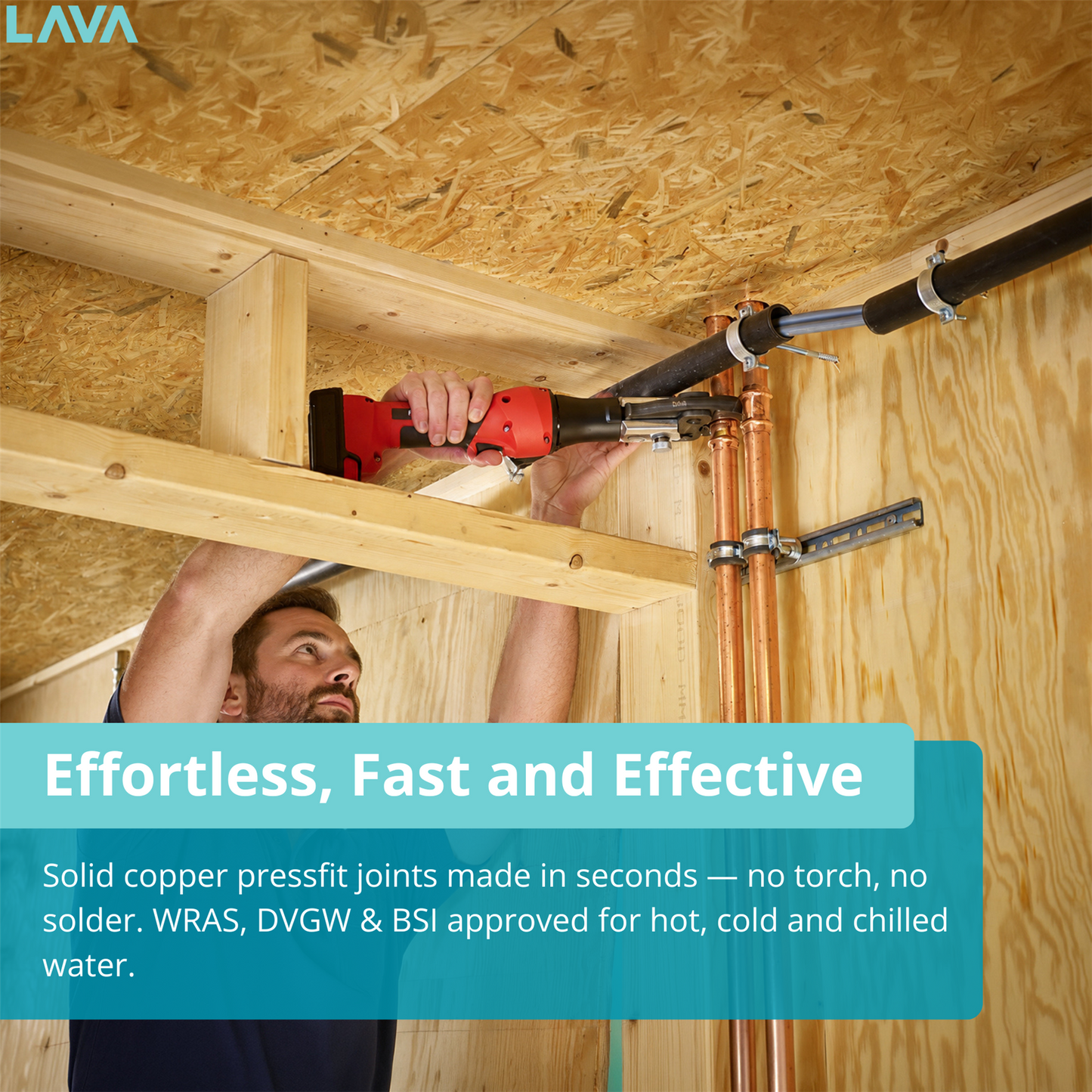

• No Naked Flame - No Hot Works Permit: No solder, no flux, no open flame on any of the three connections. Use in occupied buildings and confined spaces without hot works permits.

• Check Your Jaw Sizes Before Ordering: You need a separate jaw for each port size on this fitting. For example, a 22 x 15 x 22mm tee requires both an M22 and an M15 jaw. Confirm you have both before starting. 25-year guarantee.

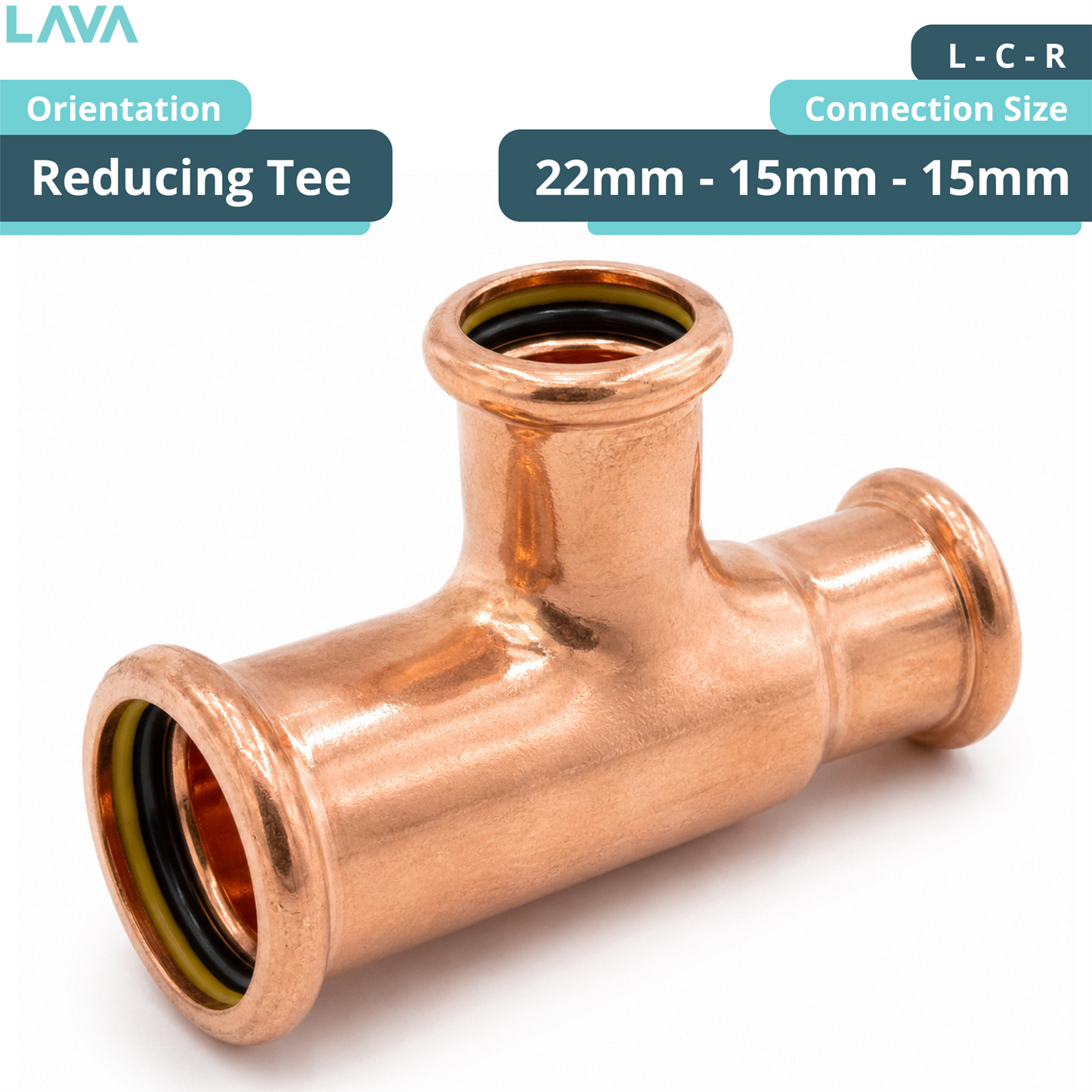

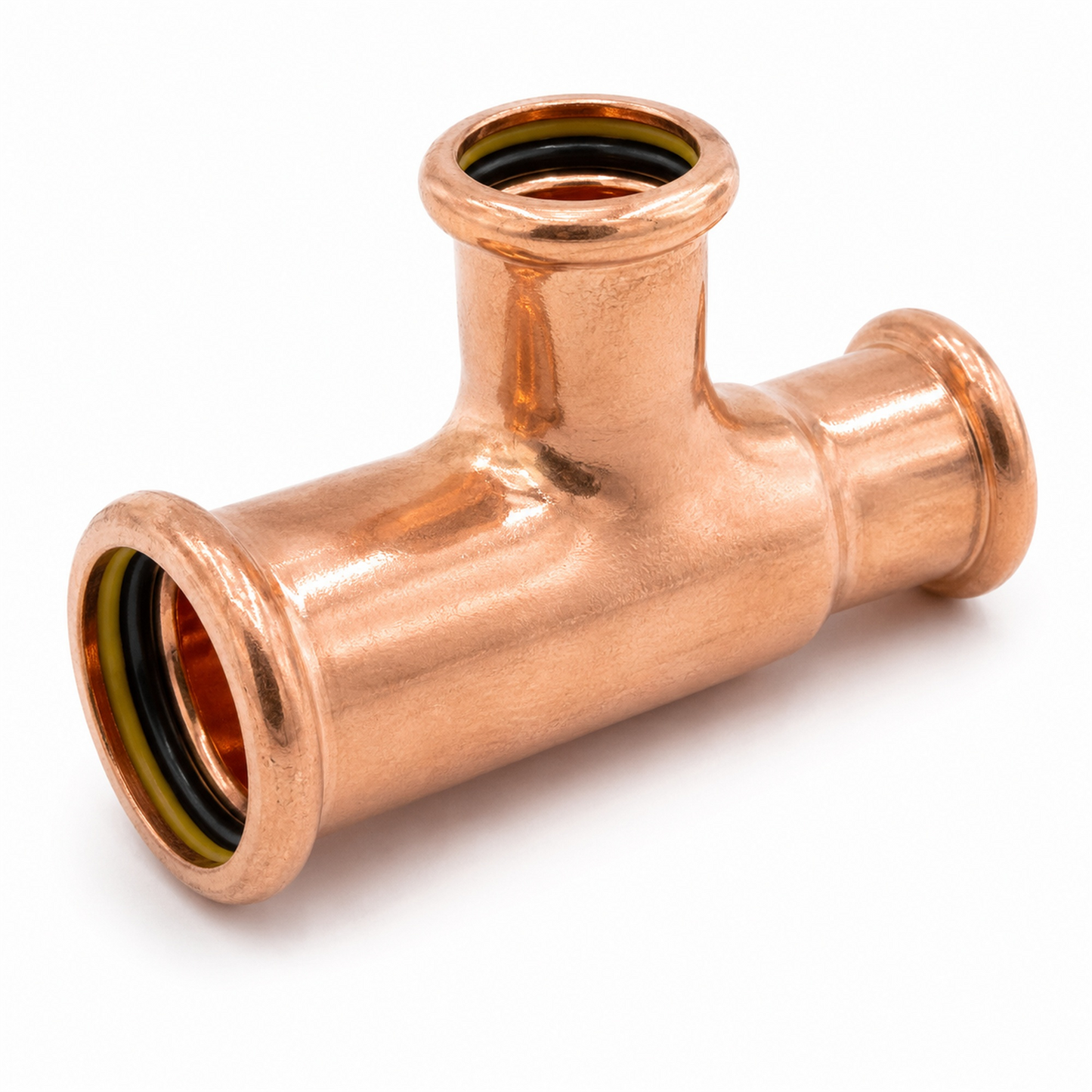

The LavaPlumb Copper Pressfit Reducing Tee branches from a main copper pipe run to a smaller diameter outlet. How to read the size: The size is quoted Left x Centre(Branch) x Right. The centre figure is the branch outlet - the smaller dimension. The left and right figures are the two main run ends. For this fitting that is 22 x 15 x 15mm (L/C/R). All three ports are M Profile press connections. Press each one individually with a compatible press gun and the correct jaw size for that port. You need a separate jaw for each different diameter - confirm you have both jaw sizes before starting. EPDM O-Ring on every port: Deburr all pipe ends and insert to depth before pressing. A burr on the pipe end is the most common cause of a failed press fit seal. Unpressed joints leak at your pressure test before any pipework is concealed. WRAS Approved. DVGW Approved. BSI Approved. 16 bar from -24 deg.C to 110 deg.C. BS EN 1057 R250 and R290 compatible. 25-year guarantee.
