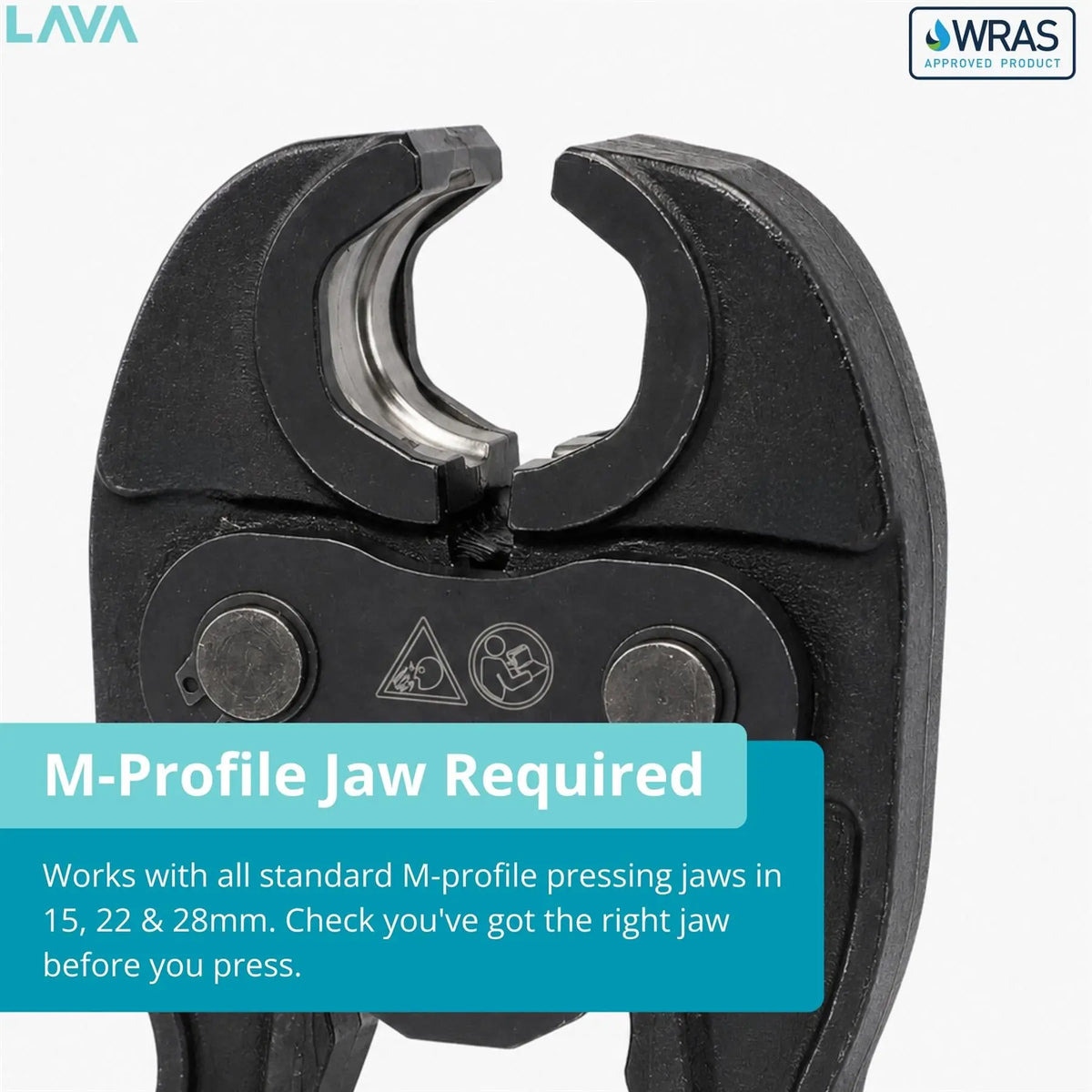

• Press Tool Required - Not Push Fit: This is an M Profile press fit fitting. You need a compatible press gun and M22 jaw to compress all three sleeves onto the copper tube ends. It cannot be hand-assembled.

• Three Equal Connections - Press x Press x Press: All three ends are the same diameter (22mm) and all three use M Profile press connections. Use it to split or combine flow at 90 degrees from the main pipe run.

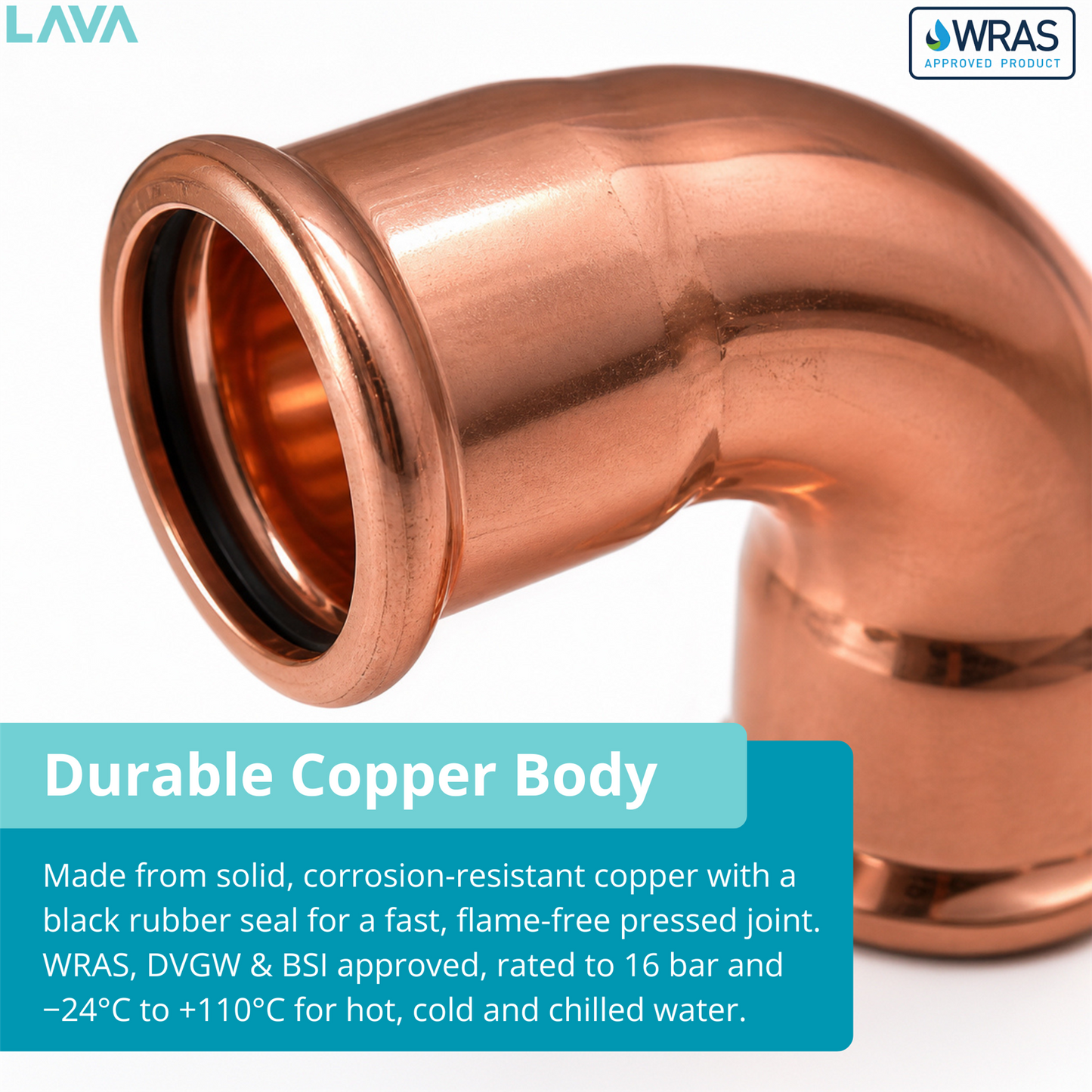

• WRAS, DVGW and BSI Approved: Certified for hot and cold water services, vented and unvented heating systems, and chilled water. Rated to 16 bar from -24 deg.C to 110 deg.C. Compatible with BS EN 1057 R250 and R290 copper tube.

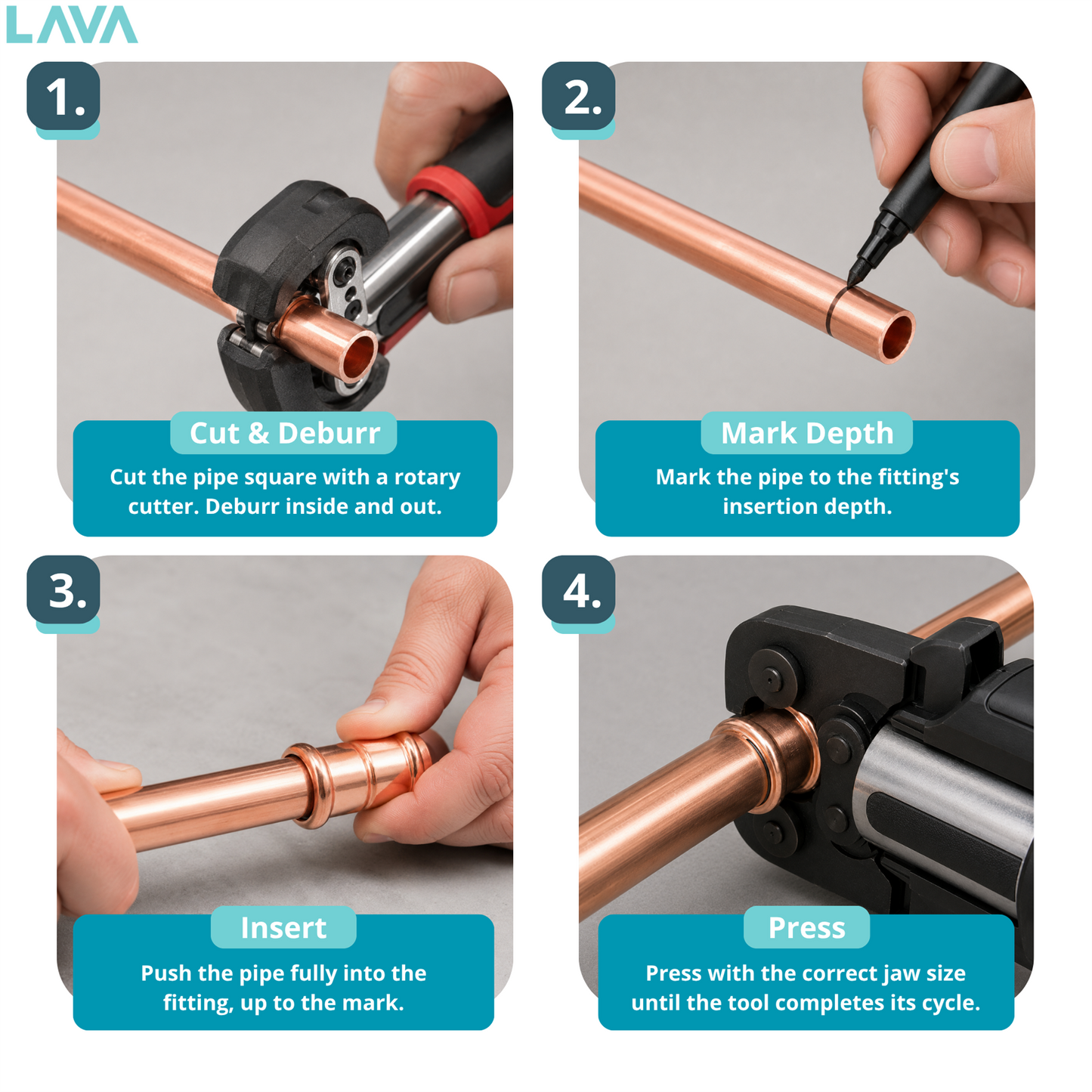

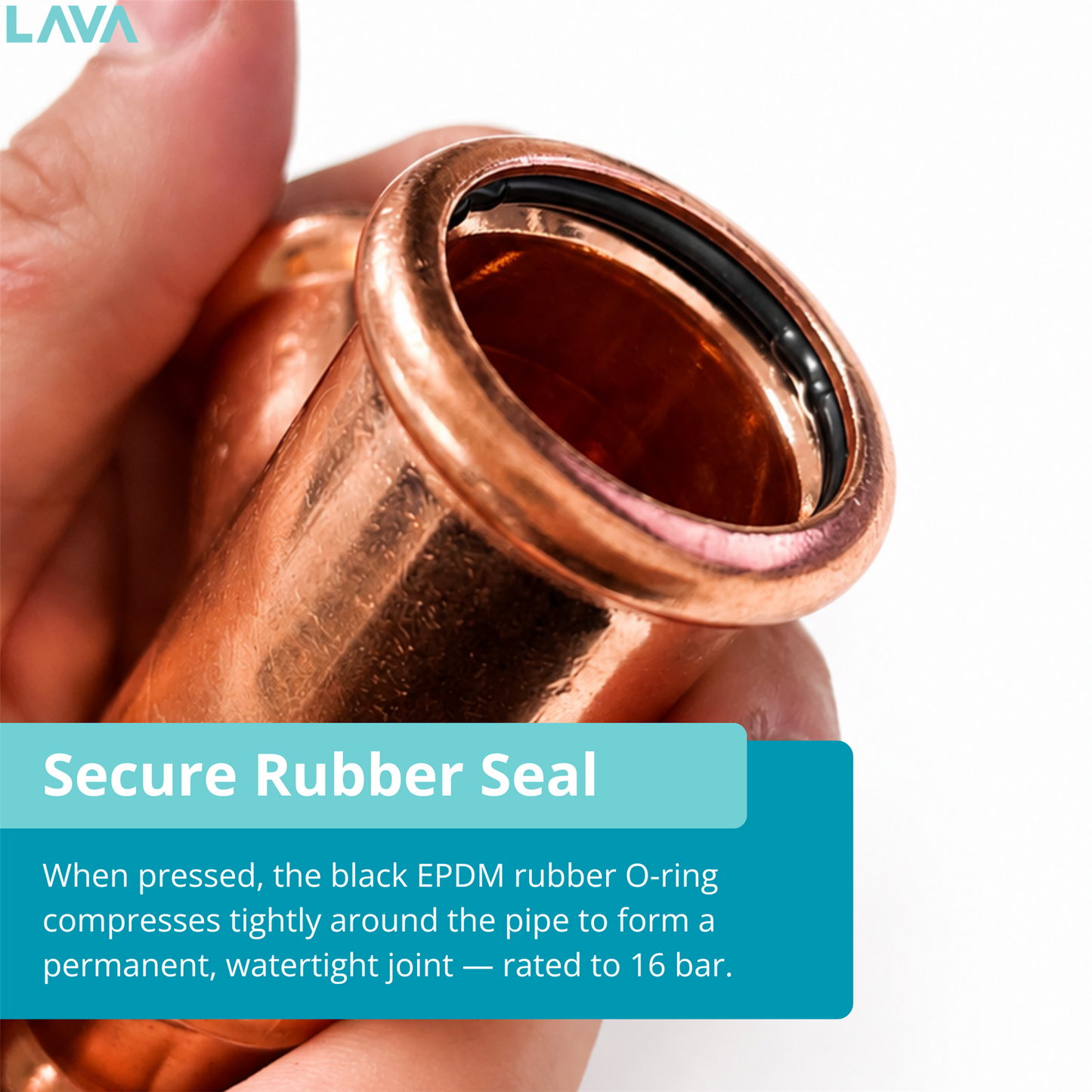

• EPDM O-Ring on All Three Ends: Each port has its own black EPDM sealing element. Deburr all three pipe ends and insert to the correct depth before pressing each connection individually.

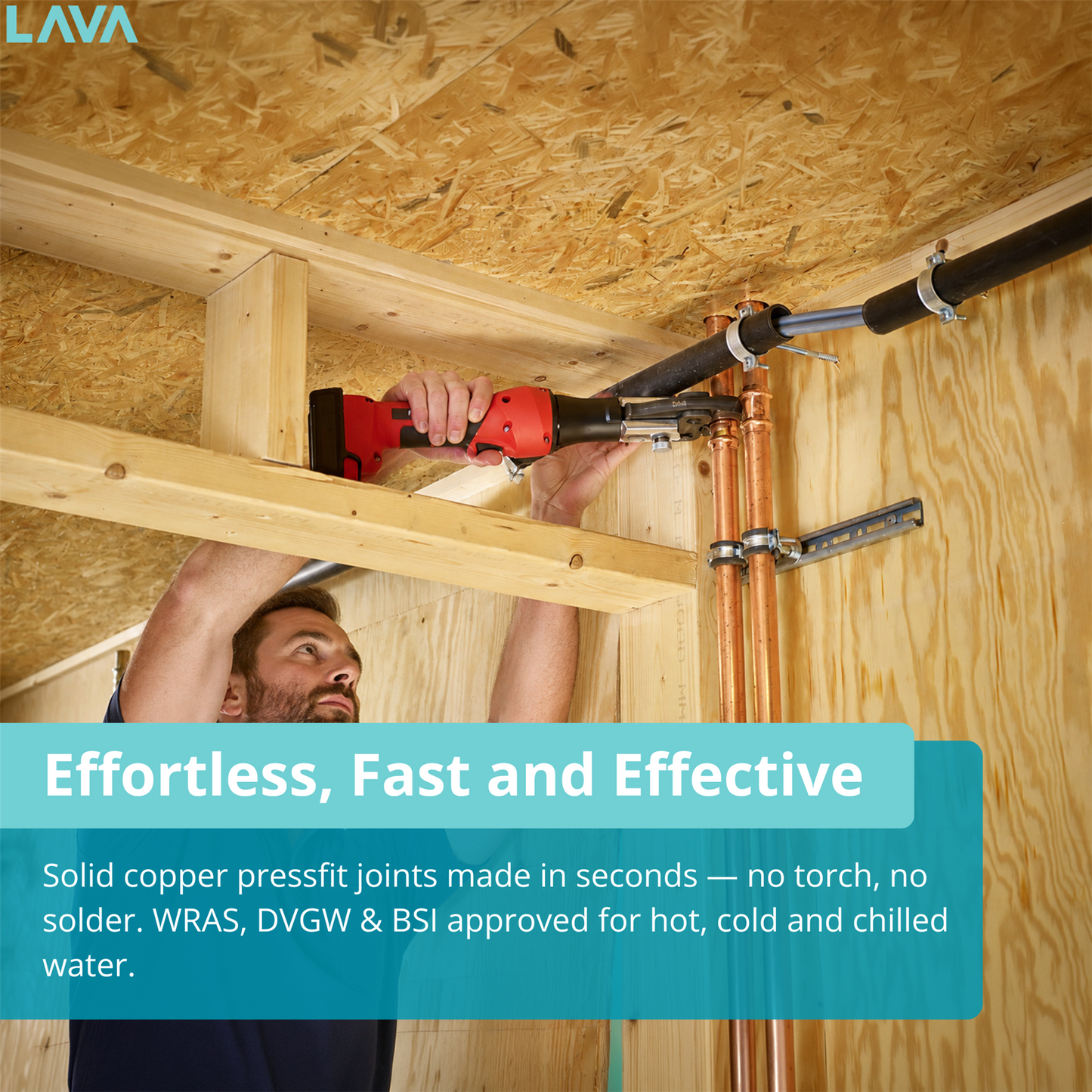

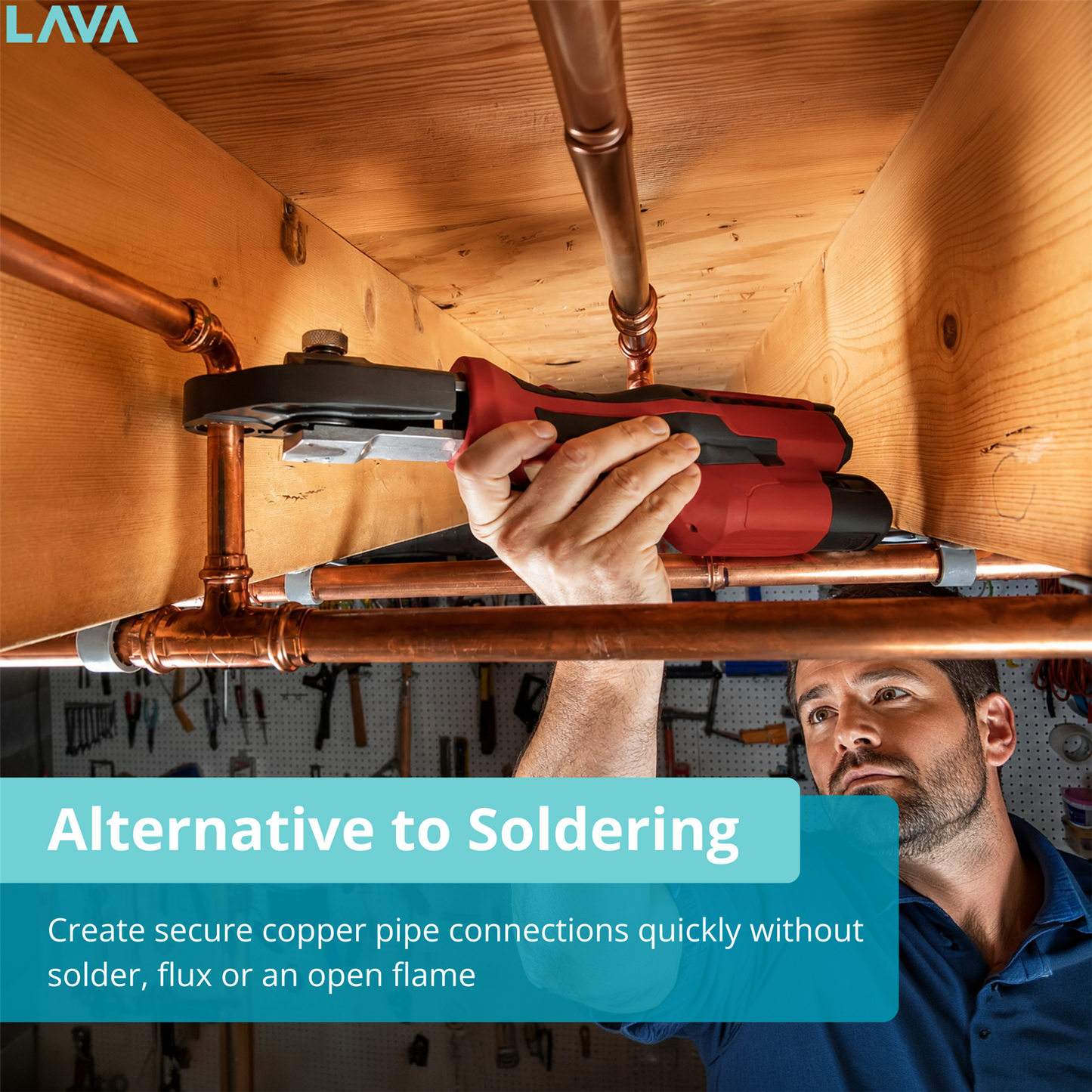

• No Naked Flame - No Hot Works Permit: No solder, no flux, no open flame on any of the three connections. Use in occupied buildings and confined spaces without hot works permits.

• Press Each End Separately: Use your press tool on each of the three connections in turn. Unpressed connections leak visibly at your pressure test before any pipework is concealed. 25-year manufacturer guarantee.

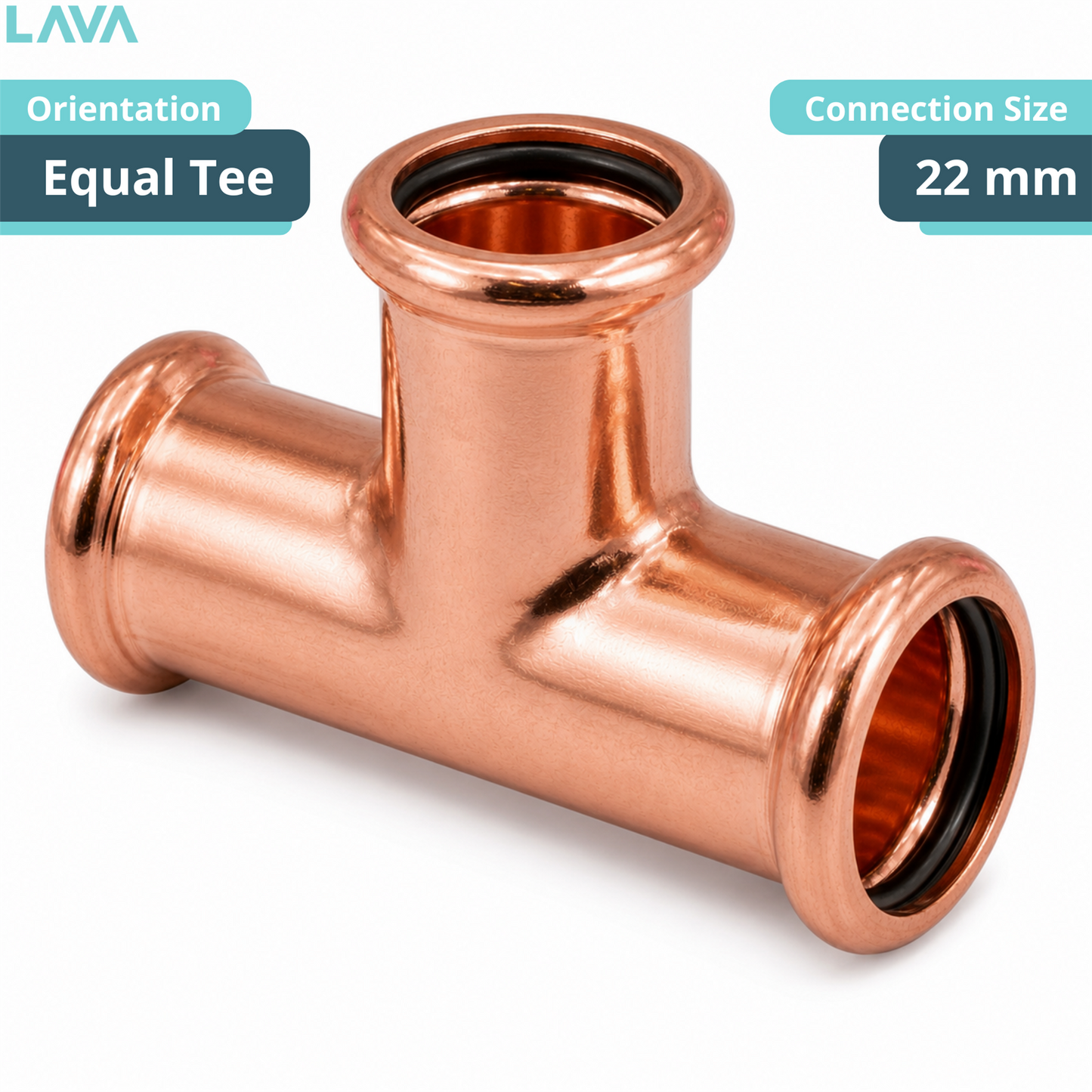

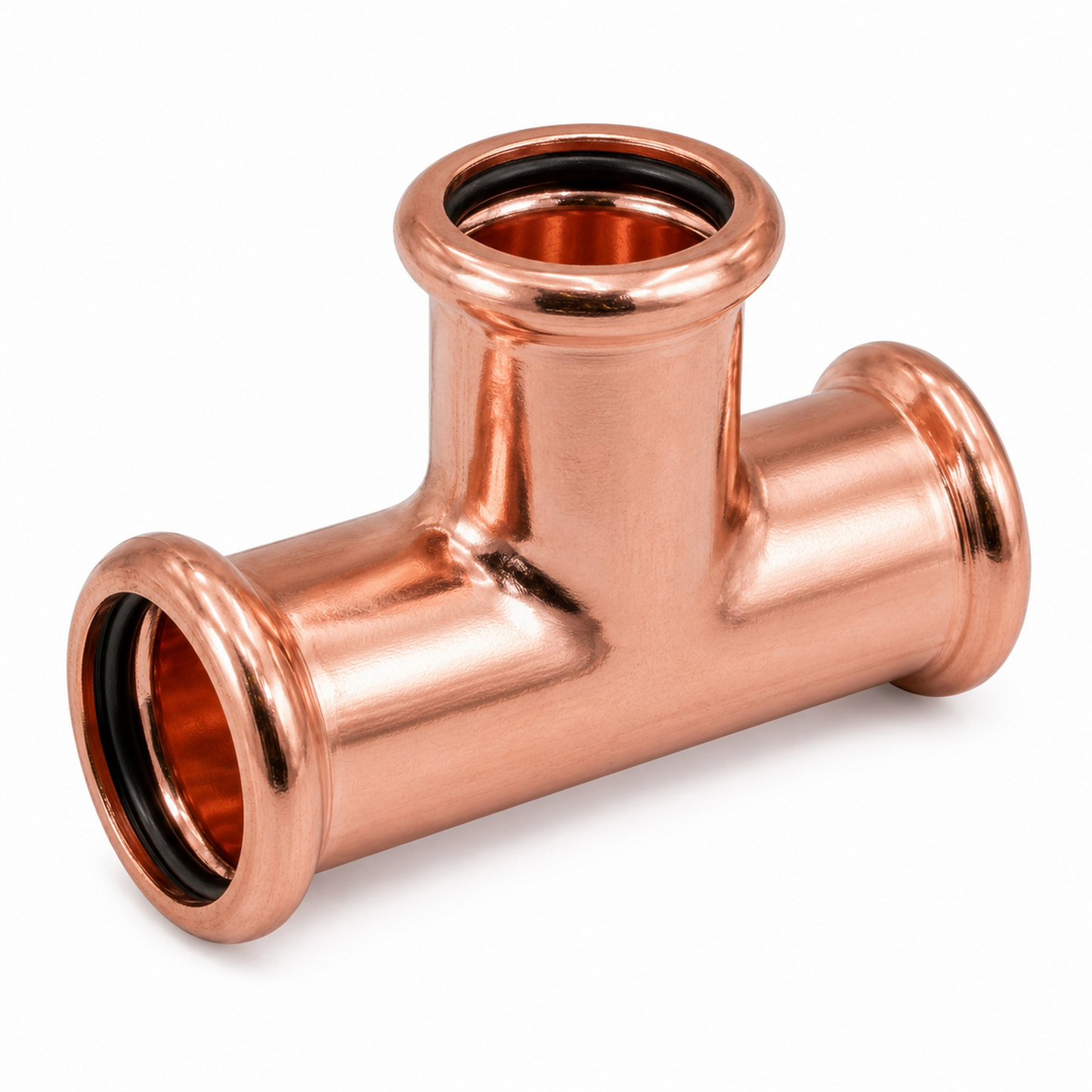

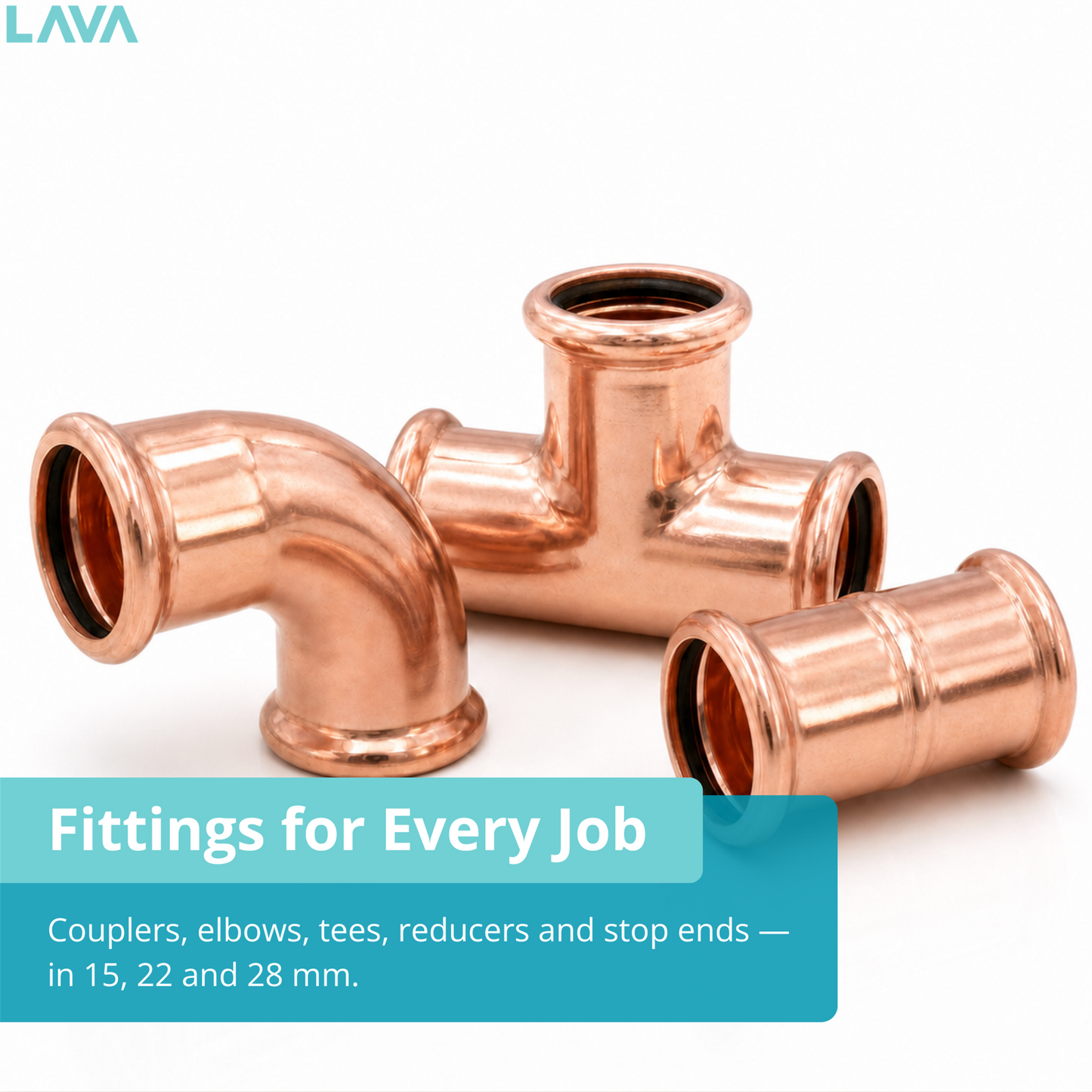

The LavaPlumb Copper Pressfit Equal Tee creates a three-way branch from a 22mm copper pipe run, with all three connections at equal diameter. All three ports are press x press - you press each connection individually with a compatible M22 jaw and press gun. No solder, no flux, no naked flame. Where to use it: Splitting a single supply into two directions. Adding a branch connection to an existing pipe run. Combining two return lines into one. EPDM O-Ring on every port: Each of the three connections has its own EPDM sealing element. Deburr every pipe end and insert to depth before pressing. Skipping either step risks cutting the O-ring or an incomplete seal. Unpressed joints leak visibly at your pressure test - you will identify every missed connection before covering any pipework. WRAS Approved. DVGW Approved. BSI Approved. 16 bar rated from -24 deg.C to 110 deg.C. BS EN 1057 R250 and R290 compatible. 25-year manufacturer guarantee against manufacturing defects.
