ENGO EPC11W Pump Controller for CH & Hot Water ENGO

ENGO EPC11W Pump Controller for CH & Hot Water

ENGO EPC11W Pump Controller for CH & Hot Water

Single Unit
Regular price £32. 99
Regular price Sale price £32 .99
Quantity
3 items available in stock

Trade customer? Log in to see your trade price, or open a trade account.

  • Free UK delivery over £90Order before 1pm Mon–Fri for same-day dispatch
  • 30-day returnsFree if faulty, damaged or wrong
  • Secure checkoutApple Pay, Google Pay and all major cards

Product Description

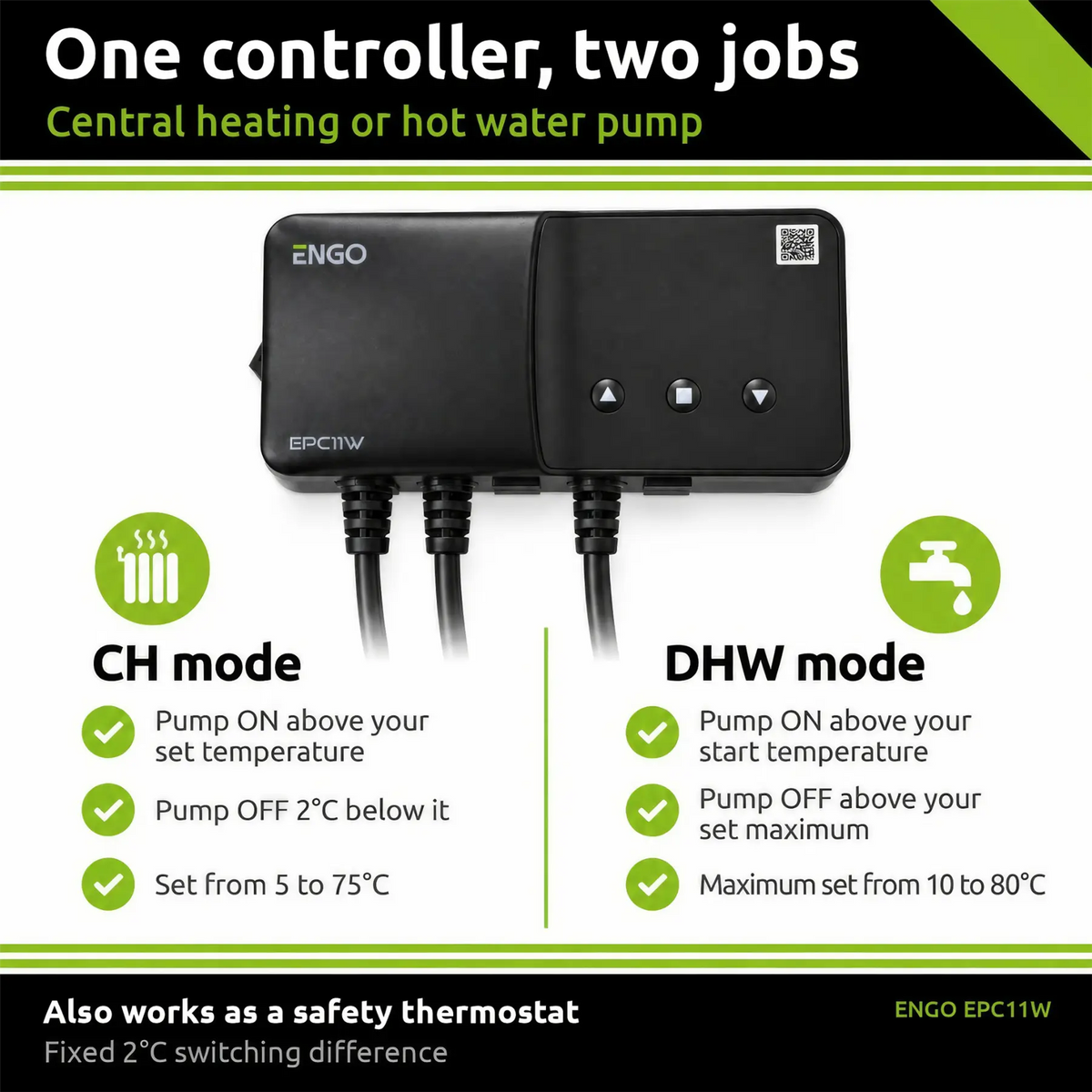

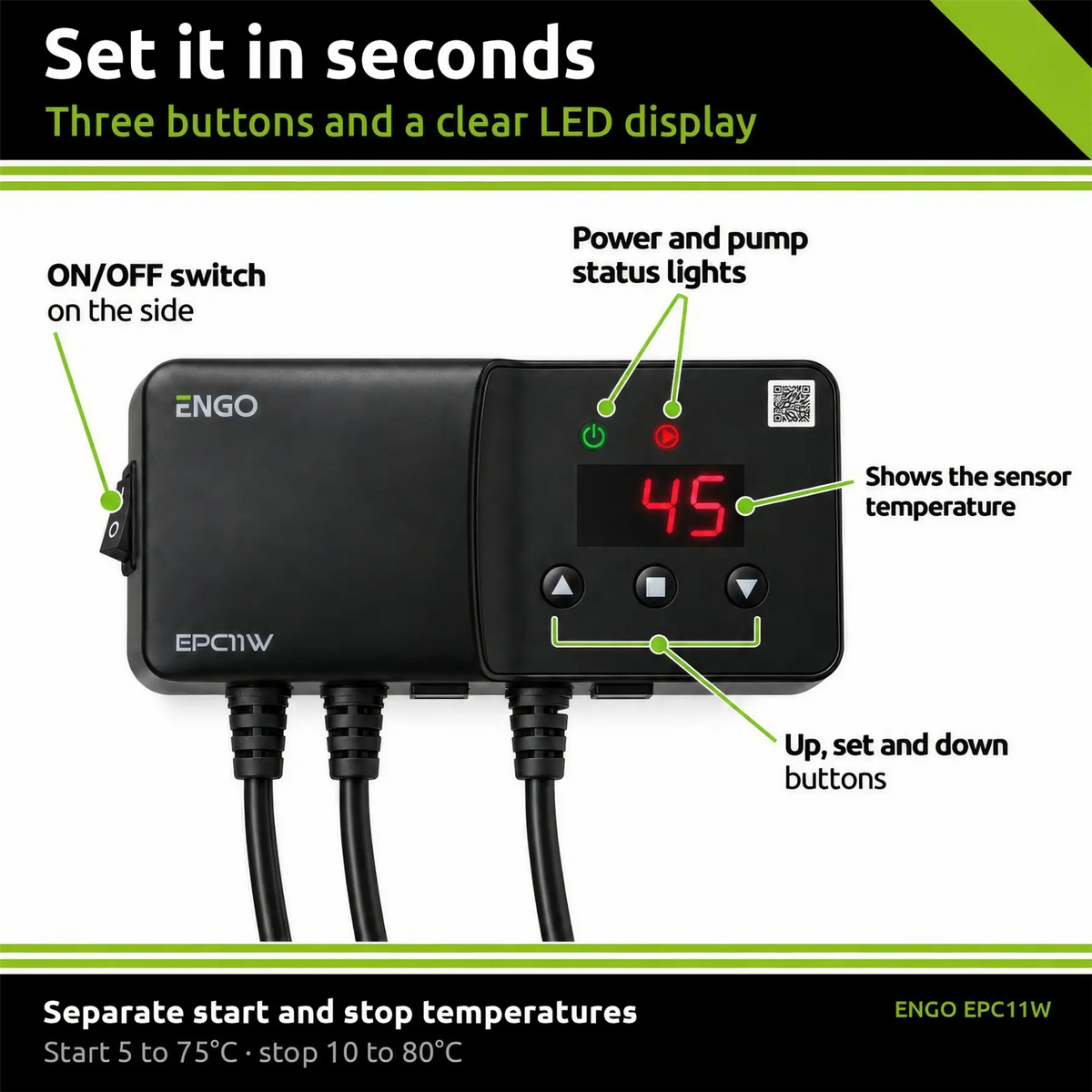

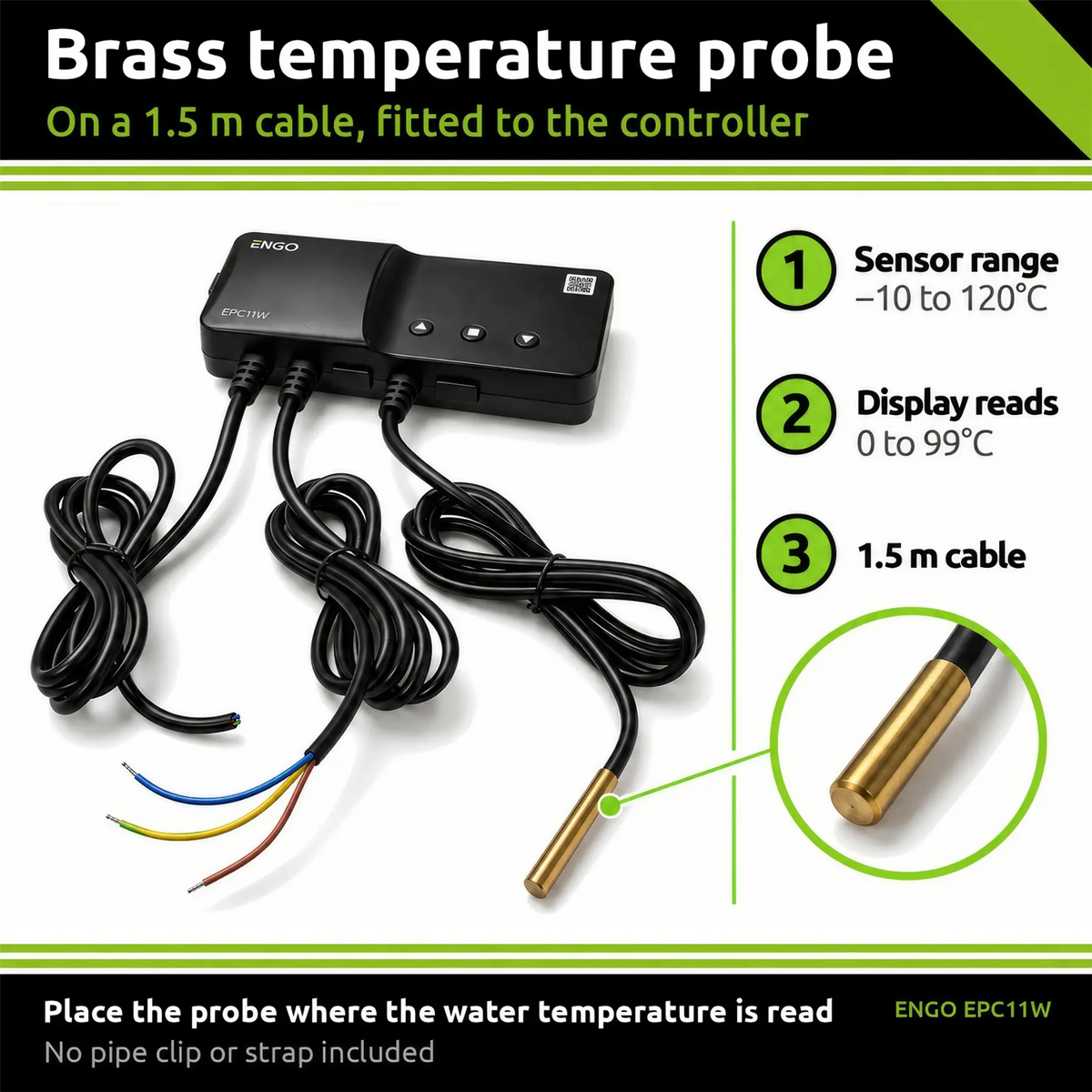

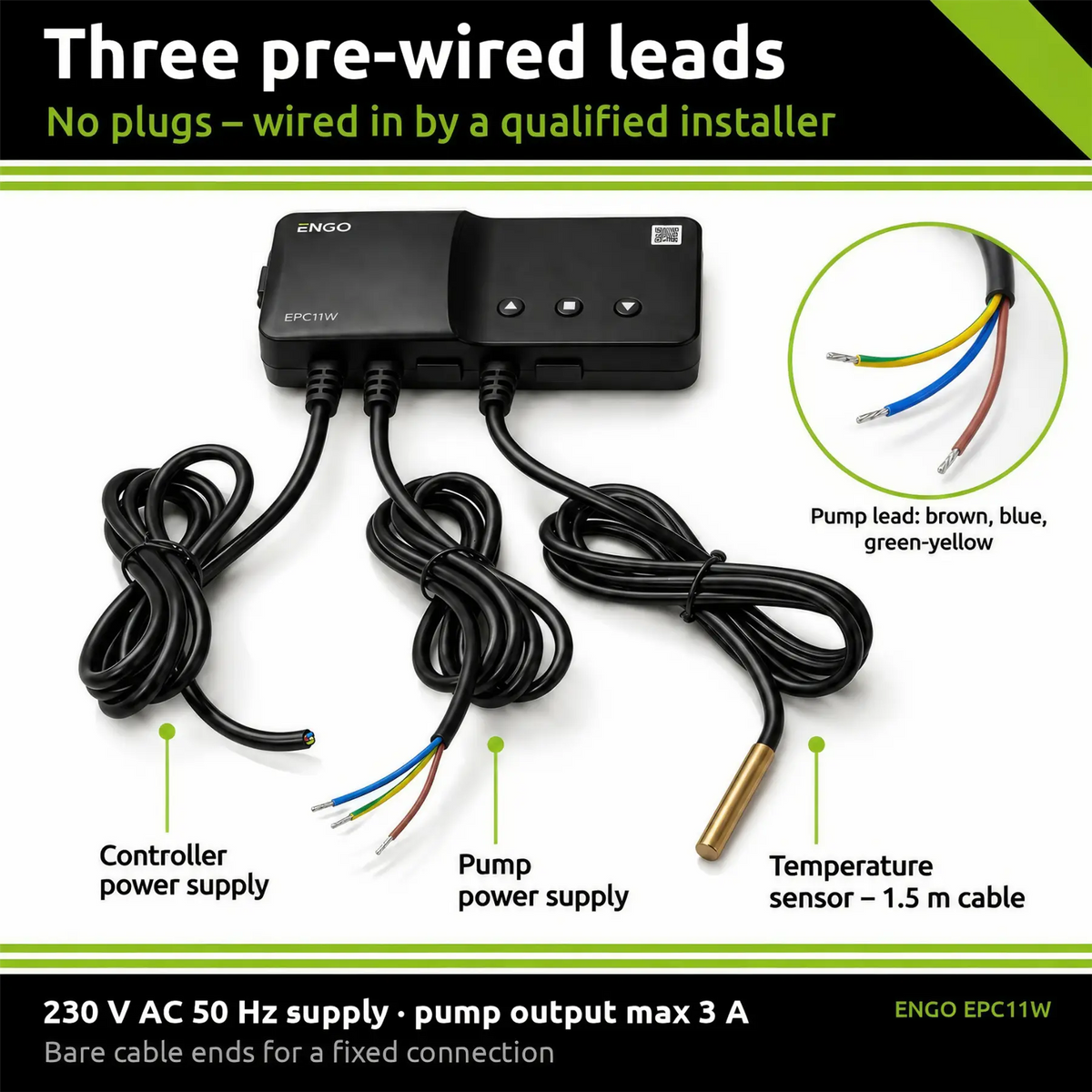

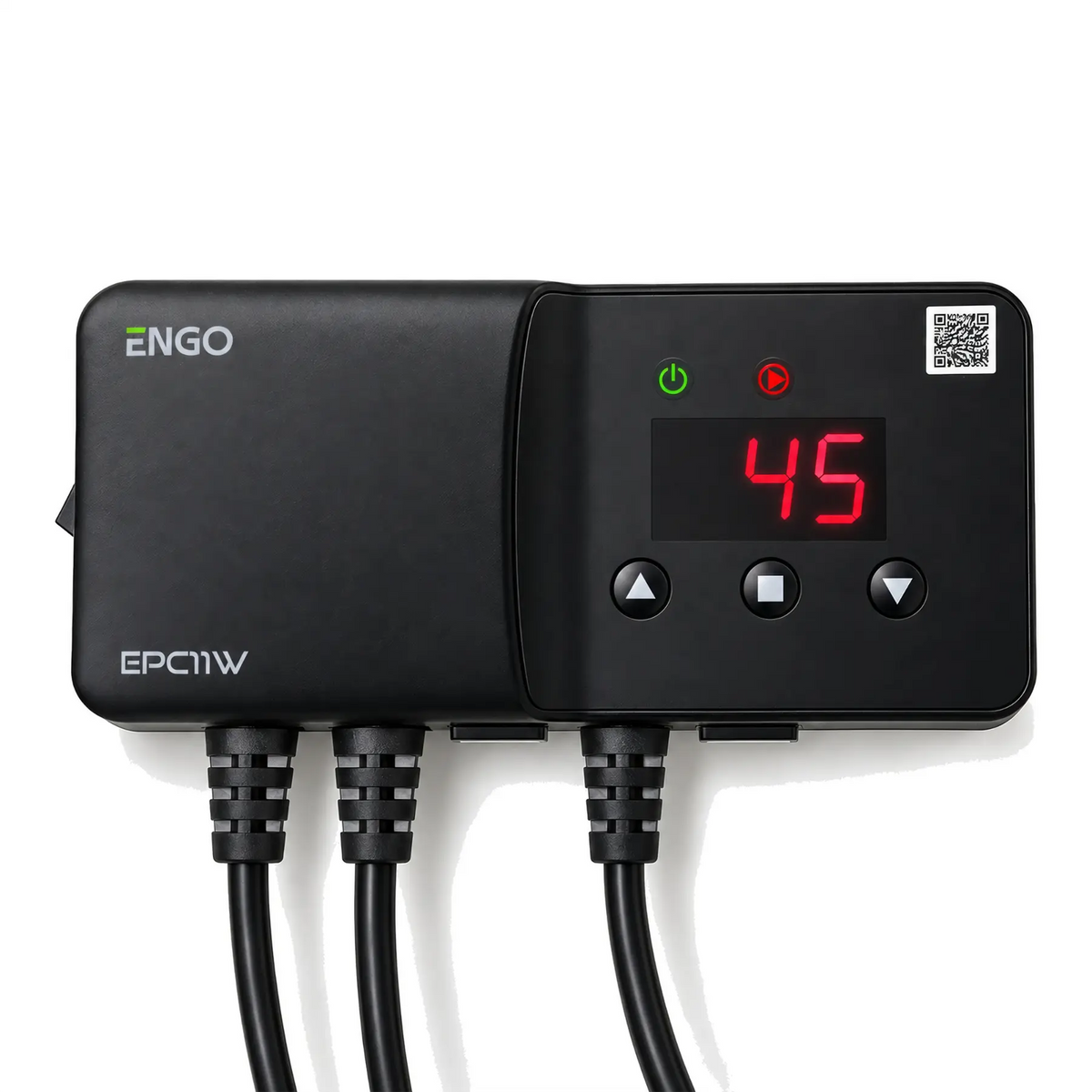

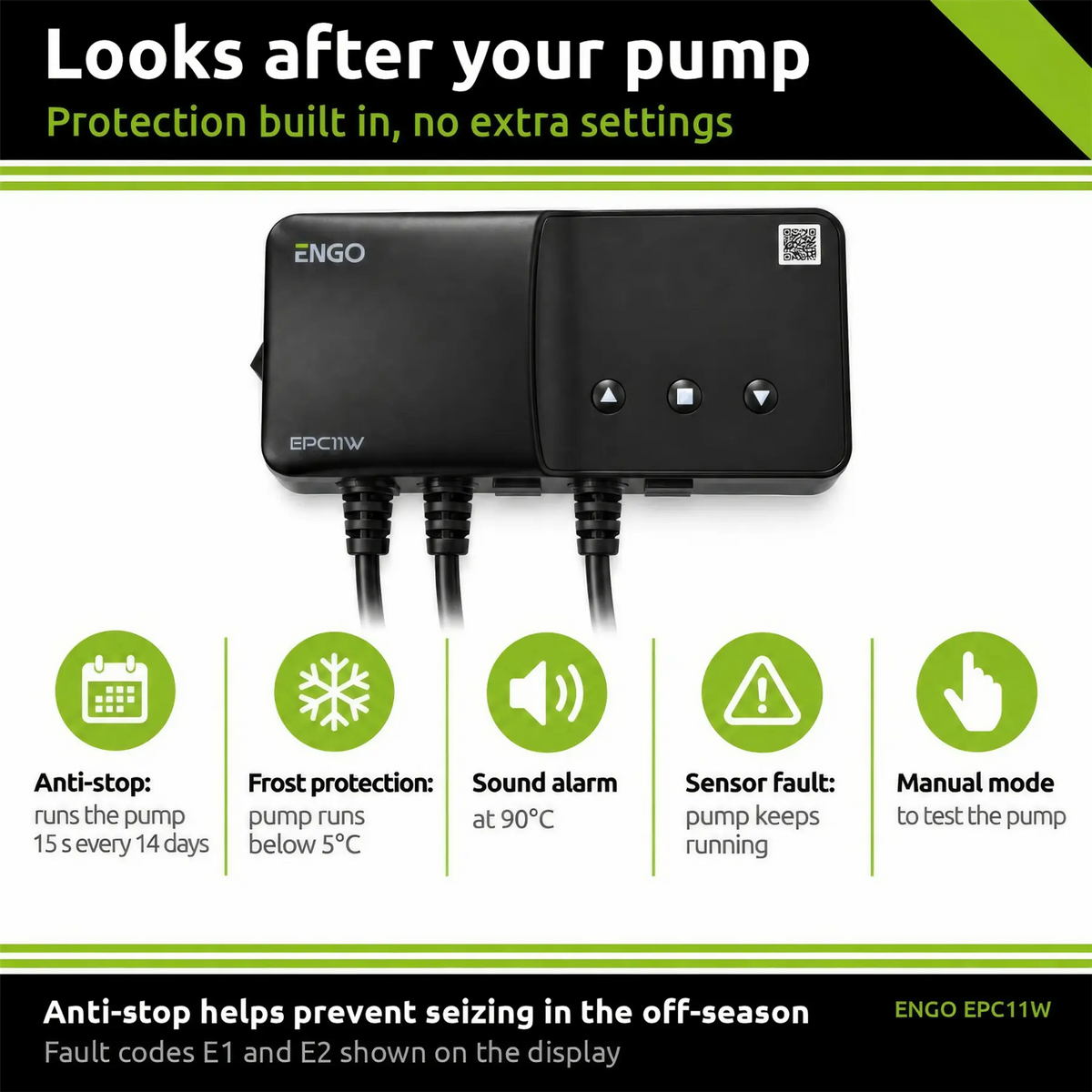

The ENGO EPC11W is a digital pump controller for central heating and hot water systems. A brass temperature probe on a 1.5 m cable reads the water temperature, and the controller switches a 230V circulation pump on or off at the temperatures you set. It suits boiler, radiator and hot water cylinder circuits, and can also be used as a safety thermostat. In CH mode the pump starts once the probe passes your ON setting (5 to 75°C), so heat is circulated once the boiler is up to temperature. In DHW mode the pump stops once the probe reaches your OFF setting (10 to 80°C), protecting the hot water tank from overheating. A fixed 2°C switching difference helps prevent rapid on-off cycling. The LED display shows the live sensor temperature from 0 to 99°C, with separate lights for power and pump operation. Settings are made with three buttons, and a manual mode lets you run the pump to check it is working. A side switch turns the unit on and off. Pump protection is built in. The anti-stop function runs the pump for 15 seconds every 14 days to help prevent seizing outside the heating season, frost protection runs it continuously below 5°C, and an audible alarm sounds if the temperature reaches 90°C. If the sensor develops a fault (E1 or E2), the pump keeps running until it is fixed. The controller arrives with three pre-wired leads for the controller supply, pump supply and temperature sensor. The leads are bare-ended with no plugs, for fixed wiring by a qualified installer. It mounts on the wall through two keyhole slots. Specification: 230V AC 50Hz supply, 3(1)A max pump output, sensor range -10 to 120°C, 155 x 70 x 39 mm, IP20, double insulated. In the box: EPC11W controller with three pre-wired leads and brass probe, 2 wall screws and 2 wall plugs, quick guide. No pipe clip or strap is included. Indoor use only.

Your Bag

Empty Cart

Your cart is empty

Go find the products you like.
Continue shopping
Reviews

Product description

The ENGO EPC11W is a digital pump controller for central heating and hot water systems. A brass temperature probe on a 1.5 m cable reads the water temperature, and the controller switches a 230V circulation pump on or off at the temperatures you set. It suits boiler, radiator and hot water cylinder circuits, and can also be used as a safety thermostat. In CH mode the pump starts once the probe passes your ON setting (5 to 75°C), so heat is circulated once the boiler is up to temperature. In DHW mode the pump stops once the probe reaches your OFF setting (10 to 80°C), protecting the hot water tank from overheating. A fixed 2°C switching difference helps prevent rapid on-off cycling. The LED display shows the live sensor temperature from 0 to 99°C, with separate lights for power and pump operation. Settings are made with three buttons, and a manual mode lets you run the pump to check it is working. A side switch turns the unit on and off. Pump protection is built in. The anti-stop function runs the pump for 15 seconds every 14 days to help prevent seizing outside the heating season, frost protection runs it continuously below 5°C, and an audible alarm sounds if the temperature reaches 90°C. If the sensor develops a fault (E1 or E2), the pump keeps running until it is fixed. The controller arrives with three pre-wired leads for the controller supply, pump supply and temperature sensor. The leads are bare-ended with no plugs, for fixed wiring by a qualified installer. It mounts on the wall through two keyhole slots. Specification: 230V AC 50Hz supply, 3(1)A max pump output, sensor range -10 to 120°C, 155 x 70 x 39 mm, IP20, double insulated. In the box: EPC11W controller with three pre-wired leads and brass probe, 2 wall screws and 2 wall plugs, quick guide. No pipe clip or strap is included. Indoor use only.
