• Wireless heating control: switches a 230V pump, actuator, zone valve or wiring centre from an ENGO EONE or E25 thermostat, adding a wireless zone to a wired system
• DIN rail mounting included: the supplied rail holder clips the module straight into a manifold cabinet, or it fits inside a standard back box at 40 x 40 x 20 mm
• Named compatibility: binds to ENGO EONE and E25 thermostats and wires to the ECB08M230 control box or the wired zones of an ECB62-ZB wiring centre
• Doubles as a ZigBee repeater: each powered module works as a mains-powered router that extends mesh range and steadies the signal to devices sitting far from the gateway
• App and voice control: add it to a ZigBee 3.0 gateway such as the ENGO EGATE-PRO, sold separately, for scheduling and remote switching in the ENGO Smart app plus Alexa and Google Home
• Specification and offline use: 230V AC 50Hz supply, 3(1)A maximum switched load, 40 x 40 x 20 mm body, and ENGO binding keeps heating switching when broadband is unavailable

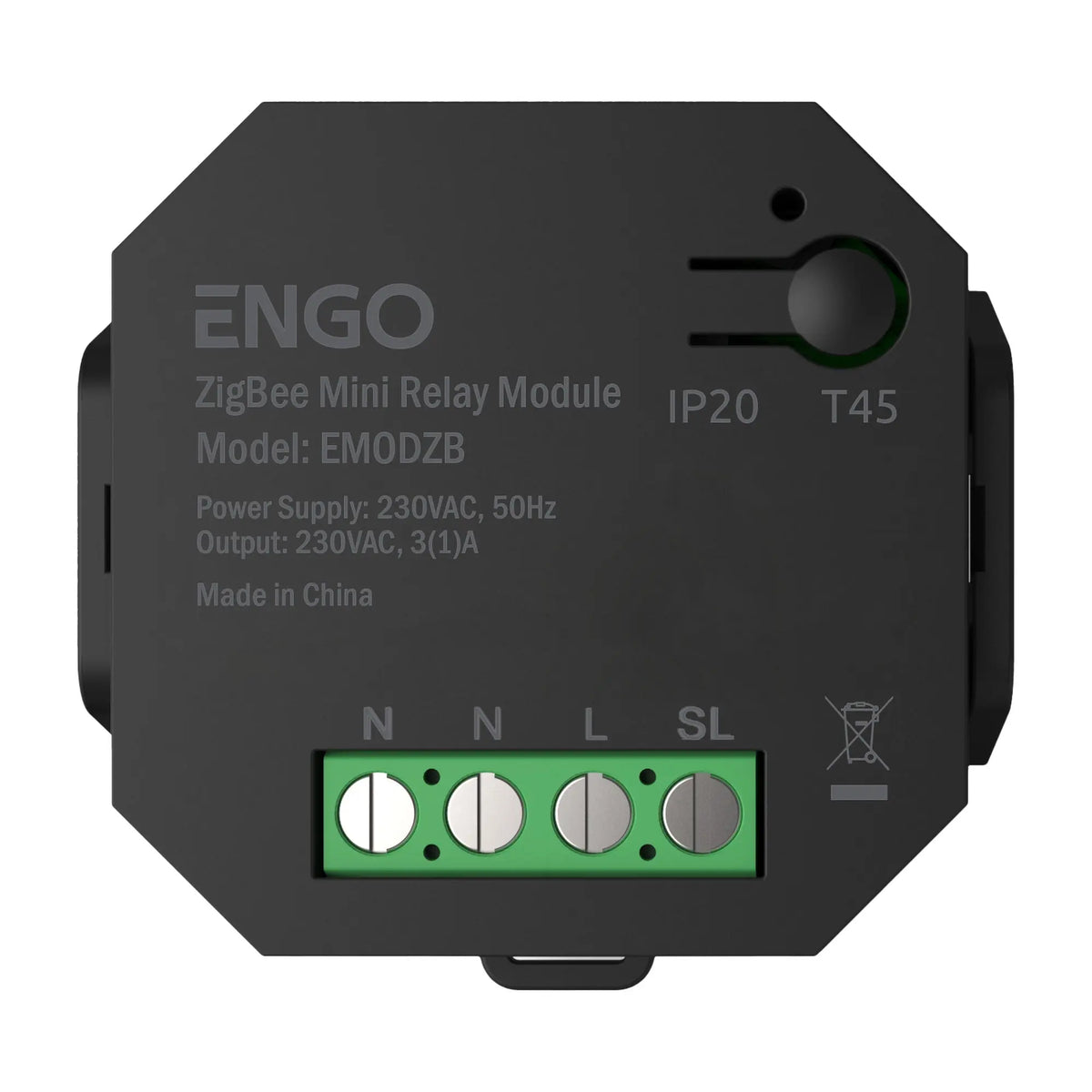

The ENGO EMOD-ZB is a compact ZigBee 3.0 relay module that gives a wired heating system a wireless switching point. Wired to a 230V pump, zone valve, thermostatic actuator or wiring centre, it lets an ENGO EONE or E25 thermostat call for heat over ZigBee instead of a control cable. This is useful when adding a zone to an existing manifold, retrofitting a room with no wiring route, or bringing a hard-wired control box under app control. At 40 x 40 x 20 mm it fits inside a standard back box, and the DIN rail holder supplied in the box lets it clip straight into a manifold cabinet alongside the wiring centre. Power is 230V AC 50Hz with a 230V AC switched output rated 3(1)A. An LED shows operating status, and a single function button handles manual switching, binding and factory reset. Pairing works two ways. Added to a ZigBee 3.0 gateway such as the ENGO EGATE-PRO, the module appears in the ENGO Smart or Tuya Smart app for scheduling, remote switching and Amazon Alexa or Google Home voice control. Used with ENGO binding, it links directly to a compatible thermostat and keeps switching whether the system is online or offline, so the heating does not stop because the broadband has. Every powered module also works as a ZigBee repeater, acting as a mains-powered router that extends mesh range and steadies the signal to thermostats sitting further from the gateway. In a larger property that is often the difference between a reliable zone and an intermittent one. In the box: EMOD-ZB module, DIN rail mounting holder, quick guide. A ZigBee 3.0 gateway is required for app control and is sold separately. Installation must be carried out by a qualified electrician. Indoor use only.
