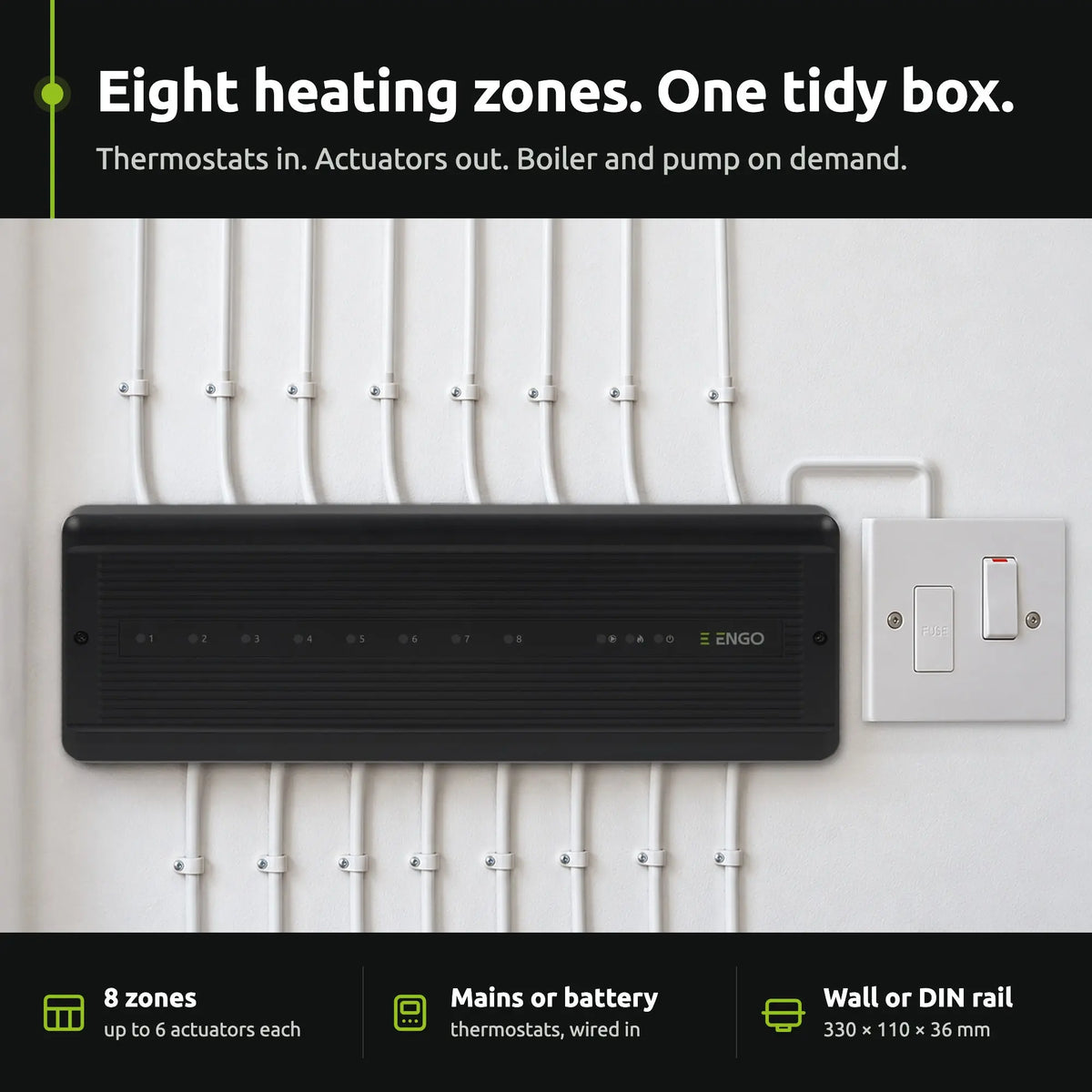

• Reliable 8 Zone Control: ECB8-230 control box manages up to 8 heating zones independently with LED indicators, ensuring accurate temperature regulation across residential spaces

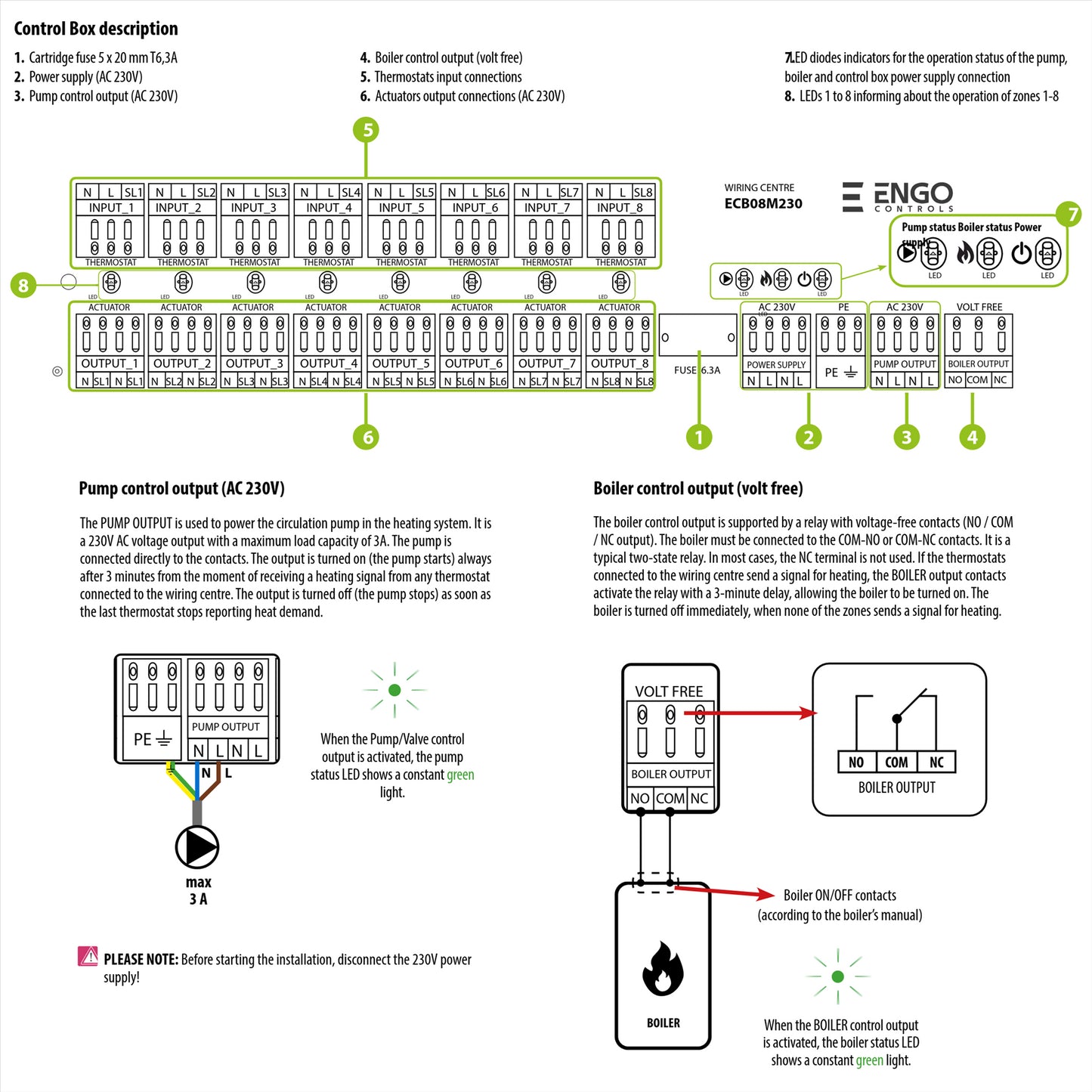

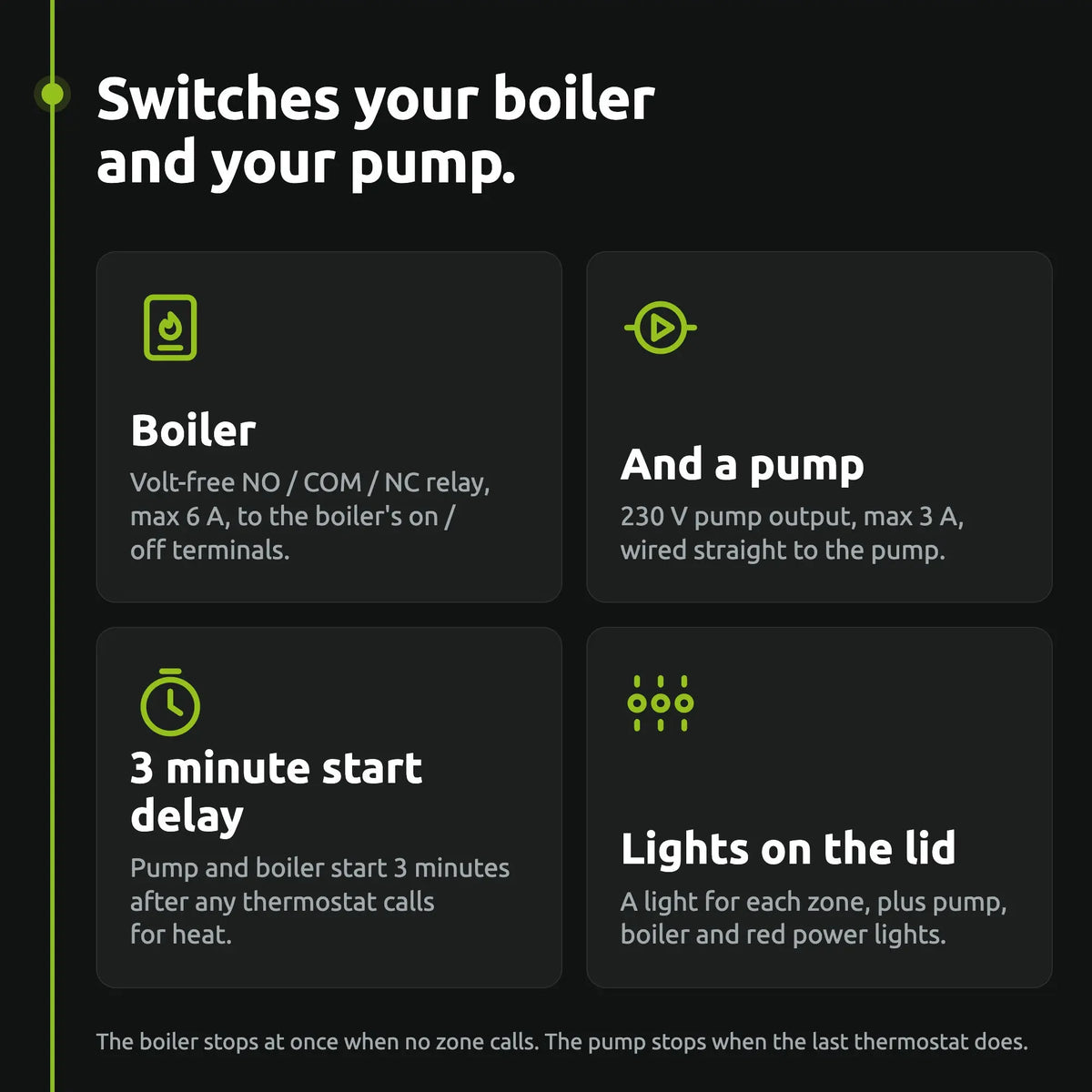

• Pump & Boiler Integration: Equipped with 230V pump output and volt-free boiler relay, this ECB8-230 wiring centre ensures seamless connection for efficient and reliable heating control

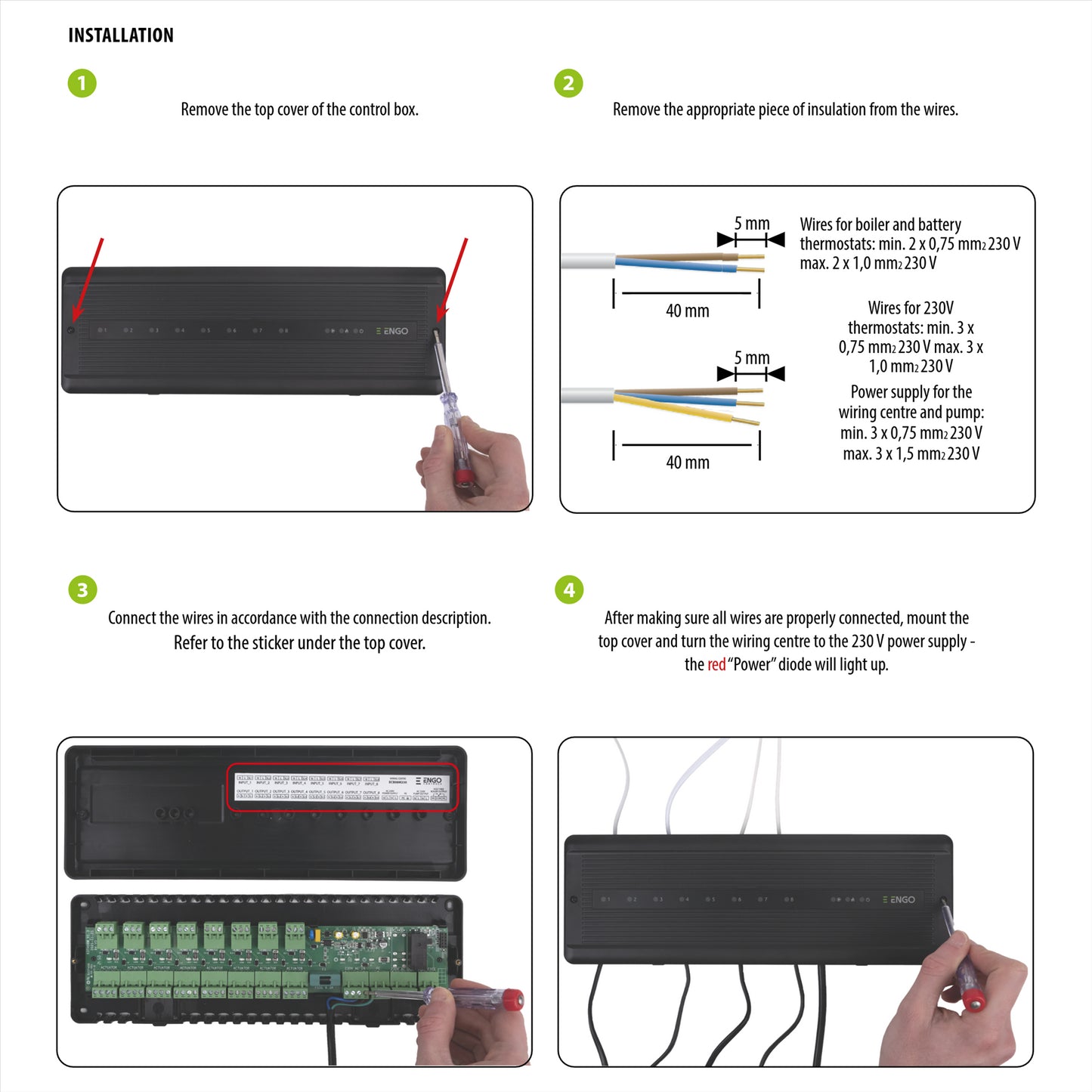

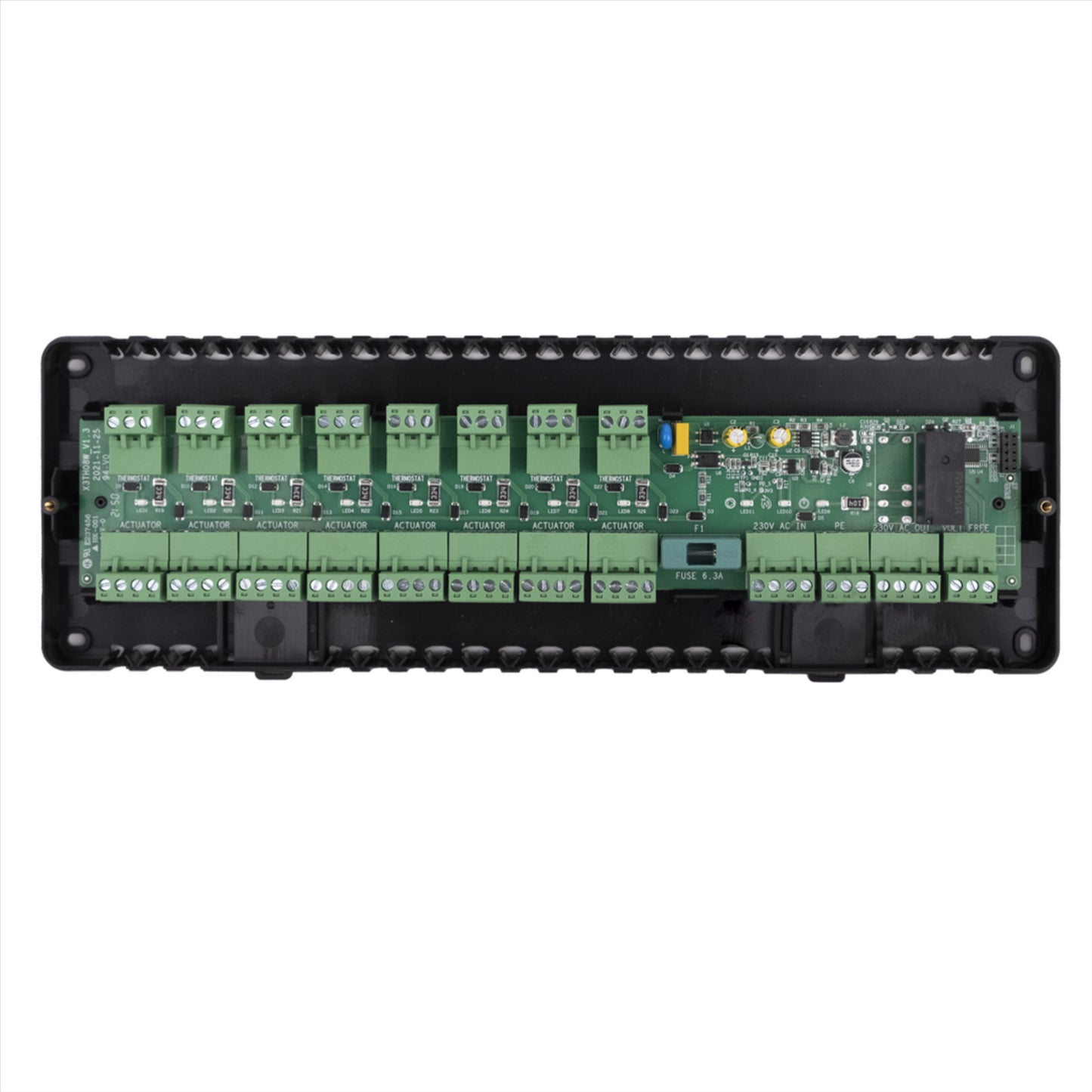

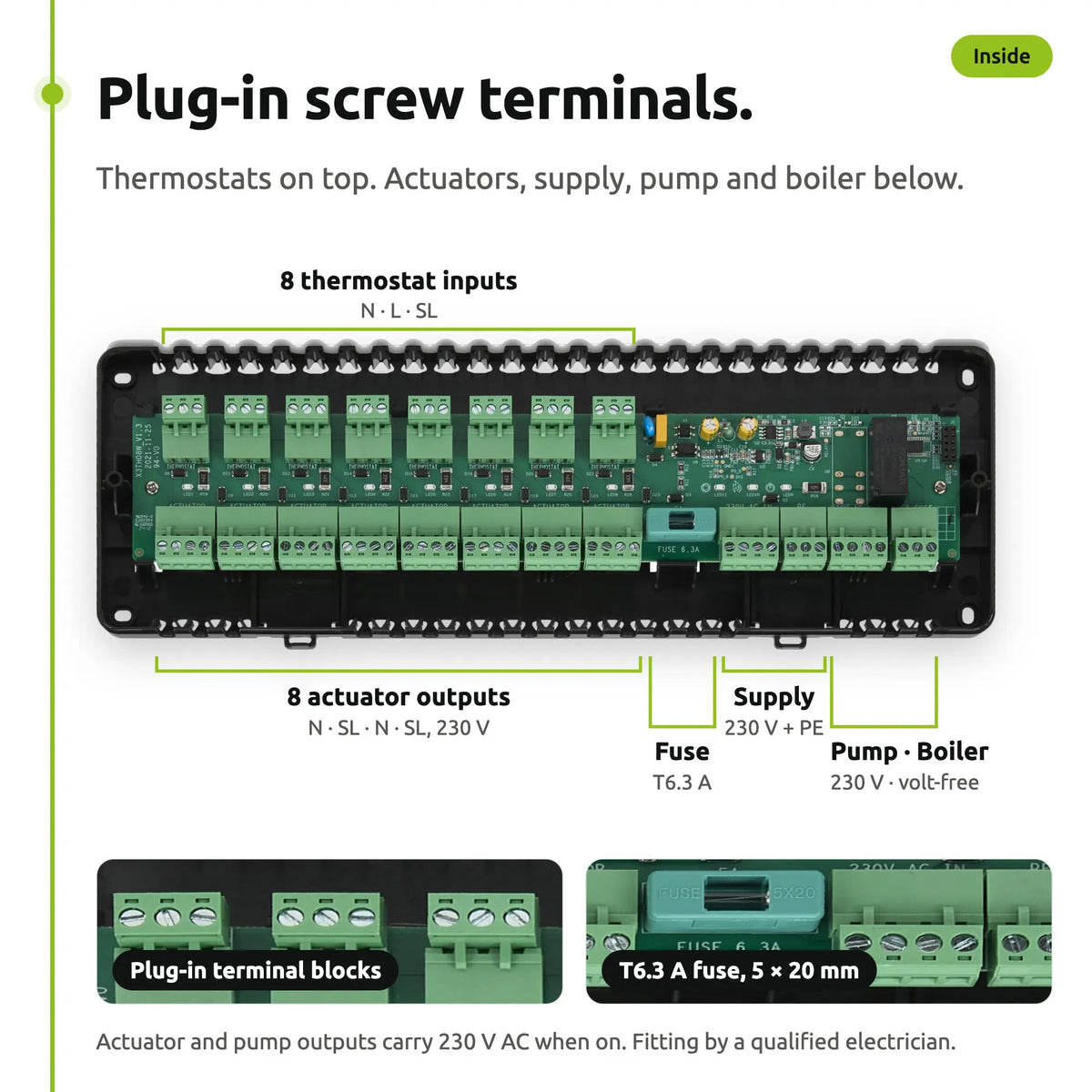

• Quick Installation Design: Pluggable terminal blocks allow fast, secure wiring, reducing setup time for installers while ensuring consistent connections for long-term dependable use

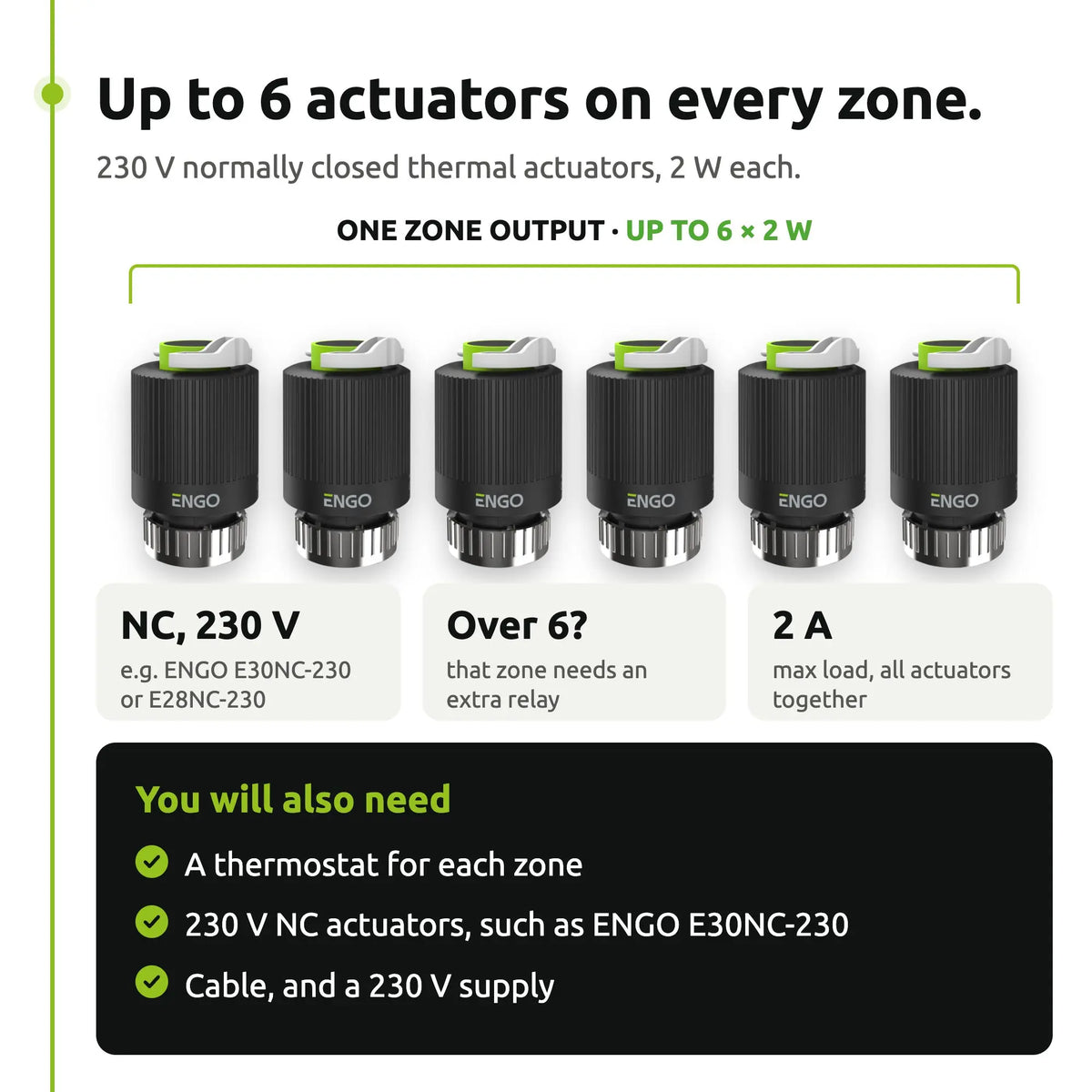

• Supports NC Actuators: ECB8-230 is compatible with normally-closed actuators up to 6 per zone, ideal for underfloor heating systems requiring flexible and stable configuration
• Enhanced Safety Protection: Built-in 6.3A ceramic fuse and compliance with EMC, LVD and RoHS directives safeguard ECB8-230 wiring centre and connected components from overload damage

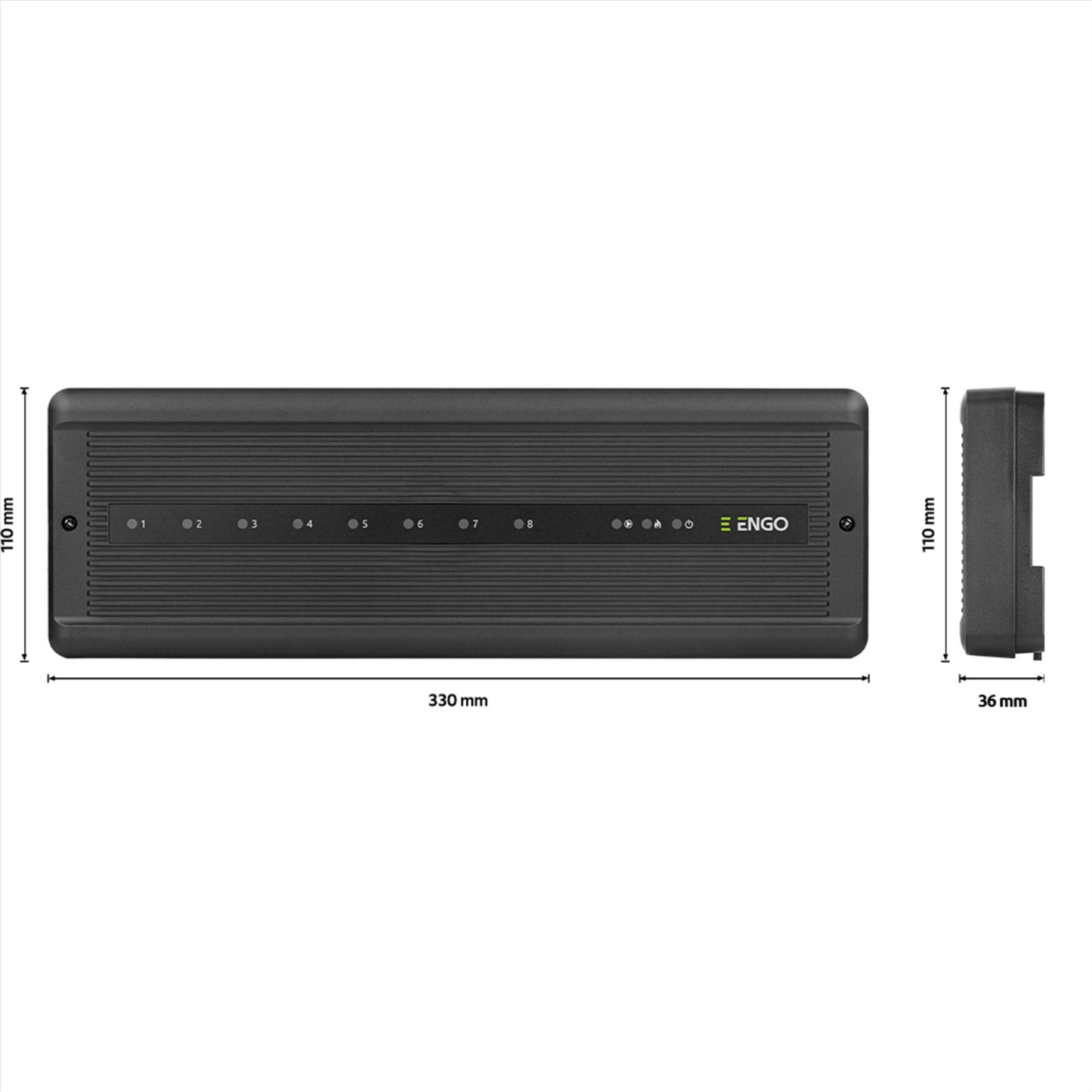

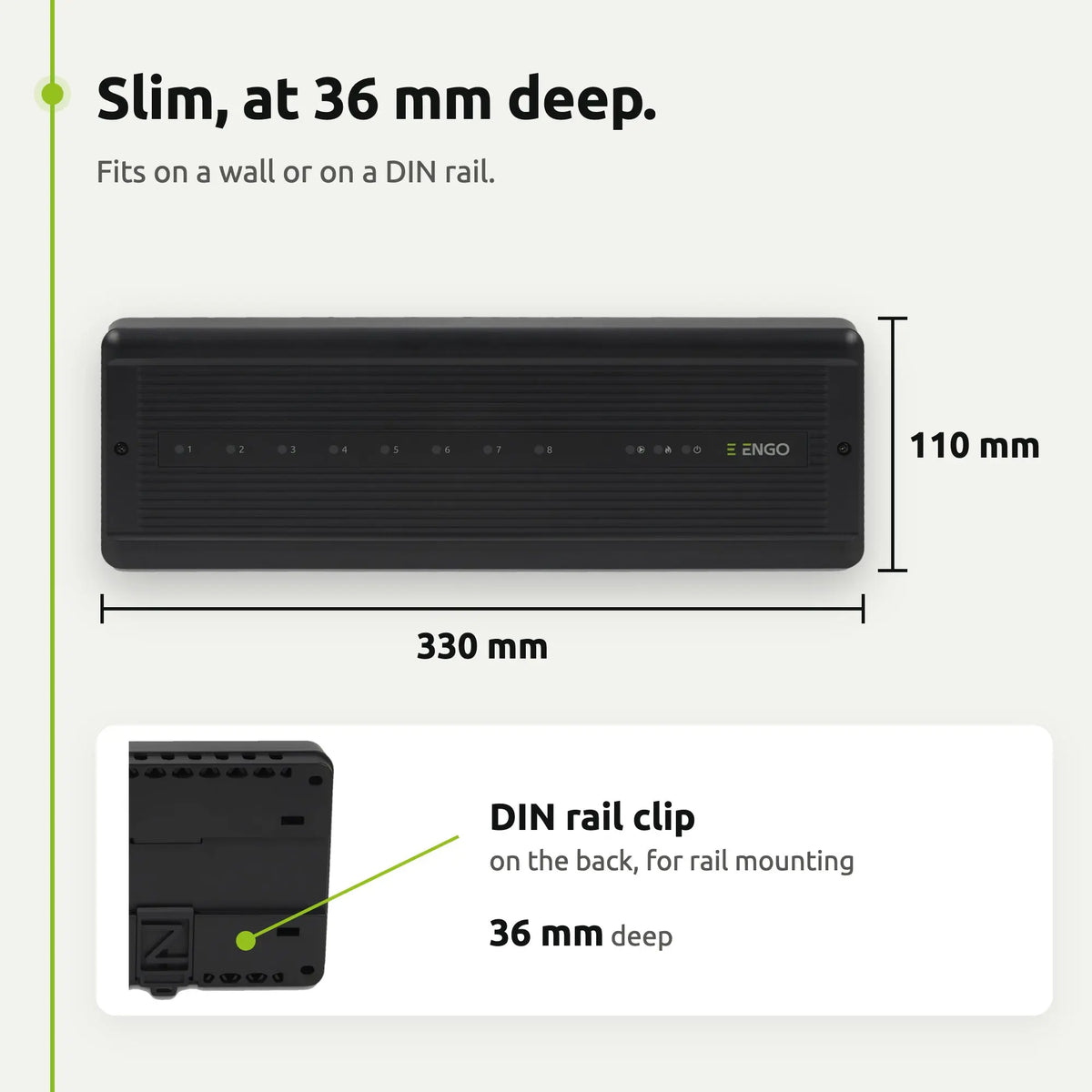

• Durable & Compact Build: With a slim 327 x 110 x 37 mm housing, ECB8-230 is designed for indoor installations, saving space while delivering reliable long-term heating system performance

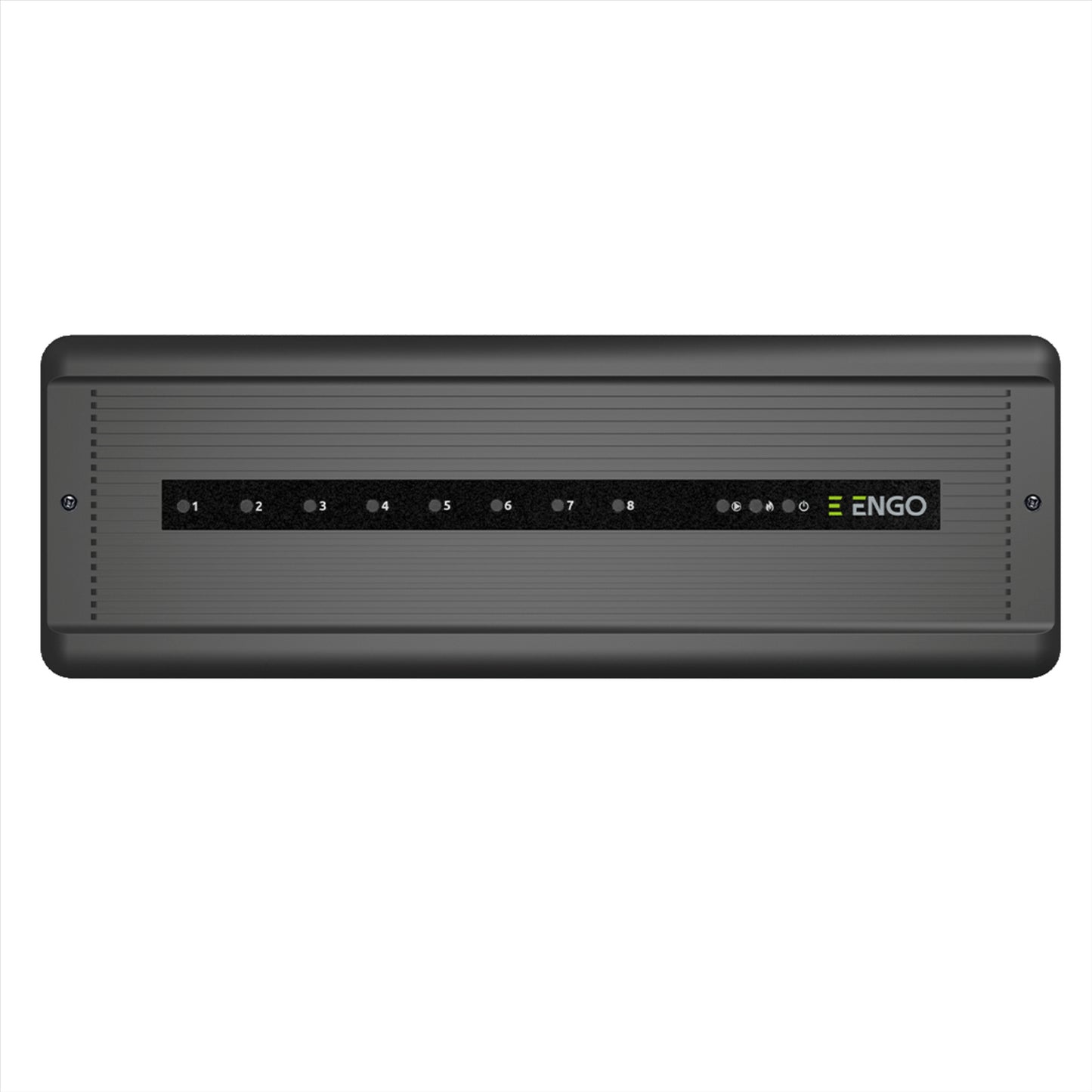

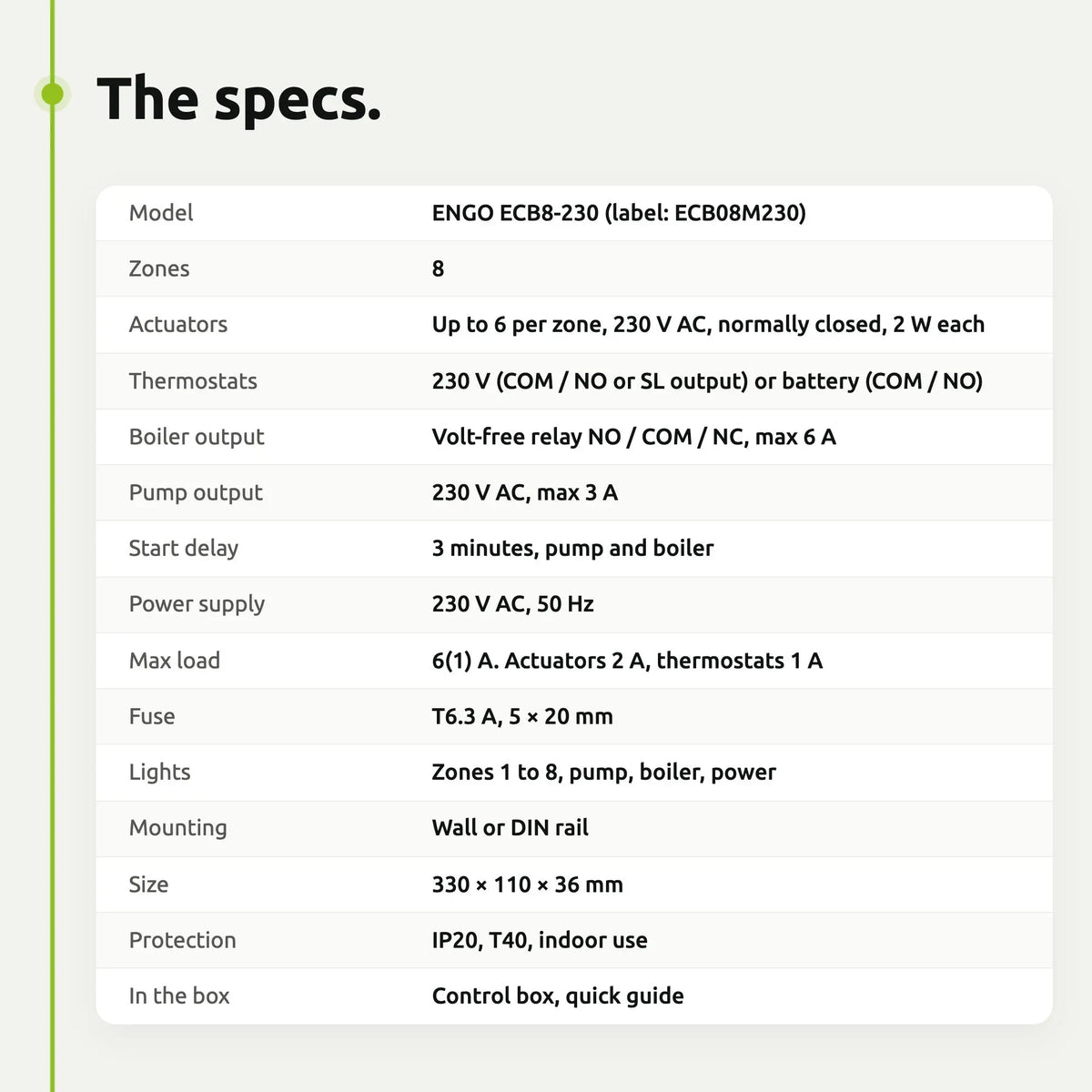

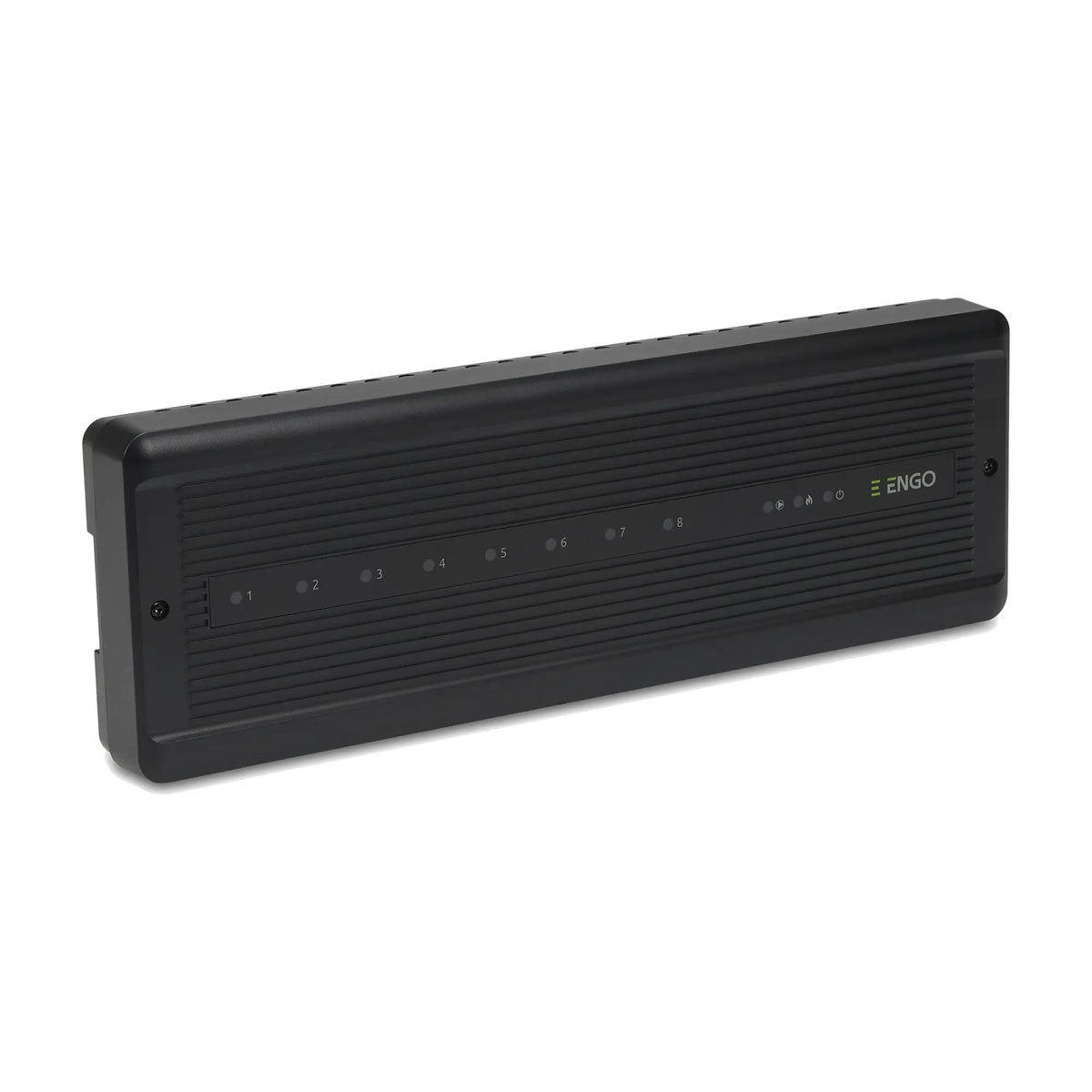

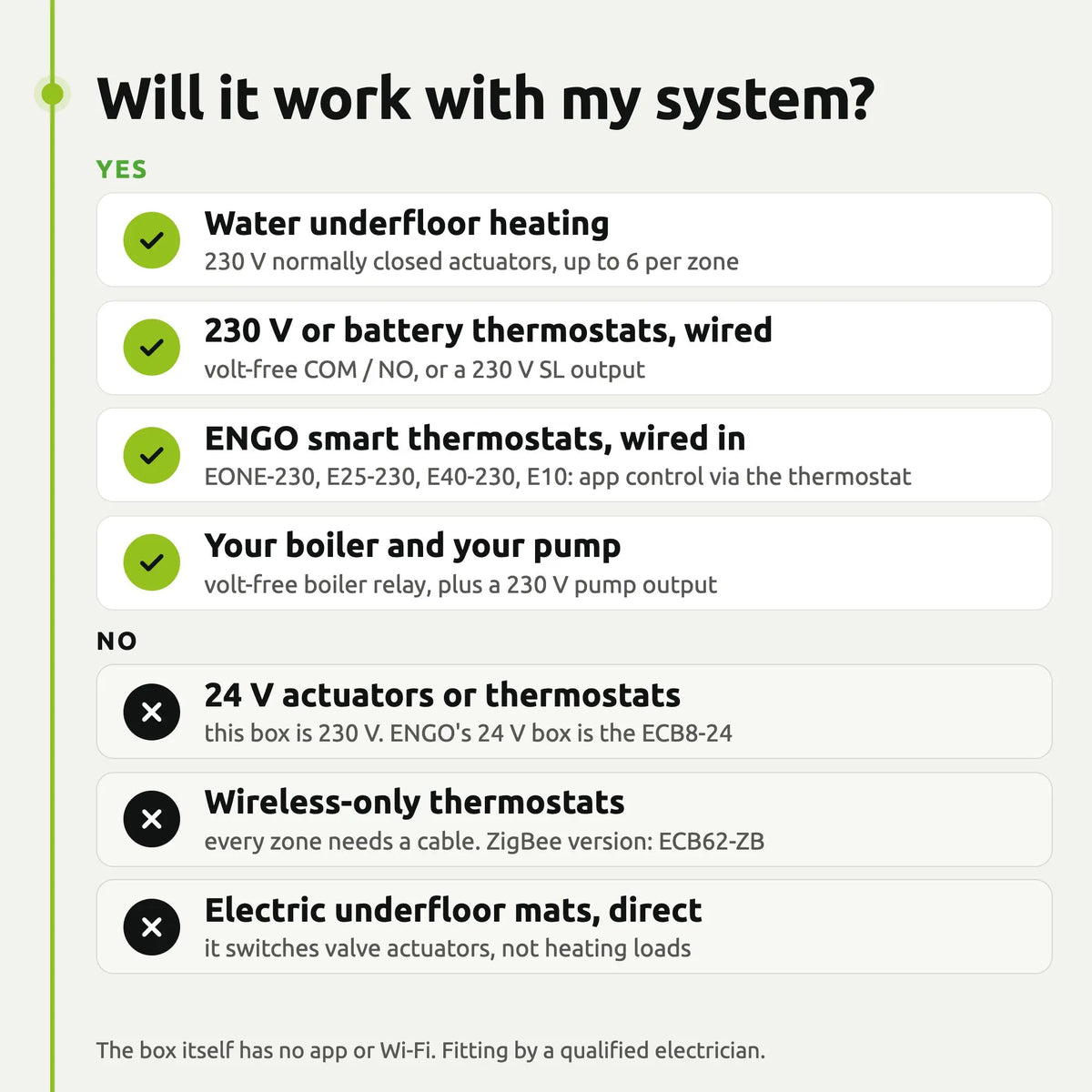

The ENGO ECB8-230 Wired Control Box is the central element of an underfloor heating control system, offering reliable management across up to eight zones. Designed for precision and ease of use, the ECB8-230 provides clear LED indicators for each zone, ensuring accurate monitoring and control of room temperatures in residential or light commercial environments. This wiring centre integrates seamlessly with thermostats, actuators, pumps, and boilers, supporting a wide range of underfloor heating configurations. Equipped with 230V AC actuator outputs, a volt-free boiler relay, and a 230V pump output with delayed start, the ECB8-230 ensures dependable and efficient operation while helping to extend system life. Supporting up to six normally-closed actuators per zone, it offers excellent flexibility for new builds, extensions, or retrofit heating projects. Engineered for professional installers, the ECB8-230 features pluggable terminal blocks for quick, secure wiring connections. Its safety-first design includes a replaceable 6.3A ceramic fuse and full compliance with EMC, Low Voltage, and RoHS directives. The compact 327 x 110 x 37 mm housing saves valuable installation space while maintaining robust durability. Whether installed in a single-family home or a larger multi-zone system, the ENGO ECB8-230 delivers efficient heating control, simplified installation, and reliable long-term performance.
