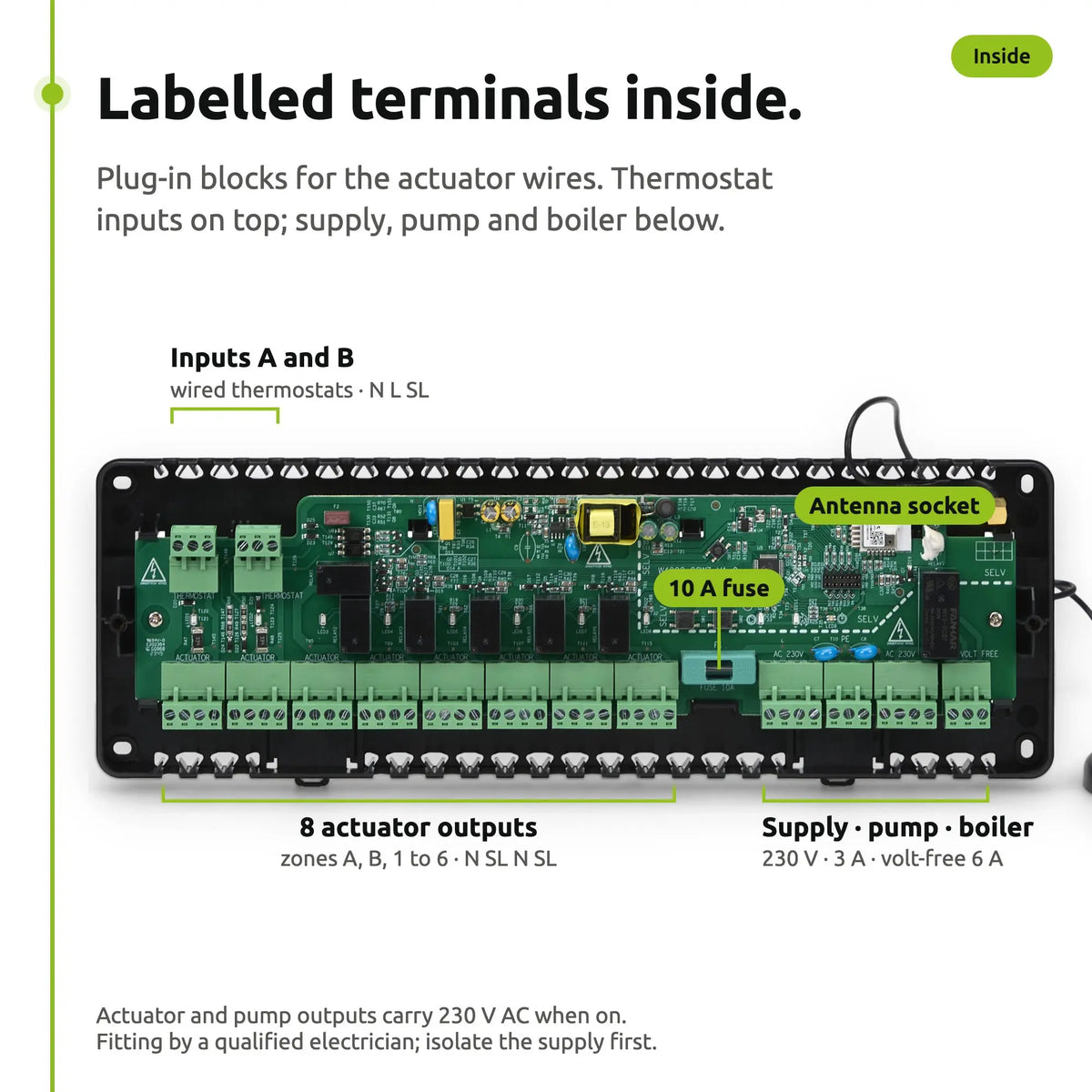

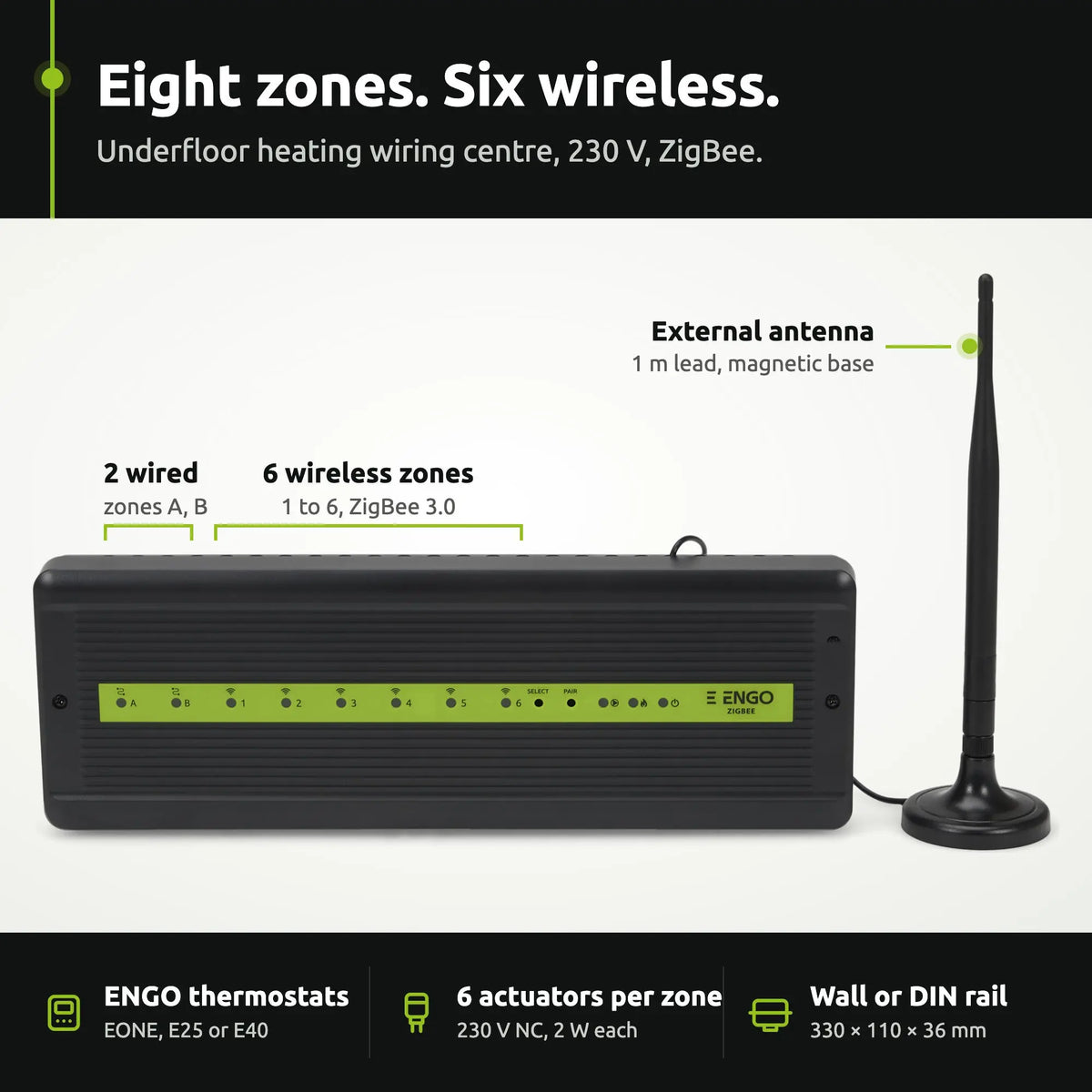

• Supports up to eight heating zones (six wireless ZigBee 3.0 zones plus two wired zones) for underfloor heating manifolds and multi-zone systems

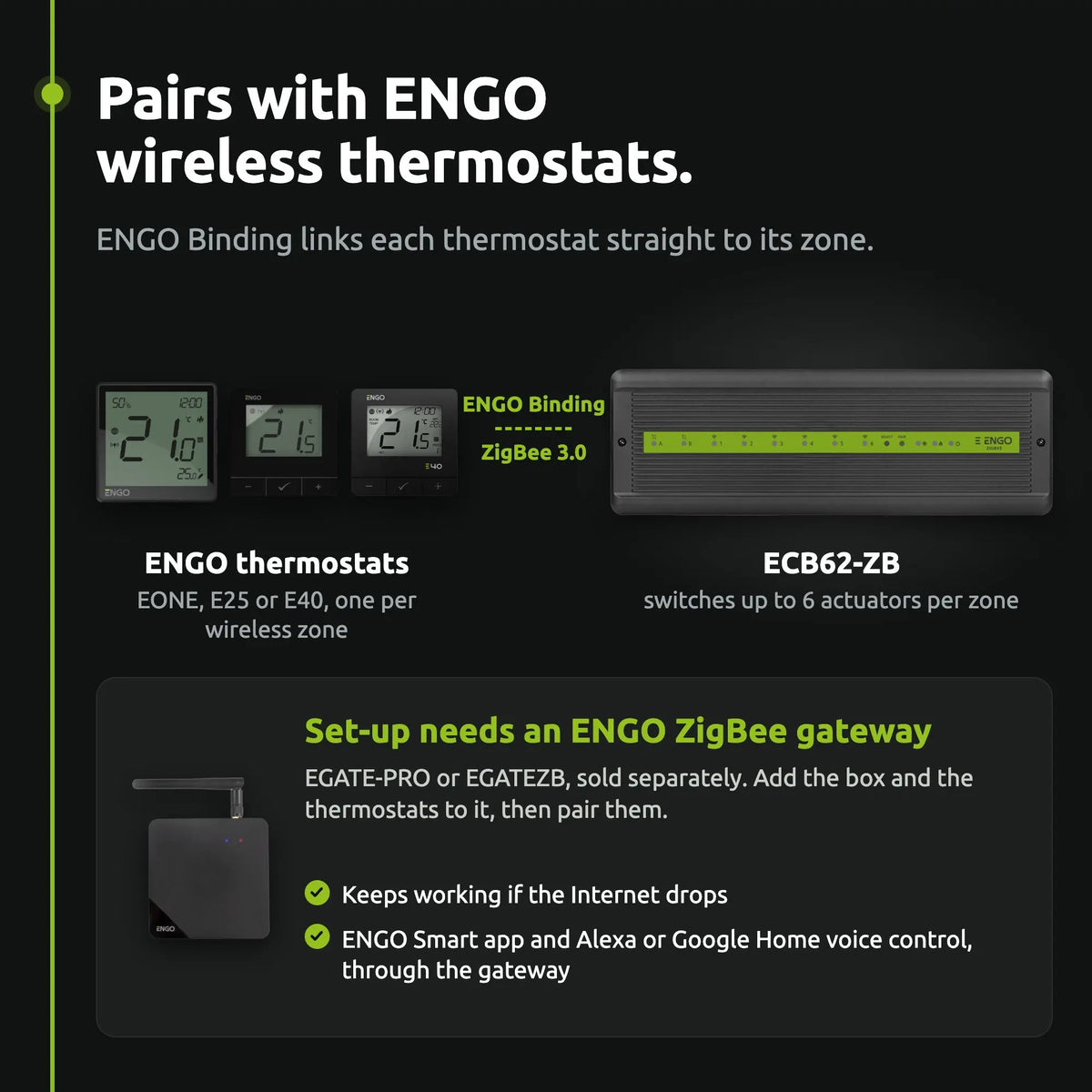

• Wireless communication uses ZigBee 3.0 technology enabling connection with compatible ENGO thermostats and app based control when paired with the ENGO EGATE-PRO gateway
• Includes outputs for 230V circulation pump control and a voltage free boiler output (NO/COM) to integrate pump and heat source switch off delays (0-15 minutes)
• Capable of managing up to 50 thermoelectric actuators (NC type) across the zones making it suitable for larger underfloor heating installations

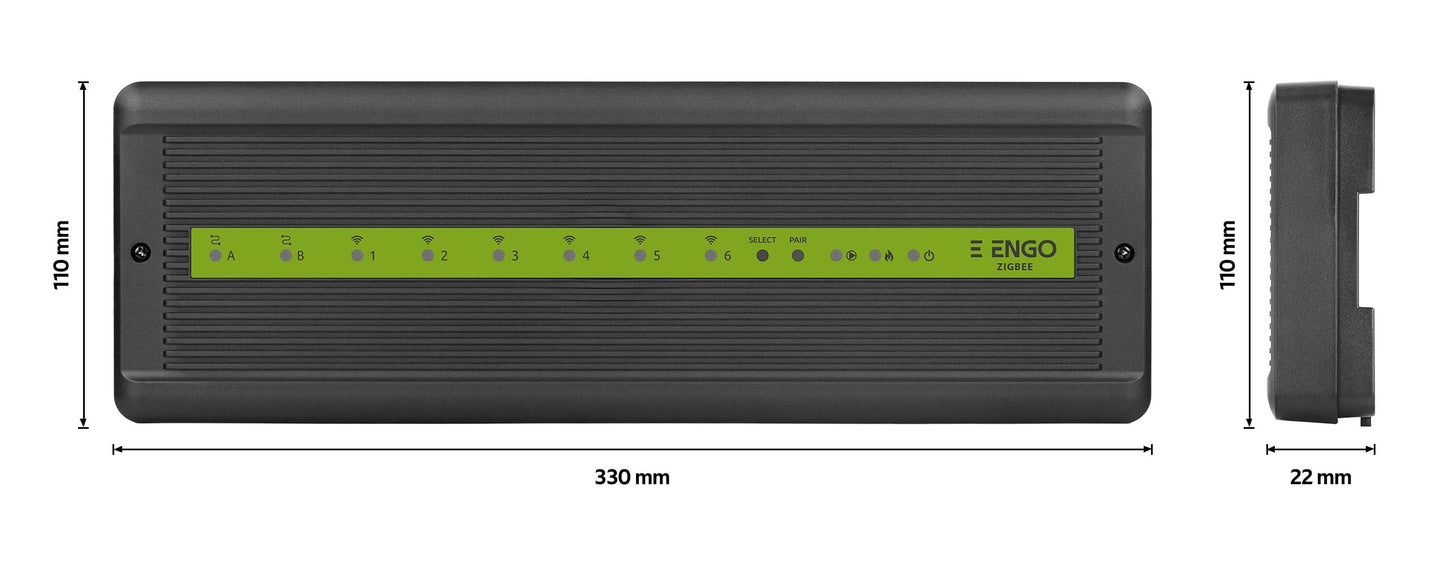

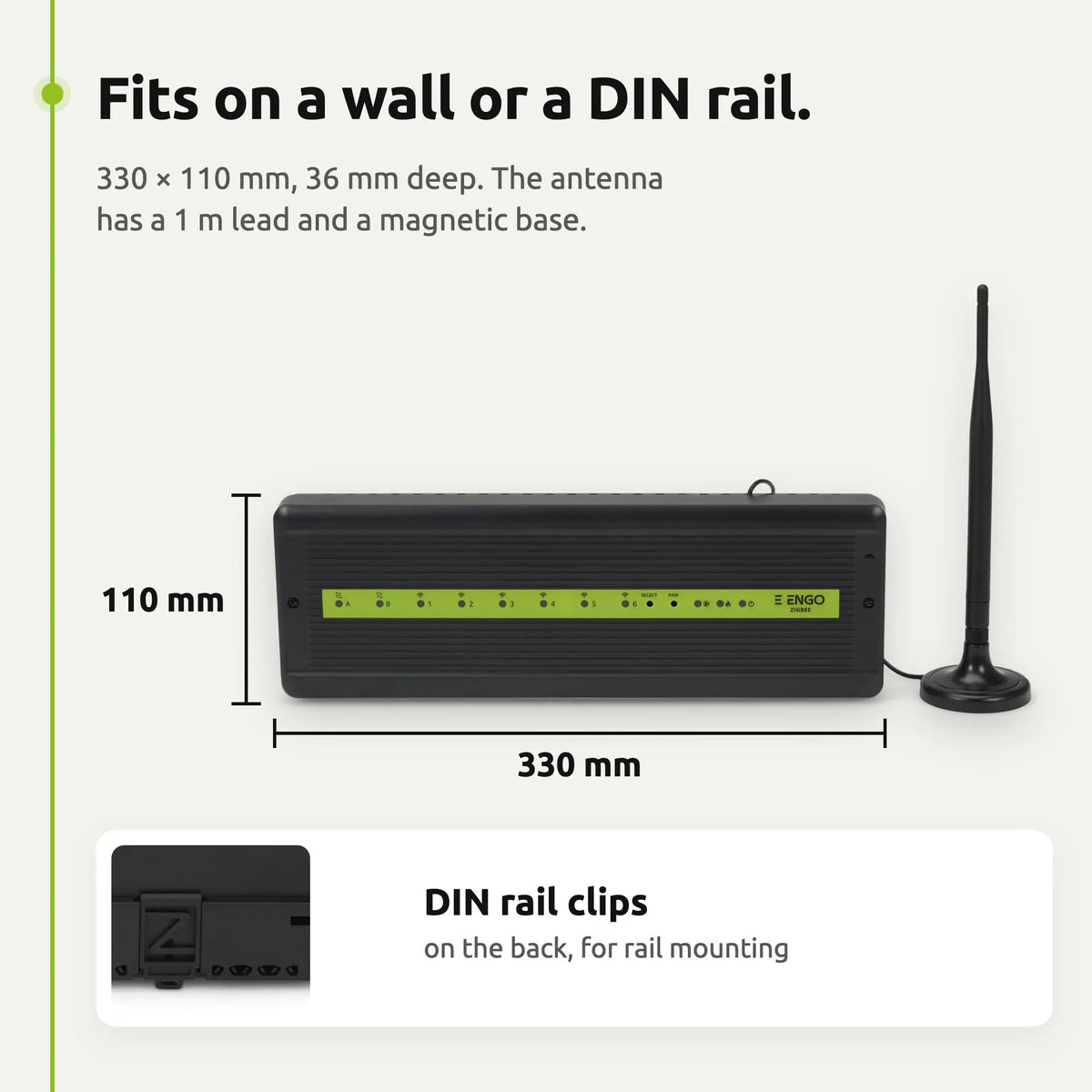

• Mounts on a DIN rail or flat surface, power supply 230V AC 50 Hz with max current 10 (1) A and dimensions 330 x 110 x 36 mm for compact installation

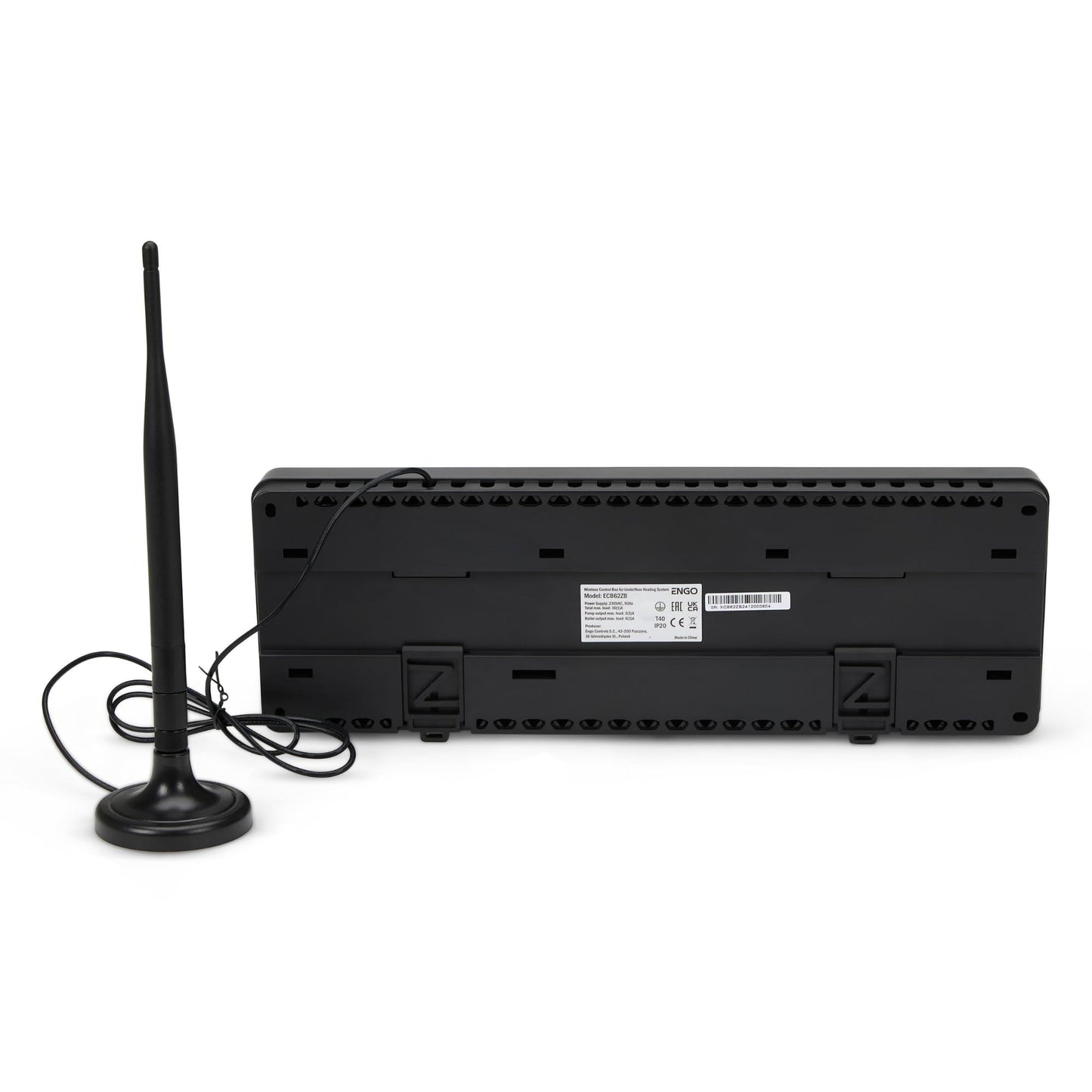

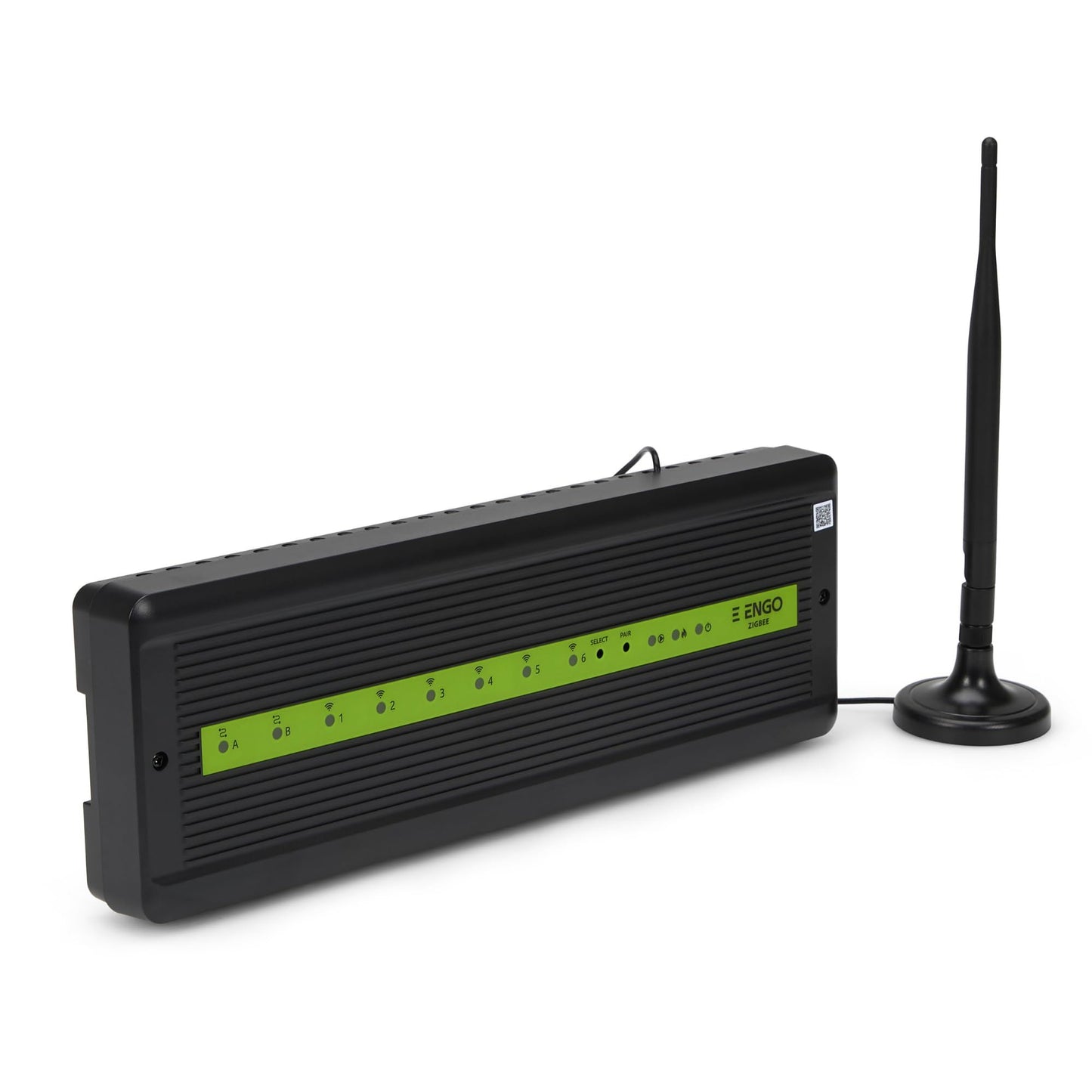

• Magnetic mount external antenna included (1m cable) to extend wireless range and improve zone communication in complex installations

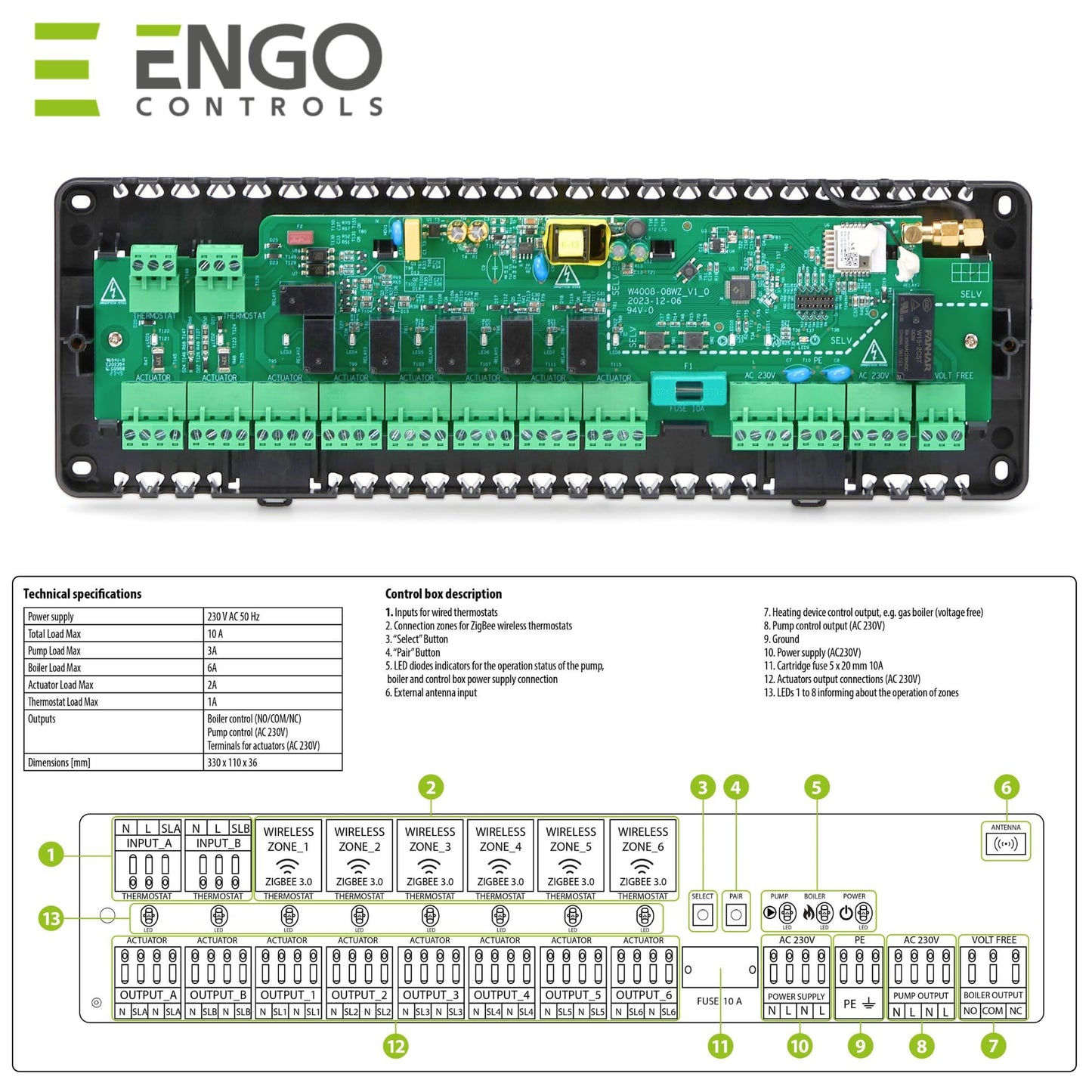

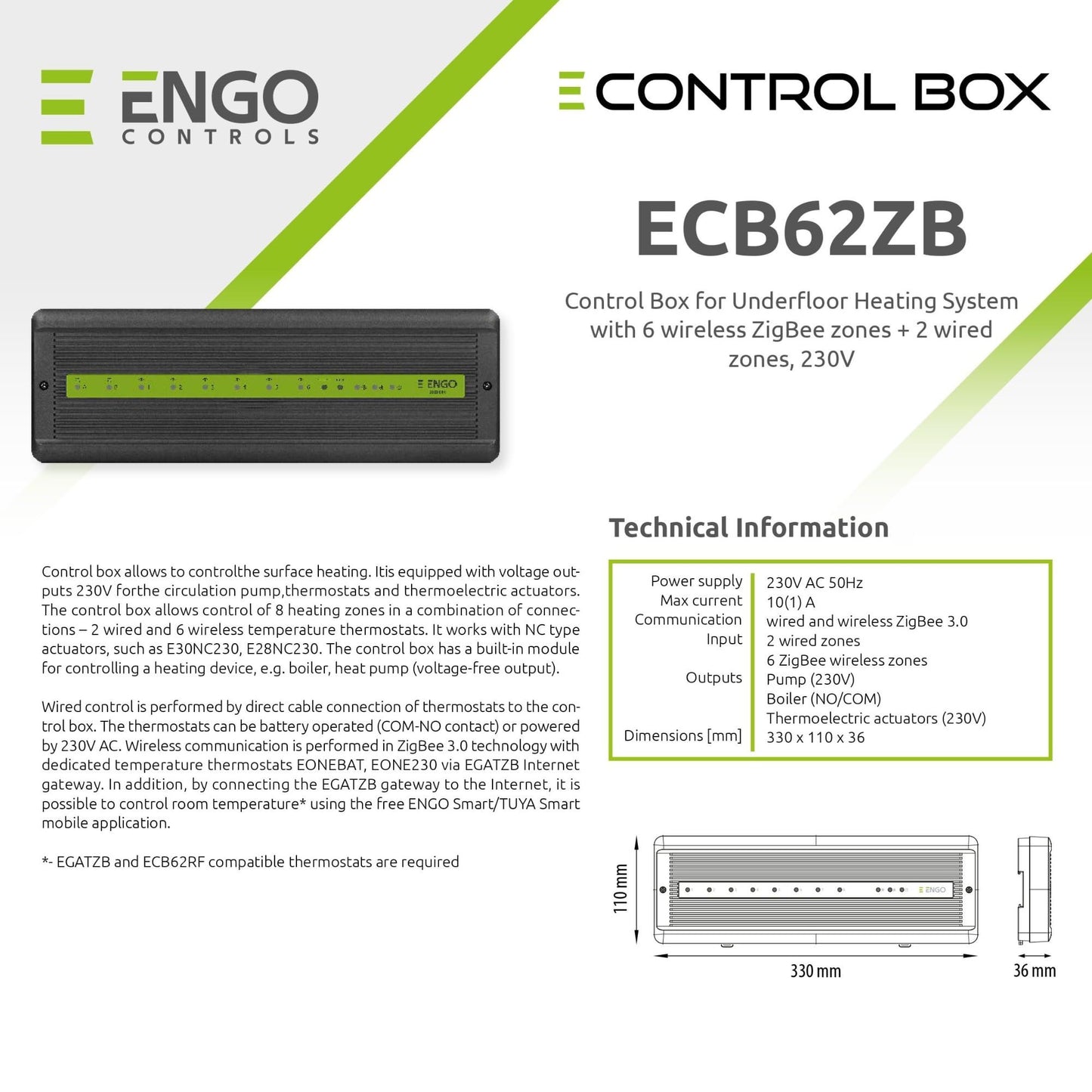

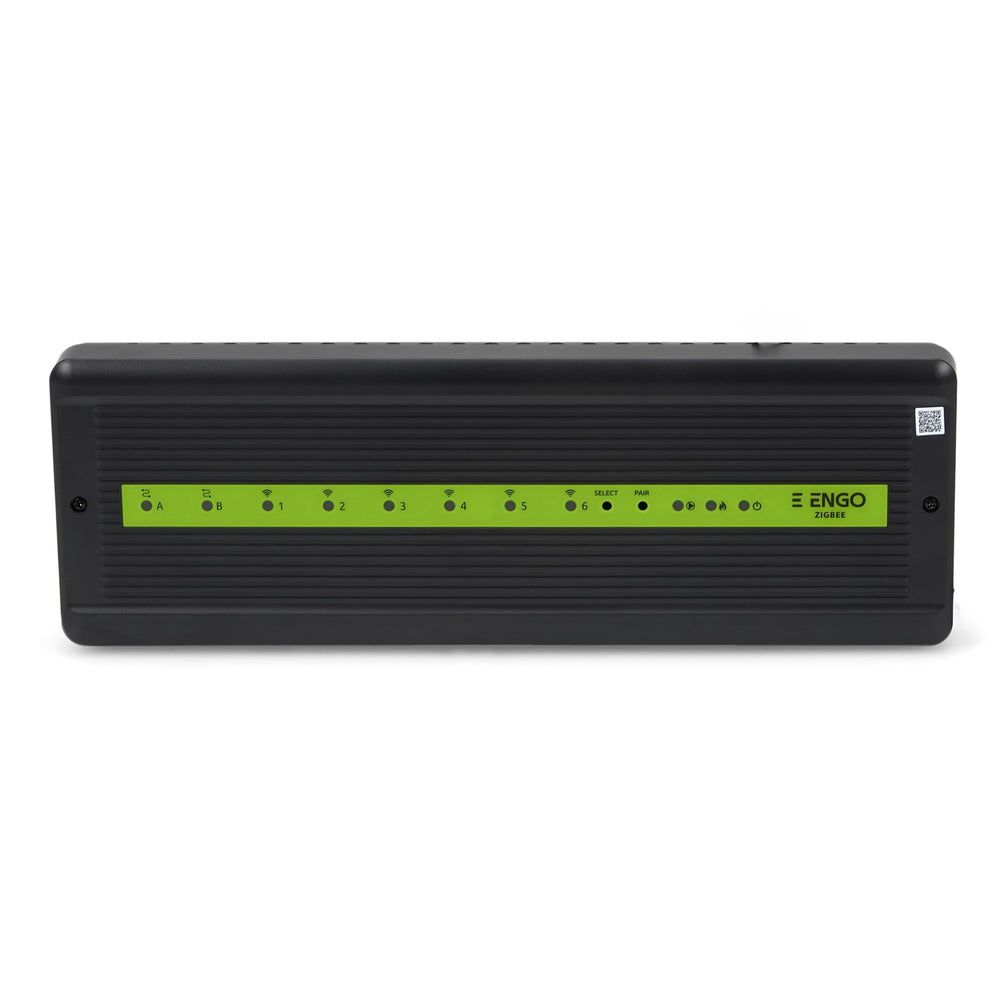

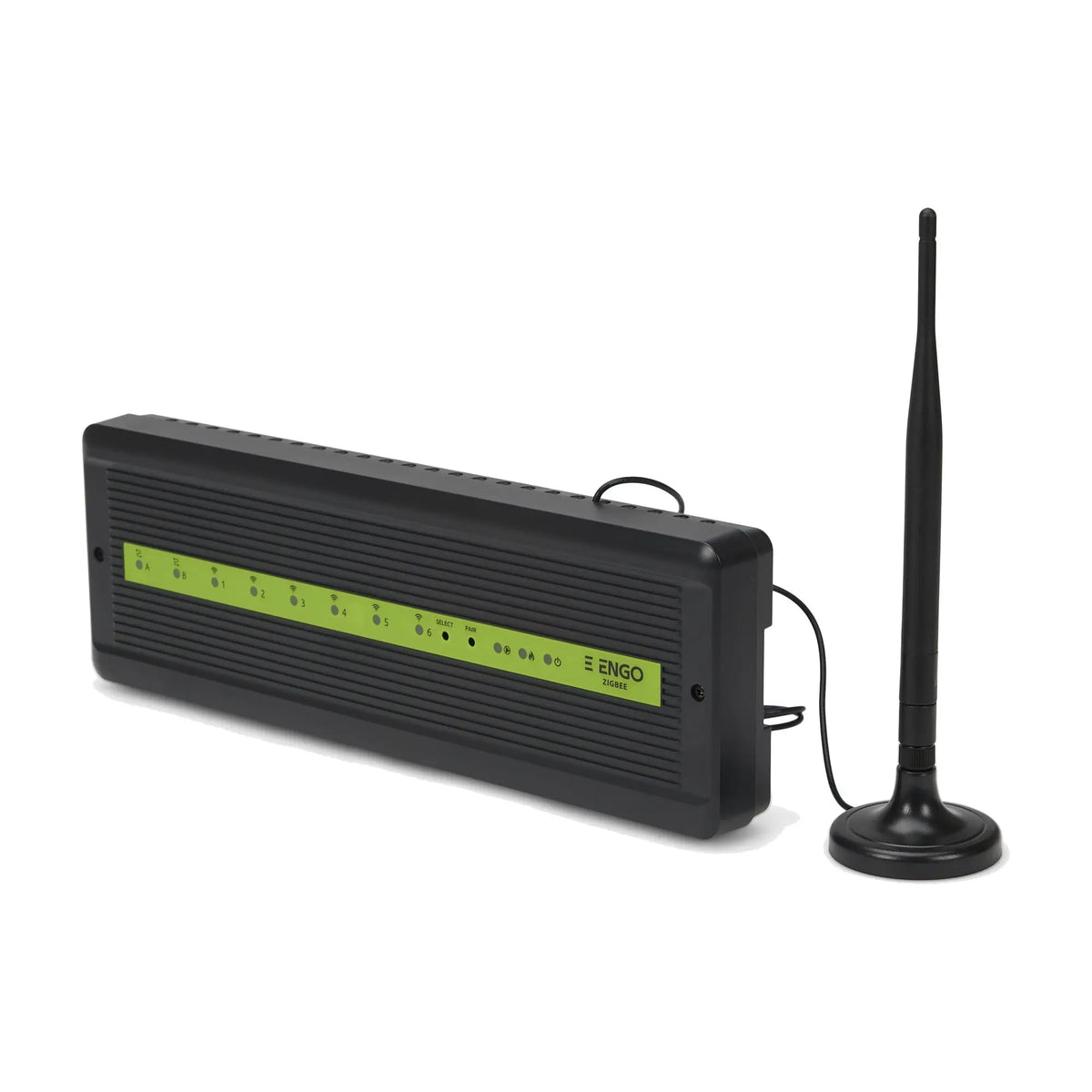

The ENGO ECB62-ZB Wireless Wiring Centre offers a scalable solution for multizone underfloor heating control by combining wired and wireless zone management. Six wireless zones operate via ZigBee 3.0 while two additional zones handle wired thermostat inputs, allowing up to eight zones to be managed from one control box. The wiring centre supports up to 50 thermoelectric actuators (NC type) which makes it well suited for larger homes or commercial installations requiring zone-by-zone control. It also incorporates dedicated outputs for a 230V circulation pump and a voltage free boiler or heat source interface, with adjustable shutdown delay settings from 0 to 15 minutes to optimise system efficiency and protect components. Installation is made flexible through its DIN rail or flat surface mounting and the inclusion of a magnetic mount external antenna (1 m cable) to enhance wireless reception. The unit is powered by 230V AC 50Hz, handles up to 10 (1) A and measures 330 x 110 x 36 mm, making it suitable for standard heating control enclosures or plant rooms. When paired with a compatible ENGO EGATE-PRO ZigBee gateway and the ENGO Smart / TUYA Smart mobile app, remote monitoring and control of zones can be achieved, enabling tailored heating schedules and seamless integration into smart heating systems.

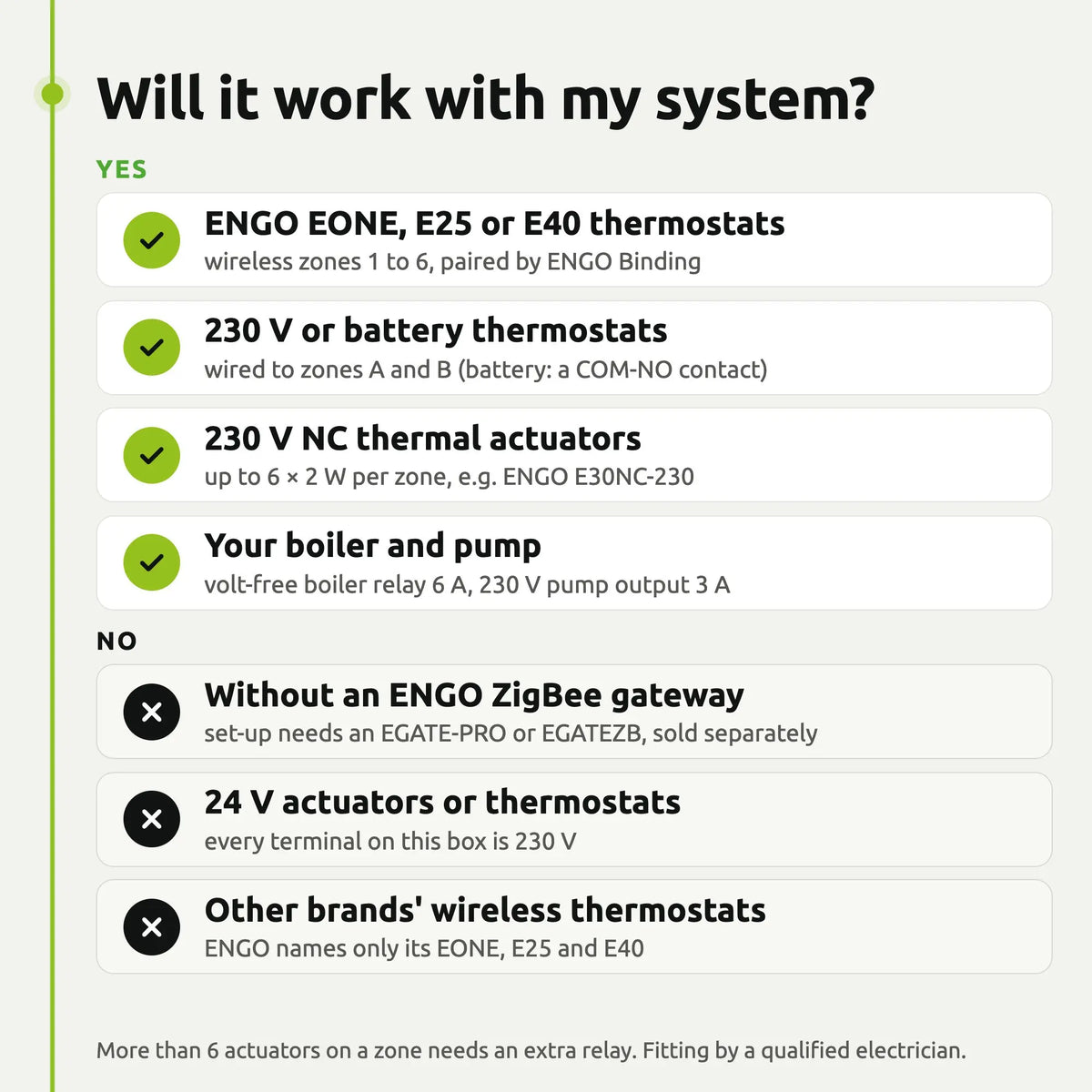

This will work with all wireless ENGO Zigbee Thermostats like the EONE-BAT and E40-BAT range. Please contact us for more information or for help on how to specify your smart multi zone heating system with Engo.
