• Complete valve, not just a head: Supplied as the HP22 set, an HPV22 brass shoe valve body together with the HPA2 spring return actuator, so nothing else needs ordering
• 22 mm external compression: Fits standard 22 mm copper heating pipework, and flow through the two port body can run in either direction to suit the pipe run
• Self cleaning shut off shoes: The high capacity body carries two positive shut off shoes that seat tightly when the zone is switched off and resist scale pick up
• Replaces other makes as well: Danfoss list the head as a direct in service replacement for Landis and Gyr SK2, Pegler SK2, Sunvic SZ1301 and Potterton PMV2
• Manual lever and one metre lead: A lever opens the valve by hand for filling and venting, with a volt free SPST auxiliary switch and cable in standard wire colours
• Verified specification: Kvs 8.2 cubic metres per hour, 10 bar maximum working pressure, 1.0 bar differential, 95 degrees Celsius maximum flow and 230 V AC at 6 watts

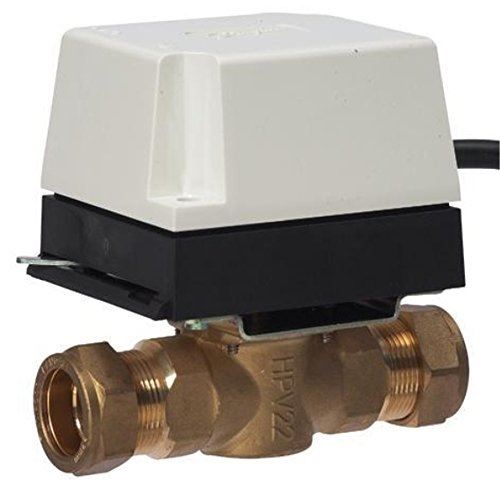

The LavaTap HP22 is a complete 22 mm two port motorised zone valve for domestic and light commercial heating circuits. It is supplied as a matched set, the HPV22 brass shoe valve body together with the Danfoss HPA2 spring return actuator, so there is no separate head to order. The actuator fits to the body on site using the screws supplied, which keeps the valve serviceable later without disturbing the pipework. This is the point worth checking before you buy: many products in this category are the actuator head only, and the difference is not obvious until the parcel arrives. The HP22 is the whole valve. A worn, seized or leaking valve is replaced in one go, and if only the head fails later the HPA2 can be changed on its own. In an S plan system a pair of two port valves gives the radiator circuit and the hot water cylinder independent control, so each zone only draws heat when its thermostat calls for it. Connections are 22 mm external compression to suit standard UK copper pipework, flow through the body can run in either direction, and the high capacity body carries two self cleaning positive shut off shoes. The actuator is normally closed with spring return, so removing power returns the valve to closed. A manual lever opens it by hand for filling, draining and commissioning. One metre of cable is supplied in standard colours, brown live, blue neutral, grey and orange, with a volt free SPST auxiliary switch to bring on the boiler and pump through the wiring centre. Specification: Kvs 8.2 cubic metres per hour. Maximum working pressure 10 bar. Maximum differential pressure 1.0 bar. Maximum flow temperature 95 degrees Celsius. Supply 230 V AC plus or minus 15 percent, 50 to 60 Hz, 6 watts. Auxiliary switch rated 3 amps resistive and 1 amp inductive. Opening time under 35 seconds, closing time under 20 seconds. IP40 enclosure. Also suitable for chilled water systems using a 60/40 glycol and water mix. Two year manufacturer warranty. Fitment: Danfoss list this actuator as a direct in service replacement for the Landis and Gyr SK2, the Pegler Sunvic SZ1301 and SZ2301, and the Potterton PMV2. The HPV22 body corresponds to the Landis and Gyr LL8222, the Sunvic EML3454 and the Potterton PMV2. In the box: one HPV22 valve body, one HPA2 actuator, fixing screws and installation instructions.
