• 22mm compression fit: Two 22mm compression elbow isolating ball valves fit standard 22mm copper central heating pipework, best fitted on the boiler return
• Two-stage cleaning: A 12000 Gauss magnet core holds black magnetite sludge while the stainless steel mesh strainer traps non-magnetic debris such as scale, sand and swarf
• Complete fitting kit: Filter body, two 22mm isolating ball valves, a drain valve with tethered cap, a bleed vent and a lid removal tool all come in the box
• Fits any orientation: Install on vertical or horizontal pipe runs in four positions to suit the space near the boiler, leaving clearance above the lid for servicing
• Easy to service: Close both valves, undo the lid with the supplied tool and wipe the magnet and mesh clean, while the drain valve and bleed vent help minimise mess

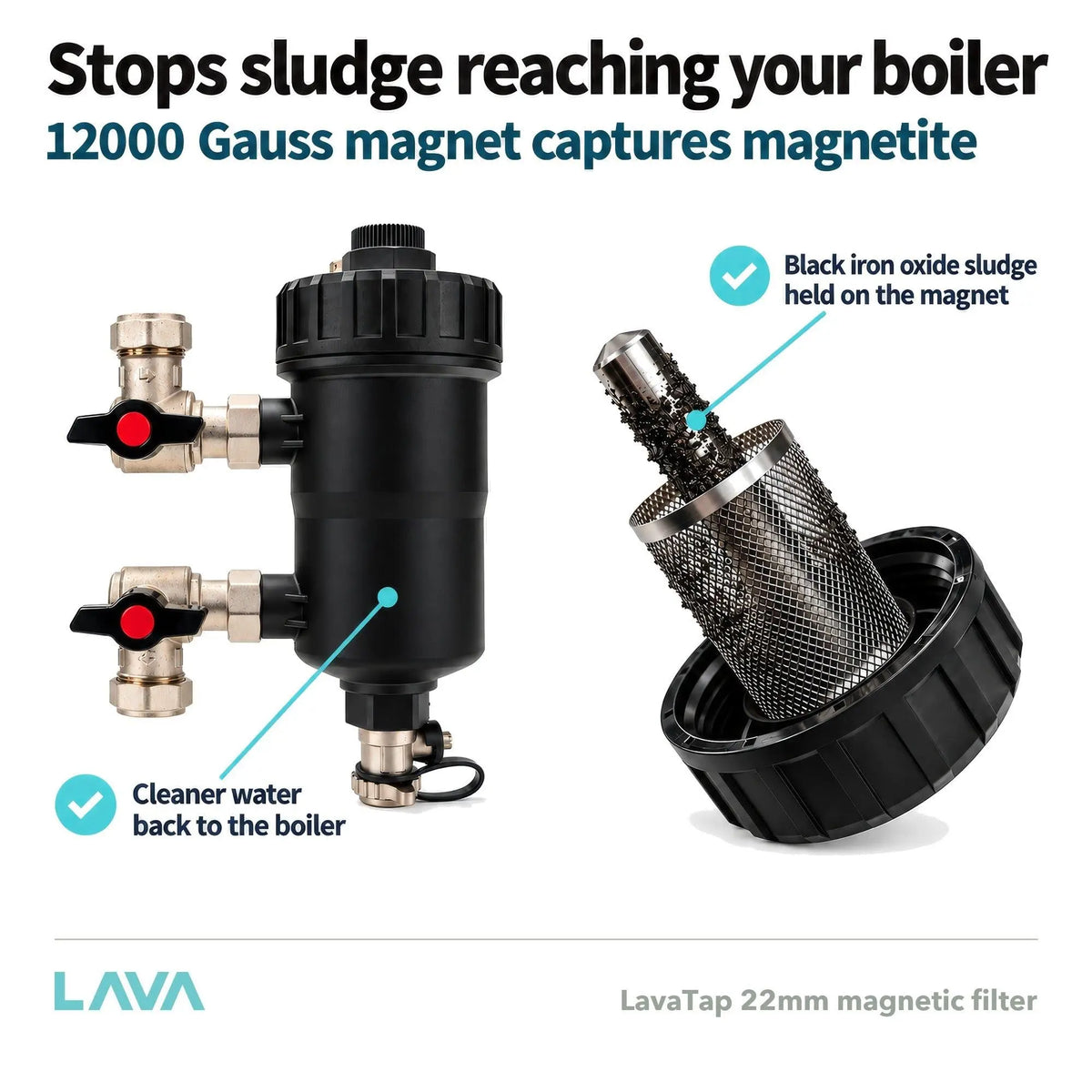

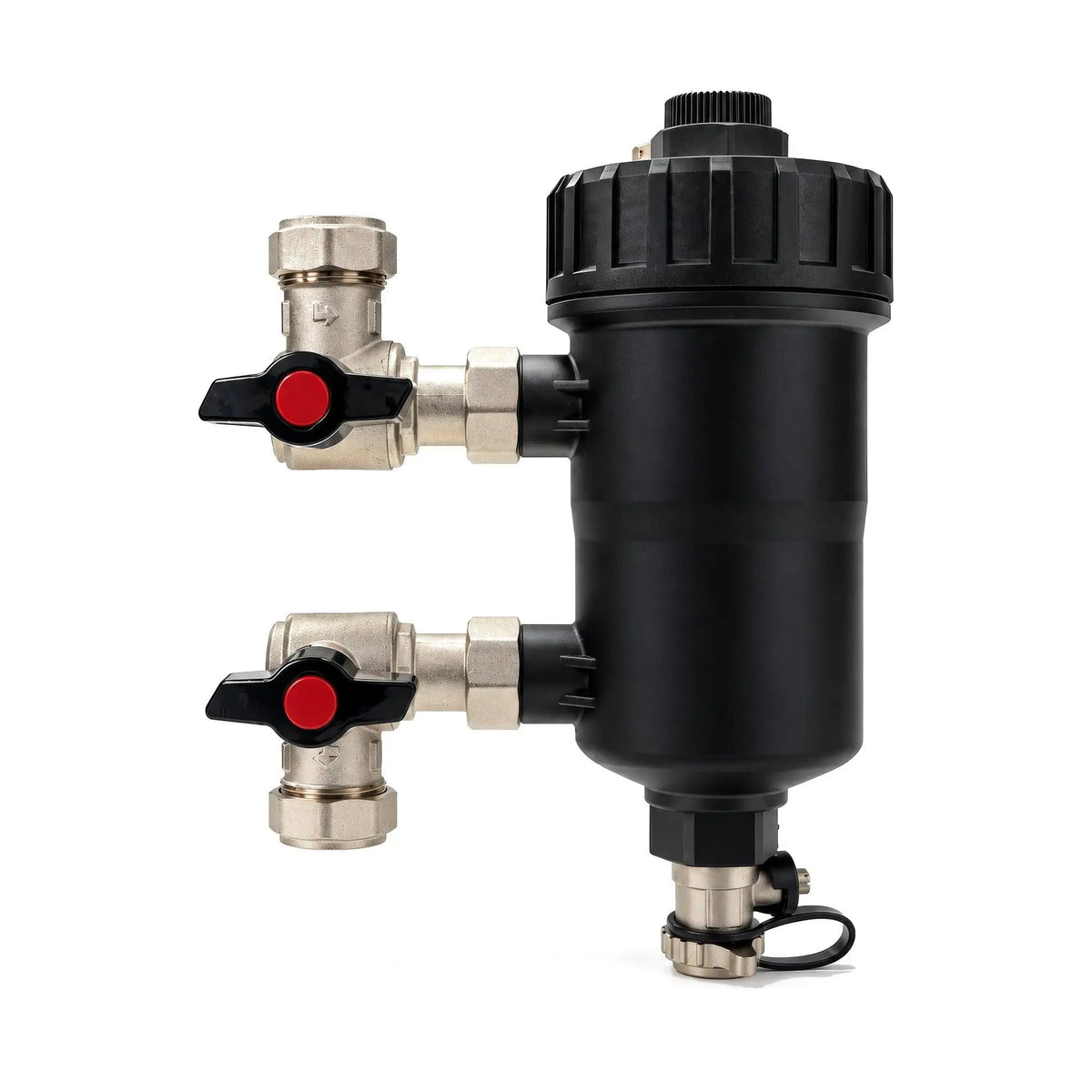

The LavaTap Magnetic Boiler Filter 22mm protects your boiler, pump and radiators by catching the sludge and debris that circulate in a central heating system. Black iron oxide (magnetite) forms as radiators and pipework age, and over time it settles in boiler heat exchangers and pumps. This inline filter removes it before it gets there.

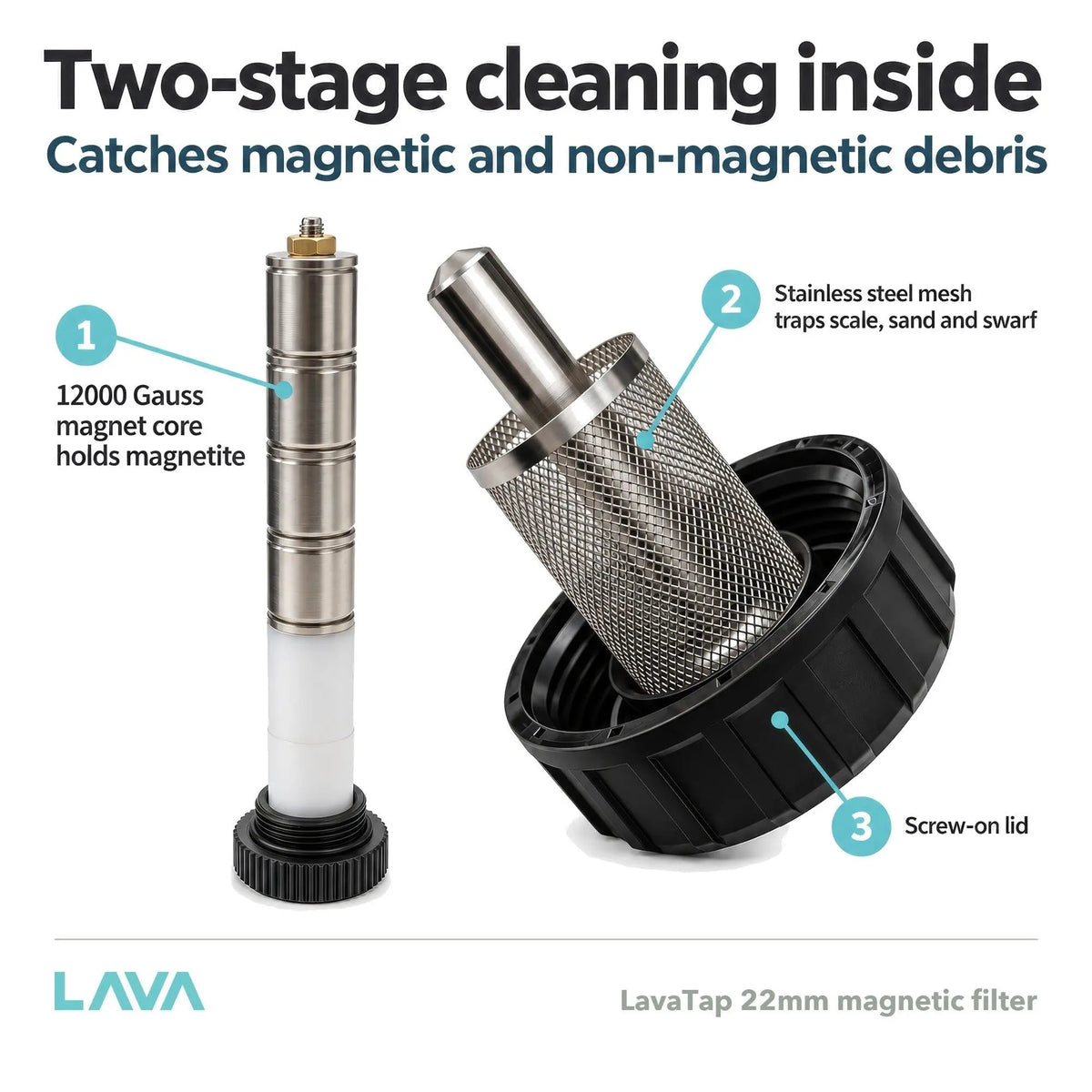

Two-stage cleaning: a 12000 Gauss magnet core holds magnetic sludge, and a stainless steel mesh strainer around the magnet traps non-magnetic debris such as scale, sand, flux and swarf that a magnet alone would miss.

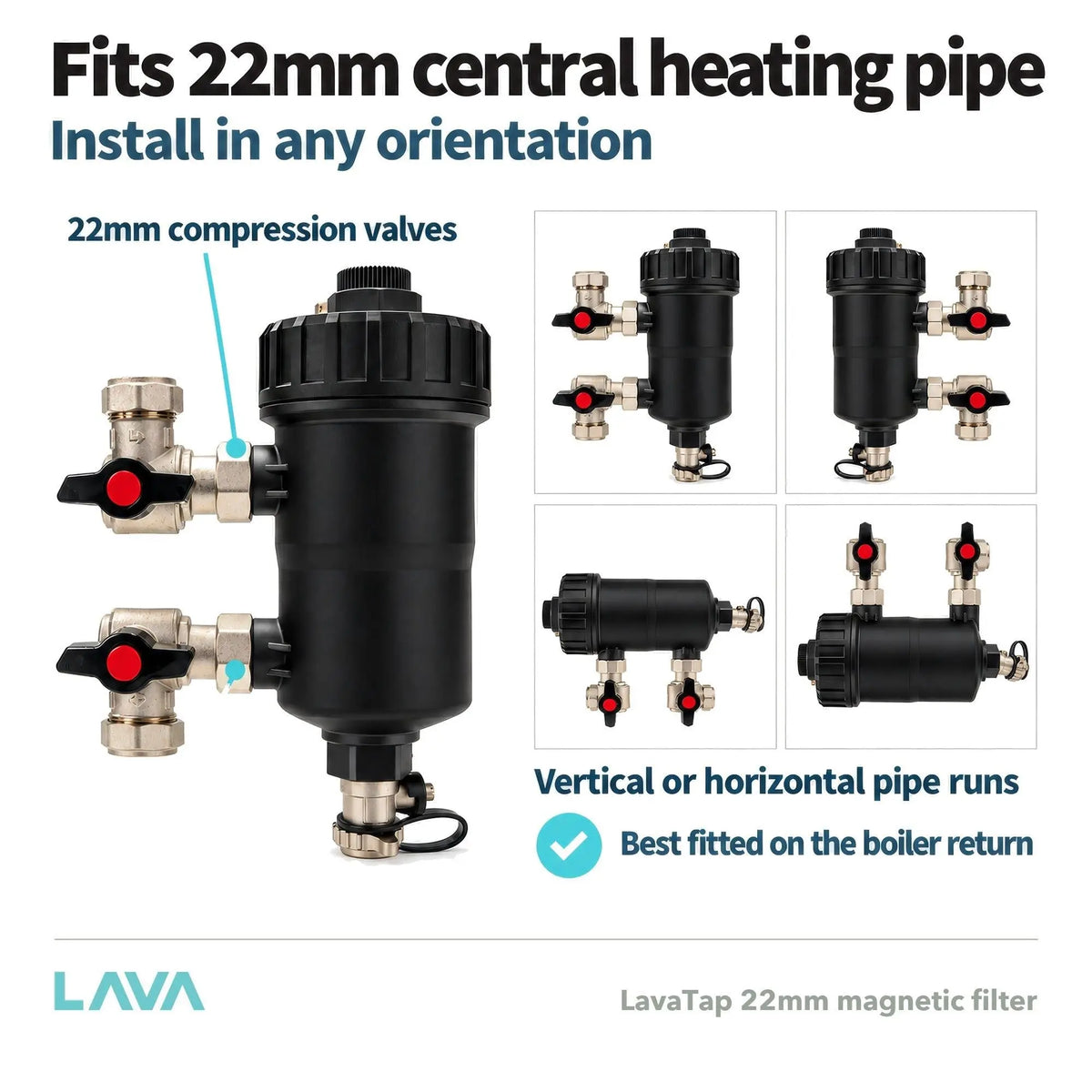

Fitting: the filter connects to 22mm pipework with two 22mm compression elbow isolating ball valves. It can be installed on vertical or horizontal pipe runs in four orientations, and is best fitted on the return to the boiler. Leave enough clearance to remove the lid for servicing.

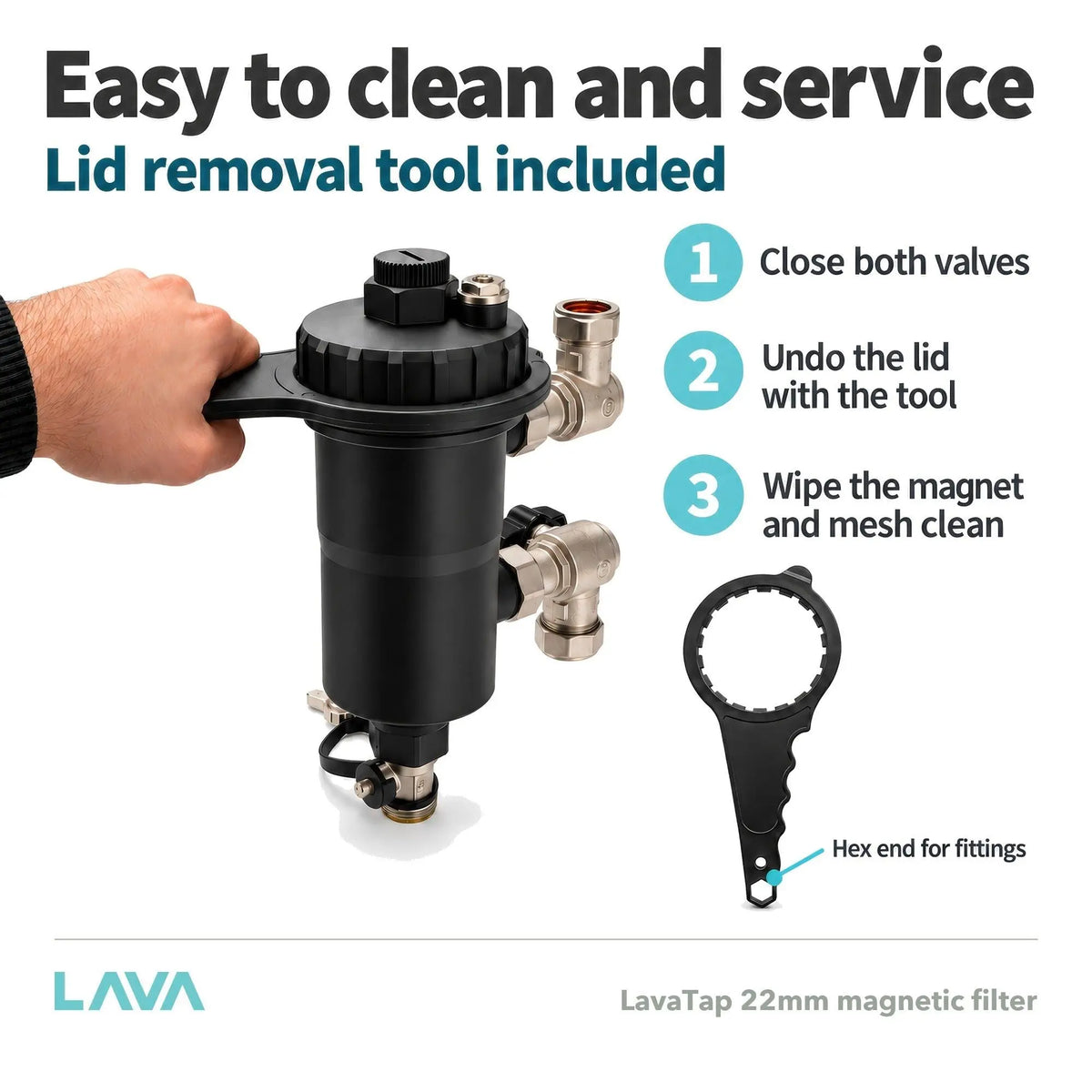

Servicing: close both valves, undo the lid with the supplied tool, and wipe the magnet and mesh clean. The drain valve at the base and the bleed vent on the lid help keep the job tidy.

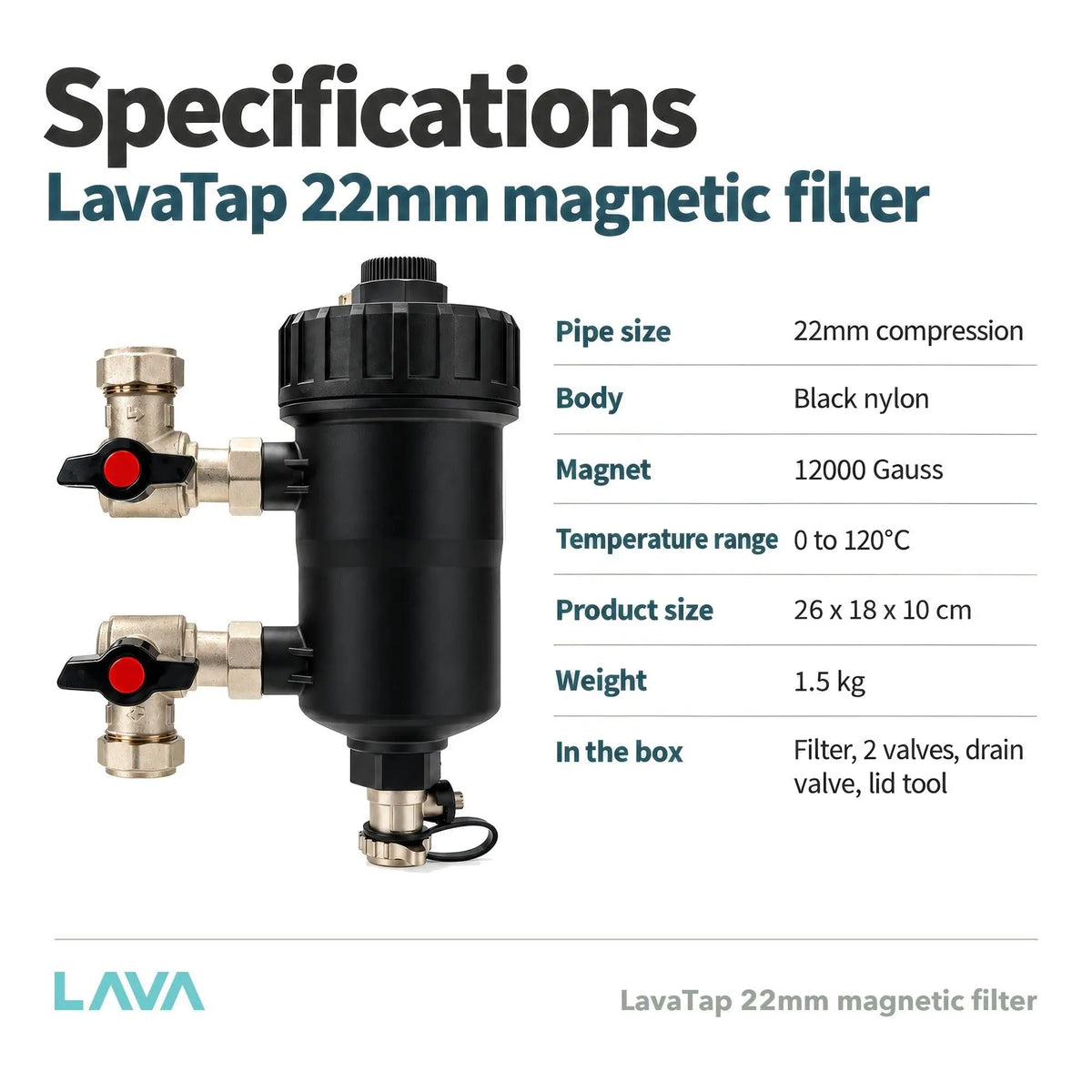

Specification: black nylon body, 12000 Gauss magnet, 0 to 120 degrees C, 26 x 18 x 10 cm, 1.5 kg.

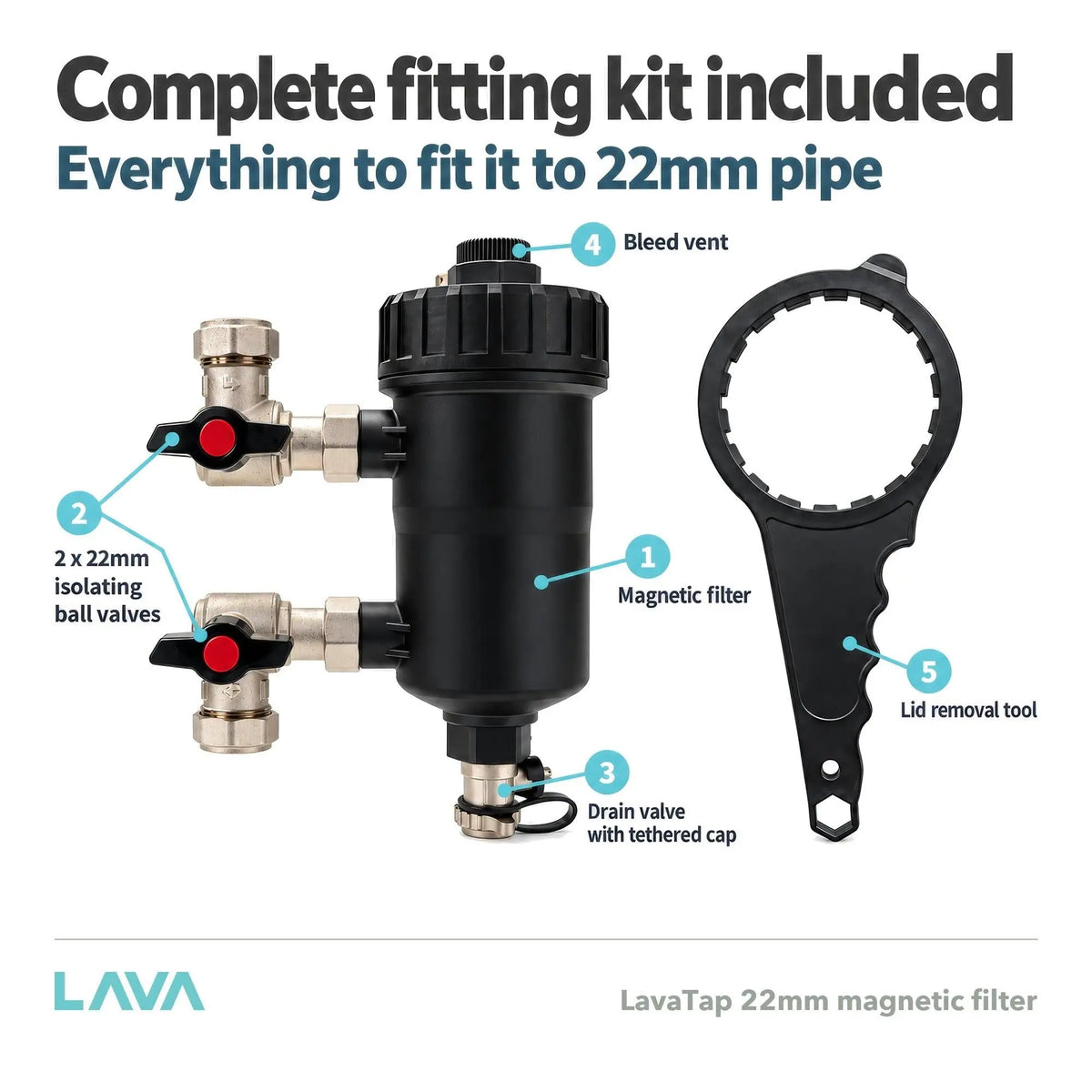

In the box: magnetic filter with stainless mesh strainer, 2 x 22mm compression isolating ball valves, drain valve with tethered cap, bleed vent, lid removal tool.
