An S Plan uses two 2-port motorised zone valves, one for heating and one for hot water. A Y Plan uses a single 3-port mid-position valve that sends flow to the heating, the hot water, or both at once. That one difference drives everything else on the job: the wiring, the fault symptoms, what happens when a valve dies, and whether the system can be zoned to satisfy current Building Regulations.
Below are the seven differences that actually matter on site, how to identify either system in under a minute, and which part to order when the valve is the problem.
In this article
- The 7 differences at a glance
- How do I know if it is an S Plan or a Y Plan?
- How does a Y Plan mid-position valve work?
- How does an S Plan zone valve wire up?
- Which faults mean the valve, and which do not?
- Should you convert a Y Plan to an S Plan?
- Which part do you actually need?
- FAQ
What is the difference between an S Plan and a Y Plan?
Both layouts do the same job: they take flow from a system or regular boiler and share it between the radiator circuit and the hot water cylinder. They just do it with different hardware.
| S Plan | Y Plan | |
|---|---|---|
| 1. Valves | Two 2-port zone valves (Honeywell V4043H pattern) | One 3-port mid-position valve (Honeywell V4073A pattern) |
| 2. How flow is shared | Each circuit opens fully and independently | One valve diverts, or sits mid position to feed both |
| 3. Position with no power | Both valves spring closed | Rests in the hot water position, port B open |
| 4. Wiring | Two separate switched lives proving open, joined at the wiring centre | One powerhead does the logic, white and grey wires set the position |
| 5. Failure mode | One circuit drops out, the other keeps running | One failure can affect heating and hot water together |
| 6. Zoning | Add a valve per zone (S Plan Plus) | Needs re-piping to zone properly |
| 7. Spares | Two bodies and two heads to stock, but the cheaper of the two heads | One body and one head, though the powerhead costs more than a 2-port head |
The short version: a Y Plan is cheaper and quicker to install with fewer components, which is why it went into so many UK homes from the 1980s onwards. An S Plan is more robust, easier to fault-find, and far easier to extend into multiple zones, which is why most new work is piped that way.
How do I know if it is an S Plan or a Y Plan?
Look at the pipework around the hot water cylinder and count the motorised valves.
- Two valve bodies, each with two pipe connections and its own actuator head sitting on top: S Plan.
- One valve body with three pipe connections and a single larger powerhead: Y Plan.
If the valve is boxed in or lagged over, the flex tail settles it. A Honeywell-pattern 2-port valve carries grey, brown, orange, blue and green/yellow. A 3-port mid-position valve carries grey, white, orange, blue and green/yellow. Brown means S Plan. White means Y Plan.
Two other layouts still turn up in older stock. A W Plan uses a 3-port diverter valve that gives hot water priority with no mid position. A C Plan is a gravity hot water system with pumped heating and a single 2-port valve on the heating circuit. Both are far less common than S and Y.

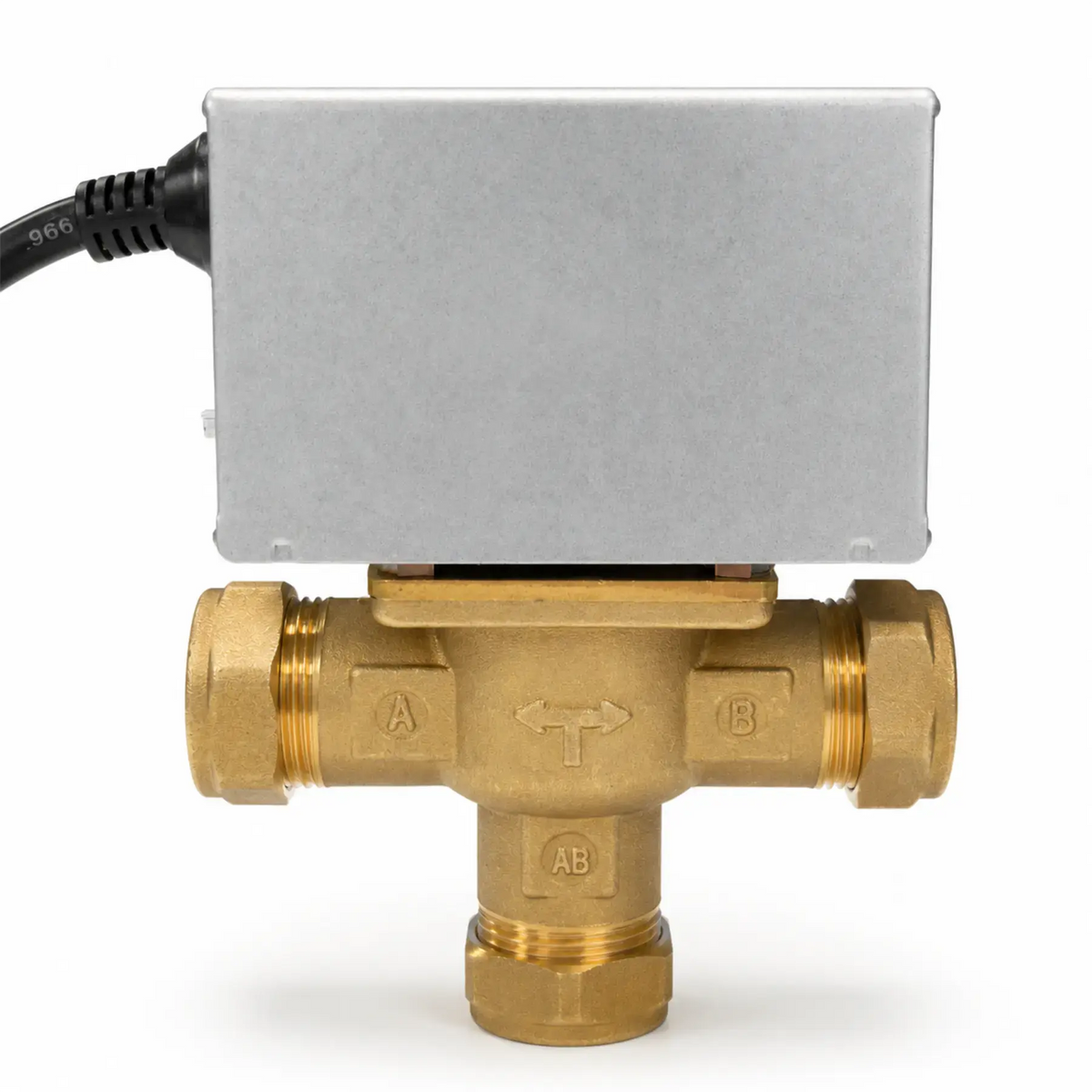

Direct replacement for the Honeywell V4073A1039. Full valve and head, 22mm compression.
How does a Y Plan mid-position valve work?
Flow from the boiler goes into port AB. Port A feeds the radiator circuit and port B feeds the hot water cylinder. The powerhead then drives the valve to one of three positions:
- No power at the valve: it sits in the hot water position with port B open.
- 240V on the white wire: mid position, feeding heating and hot water together.
- 240V on white and grey: port A open, heating only, with a 240V output on the orange wire to fire the boiler.
- 240V on grey alone: the valve is held in its last position.
This is worth knowing because it explains the classic Y Plan complaint. If the head is failing, the valve does not return cleanly and the customer gets radiators warming up when they have only asked for hot water. Always confirm against the manufacturer's own instructions for the exact valve on the wall, since patterns vary between brands.
How does an S Plan zone valve wire up?
A Honeywell-pattern 2-port valve is simpler because there is no mid position to manage:
- Blue: neutral.
- Brown: switched live in from the programmer and stat. This is what pulls the valve open.
- Grey: permanent live feeding the auxiliary microswitch.
- Orange: switched live out once the valve has proved fully open. This fires the boiler and pump.
- Green/yellow: earth.
The orange wire is the boiler interlock in physical form. The boiler cannot fire until a valve has actually opened, which is exactly what Part L asks for. On an S Plan the two orange wires are commonly joined at the wiring centre so either circuit can call the boiler independently.
Replaces the Honeywell V4043H1056. Standard 5-core tail with auxiliary switch, 22mm compression.
Which faults mean the valve, and which do not?
On most call-outs the body is fine and the head has given up. That matters, because a head swap is a 15 minute job with no draining down, and a body swap is not.
- Buzzing or humming, but the system still works: the synchronous motor is on its way out. Replace the head.
- Stat calls but the boiler never fires: check for 240V on the orange wire with the valve open. No output means the auxiliary microswitch is not making. Replace the head.
- Radiators heating when only hot water is called (Y Plan): the valve is not returning. Usually the head, sometimes a worn ball or seized spindle in the body.
- Valve open permanently: check the manual lever first. If it has been left latched open, the valve will never close.
- Valve open, but the circuit is cold: not the valve. Look at the pump, the bypass, and how much sludge is in the system.
That last symptom comes up more than people expect. If a system is full of magnetite the valve gets blamed for what is really a circulation problem, and the new valve fails just as quickly. If the water coming out is black, clean and inhibit it properly before you sign off. Our 7-step cleaner and inhibitor order covers the sequence, and there is a step-by-step walkthrough for replacing a Drayton MA1 actuator head if that is the head on the wall.
Should you convert a Y Plan to an S Plan?
Converting is a real job: a second 2-port valve, altered pipework at the cylinder, and a rewire at the wiring centre. It is worth doing when the customer wants genuine zoning, when they are fitting smart controls that want separate heating and hot water channels, or when a big house is being heated as one lump.
It is not worth doing purely because a valve has failed. A like-for-like 3-port replacement is cheaper and quicker, and a healthy Y Plan controls a small to average house perfectly well.
Keep the regulations in view either way. Under Approved Document L, new dwellings with a wet heating system and a floor area of 150m² or more should have at least two independently controlled heating circuits, with an exception for single-storey open-plan homes where the living area exceeds 70% of the floor area. Separately, Boiler Plus has applied in England since April 2018: every gas boiler installation needs time and temperature control, and a combi needs one additional efficiency measure on top. Always check the current requirements for the specific job rather than working from memory.
Which part do you actually need?
Diagnose before you order. If the body is sound, buy the head and keep the water in the system. A head is always the cheaper part and always the faster fit.
Head only for the Honeywell V4043H1056. The quickest fix when the body is sound.
Head only for the Honeywell V4073A1039 mid-position valve.
The full range, including Drayton, Danfoss, Banico and Secure bodies and heads, sits in Motorised Valves & Actuators.
